ASUS PRIME Z270-A Intel Z270 (Socket 1151) ATX Motherboard

i7 / i5 / i3 (7th Gen), ATX, DDR4, 2x USB3.1 Gen 2(Type A+C), 6x USB 3.1 Gen 1, 6x SATA3, 2x M.2 Slots, 3x PCIe 3.0x16, 2/4-way SLI/ 3/4-way crossfire

ASUS PRIME Z270-A Intel Z270 Socket 1151 ATX Motherboard
Dispatches within 1 - 3 Days question tooltip

£149.50 inc vat

£124.58 ex vat

payment cards

Order Code: ASU-Z27PA

Manf.Code: PRIME Z270-A

What our customers say about us

Express Delivery

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

ASUS PRIME Z270-A Intel Z270 (Socket 1151) ATX Motherboard overview

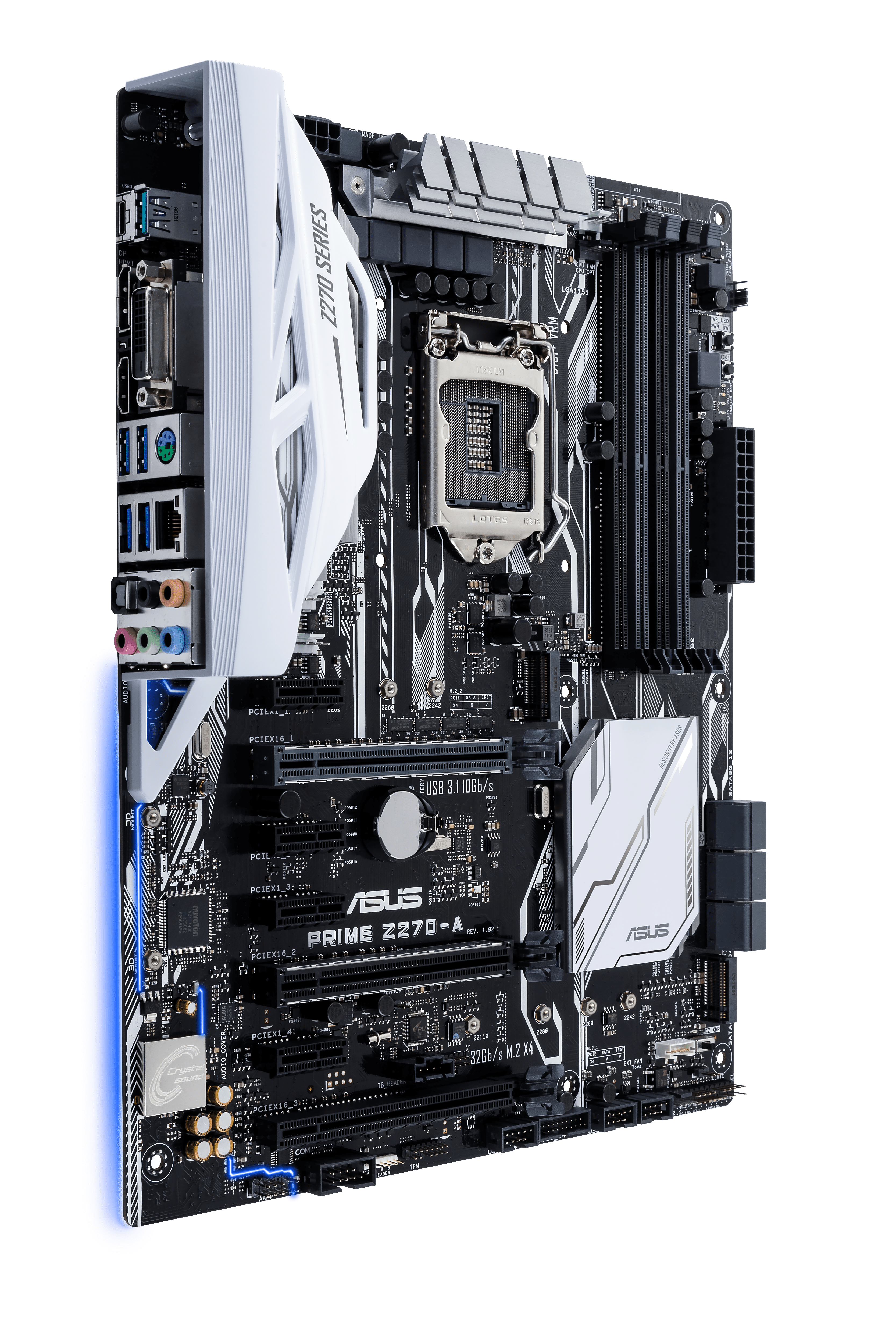

PRIME Z270-A

ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.



POWER AT YOUR FINGERTIPS

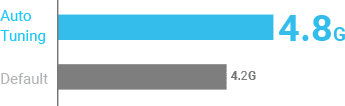

ONE-CLICK OVERCLOCK AND COOLING

Get performance, efficiency, digital power, fan control and even networking audio tuning tailored for you

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of your system based on real-time usage — so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans, and now networking and audio settings that are tailored to your apps. In short, 5-Way ASUS Optimization ensures that your PC is perfect for gaming, entertainment and productivity!

  • • Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
  • • Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
  • • Stutter is eliminated for smooth-running apps, even under heavy loading.
  • • Energy waste is reduced so you'll save money.

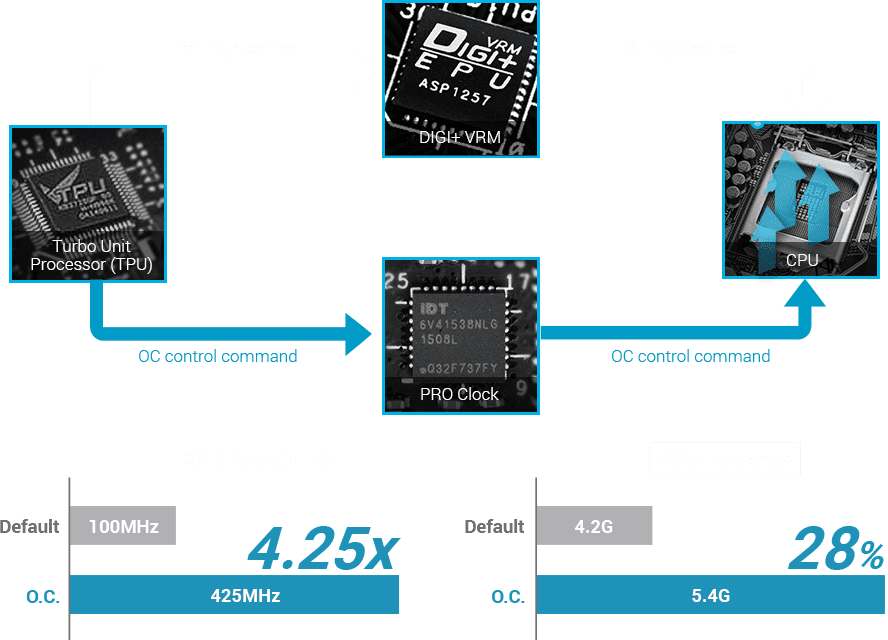

Overclock CPU

A dedicated base-clock generator designed for 7th Generation Intel® processors allows overclocked base clock frequencies up to or beyond 425MHz*. This custom solution works in tandem with the ASUS TurboV processing unit to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.

Advantages of Pro Clock

  • Reduced boot time
  • Lower jitter under extreme conditions for overclocks
  • Increased stability under heavy overclocking

*BCLK overclocking range will vary according to CPU capabilities, cooling, motherboard support and tuning options. Ranges up to 650MHz are possible under select conditions.

Testing configuration:
Intel® LGA 1151 i7-7700K | PRIME Z270-A | Corsair DDR4 3200 4G*4 | Corsair H110i | Windows 10

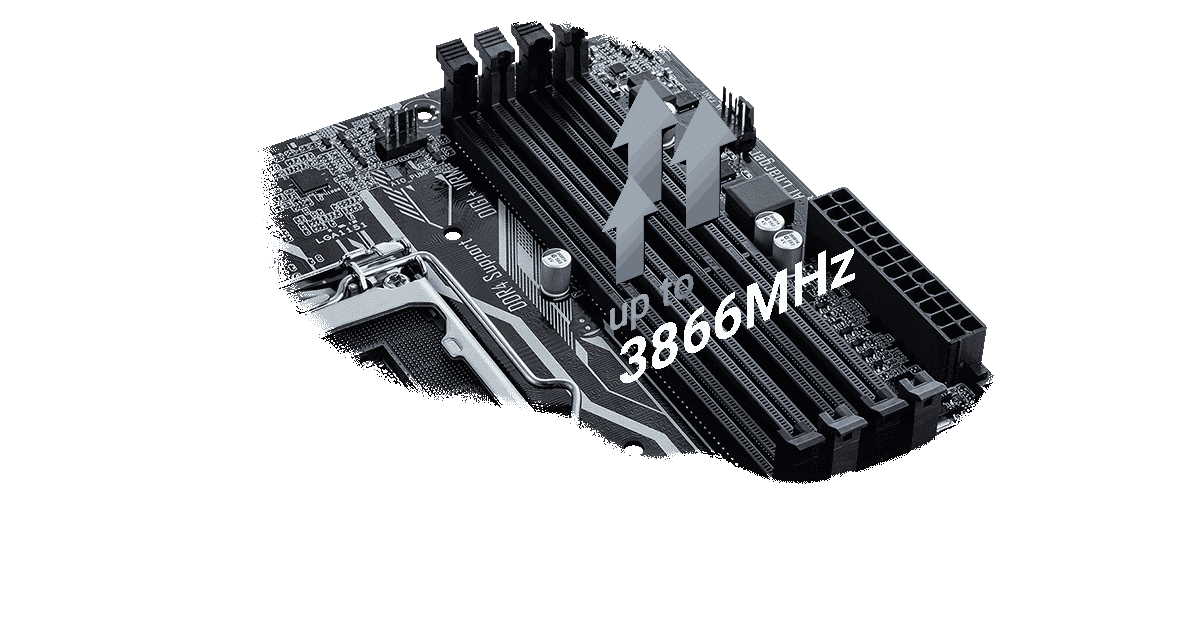

DDR4 OVERCLOCKING STRENGTH IN NUMBERS

Third-generation ASUS T-Topology allows memory frequencies that are higher than ever — to 3866MHz and beyond. Refined manufacturing ensures ultra-consistent quality and minimal crosstalk between custom trace paths, so you'll enjoy the thrill of overclocking DDR4 with time-aligned signaling for superior stability and compatibility.

HARDWARE UPGRADE ZONE

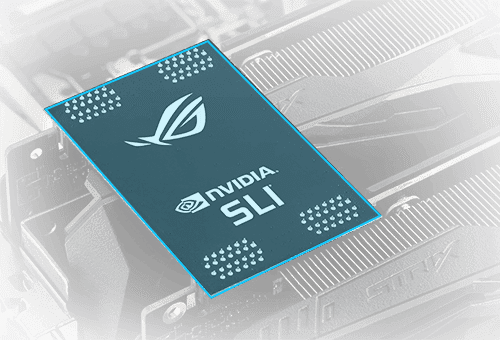

SLI HB Bridge (2-WAY-M)

The new ASUS SLI HB bridge doubles the available transfer bandwidth to provide silky-smooth surround gaming. Compatible with NVIDIA® Titan X, GeForce GTX 1080 and GeForce GTX 1070 graphics cards, SLI HB bridge is your fast track to gaming greatness.

OUTSHINE THE COMPETITION

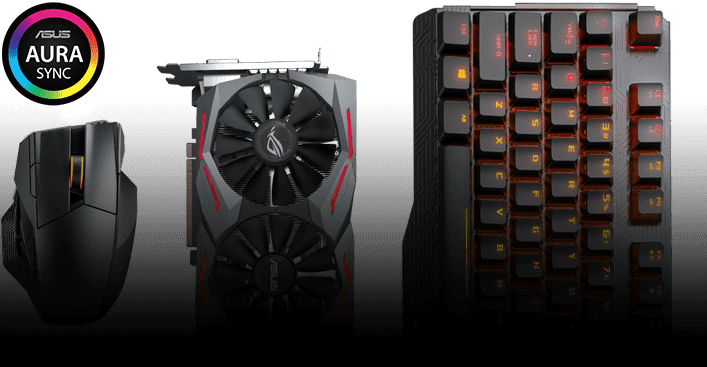

ASUS Aura Sync technology for distinctive lighting effects

Aura Sync takes RGB lighting beyond the checkbox, combining and controlling the LEDs of your Aura-enabled products from a single application — so you can achieve perfect, synchronized lighting harmony. Aura lets you sync light effects across your graphics card, Prime Z270-A motherboard, and an ever-growing portfolio of Aura-enabled products.

OS Support

The Asus Z270 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
  • Windows® 8.1 64-bit*
  • Windows® 7*

  • *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
CPU
Socket Intel® 1151 for 7th / 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Architecture 14nm CPU
Intel turboboost technology 2.0 Supported (Dependent on CPU Type)
Chipset Intel Z270 Chipset

Memory
Memory Slots 4 DIMM / 64GB Max DDR4
Memory Support DDR4 2133, 2400(O.C) - 3733(O.C) Un-buffered memory
ECC No
Channels Dual Channel Architecture
XMP Support Yes

Expansion
Expansion Slots 2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
4 x PCI Express 3.0/2.0 x1 slots

VGA
Integrated Graphics Processor Intel HD Graphics Support
Multi-VGA Output Support DisplayPort/HDMI/DVI-D ports
HDMI 1.4b Yes (With max resolution 4096 x [email protected] / 2560 x [email protected]
DisplayPort 1.2 Yes (With max resolution 4096 x [email protected]
DVI-D Yes (With max resolution 1920 x [email protected]
Multi GPU Support 2/4 Way NVIDIA SLI (with 2 PCIex16 graphics card)
3/4 Way AMD CrossfireX
Storage Connectivity
Sata 6 x SATA 6Gb/s ports
M.2 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
Optane Memory Intel Optane Memory Support

Note: Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

Ports & Connectivity - External IO Panel
Ports Present & Quantity 1 x DisplayPort
1 x HDMI port
1 x DVI-D
1 x Optical S/PDIF out
1 x Intel LAN (RJ45) port
1 x USB 3.1/3.0/2.0 ports (teal blue, Type A)
1 x USB 3.1/3.0/2.0 ports (Type C)
4 x USB 3.0/2.0 ports (blue)
8-channel Audio I/O ports

Ports & Connectivity - Internal IO
Ports Present & Quantity 1 x USB 3.0/2.0 connectors support additional 2 USB ports (19-pin)
3 x USB 2.0/1/1 connectors support additional 6 USB ports
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 devices, PCIE mode)
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices, PCIE & SATA mode)
6 x SATA 6.0Gb/s connectors (gray)
1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
1 x CPU OPT Fan header (4-pin)
1 x AIO Pump header (4-pin)
1 x High AMP Fan header (4-pin)
2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support
1 x Aura RGB Strip header
2 x 3D Mount screw ports
1 x Front panel audio connector (AAFP)
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x TPM connector
1 x COM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel(Q-Connector)
1 x MemOK! button
1 x Power-on button
1 x CPU OV jumper
1 x Clear CMOS header
1 x Thermal Sensor header
1 x EZ XMP switch
1 x 5-pin EXT_FAN(Extension Fan) connector

Accessories
Accessories 3 x Serial ATA 6.0Gb/s cables
1 x SLI HB BRIDGE(2-WAY-M)
1 x ASUS Q-Shield
1 x Q-connector
1 x M.2 screw package
1 x CPU Installation Tool
1 x user's manual


Software
Software Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System Support
OS Windows® 10 64-bit
Windows® 8.1 64-bit*
Windows® 7*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
Physical
Form Factor ATX
Dimensions 12”x 9.6” (30.5cm x 24.4cm)
