ASUS TUF Sabertooth Z270 MARK 1 Intel Z270 (Socket 1151) ATX Motherboard

i7 / i5 / i3 (7th Gen), ATX, DDR4, 6x USB 2, 6x USB 3.0, 6x SATA 3, 2x USB 3.1, 2 x M.2 Slots, 3 x PCIe 3.0x16, 2/4-way Nvidia SLI/ 3/4-way crossfire

ASUS TUF Sabertooth Z270 MARK 1 Intel Z270 Socket 1151 ATX Motherboard
49 in stock question tooltip

£205.98

£154.98 inc vat

£129.15 ex vat

You save £51.00

payment cards

Order Code: ASU-Z27T1

Manf.Code: TUF Z270 MARK 1

What our customers say about us

Express Delivery

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

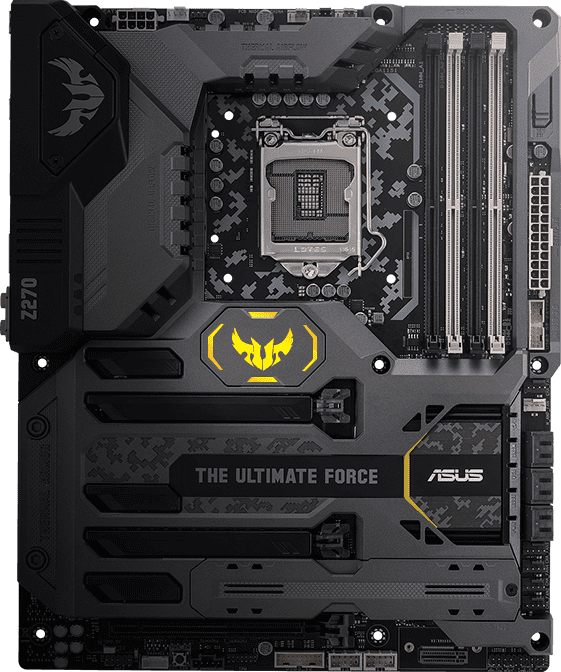

ASUS TUF Sabertooth Z270 MARK 1 Intel Z270 (Socket 1151) ATX Motherboard overview

TUF-Z270-MK1


TOUGH INSIDE AND OUT

TOTAL STABILITY
GUARANTEED COMPATIBILITY

TUF is where ambition for reliably brilliant performance meets reality. When you build a system using the TUF Z270 Mark 1 motherboard, you build with the confidence of total stability and guaranteed compatibility. Whether you want to work or mod, be sure to build on a solid foundation with The Ultimate Force — that's TUF!

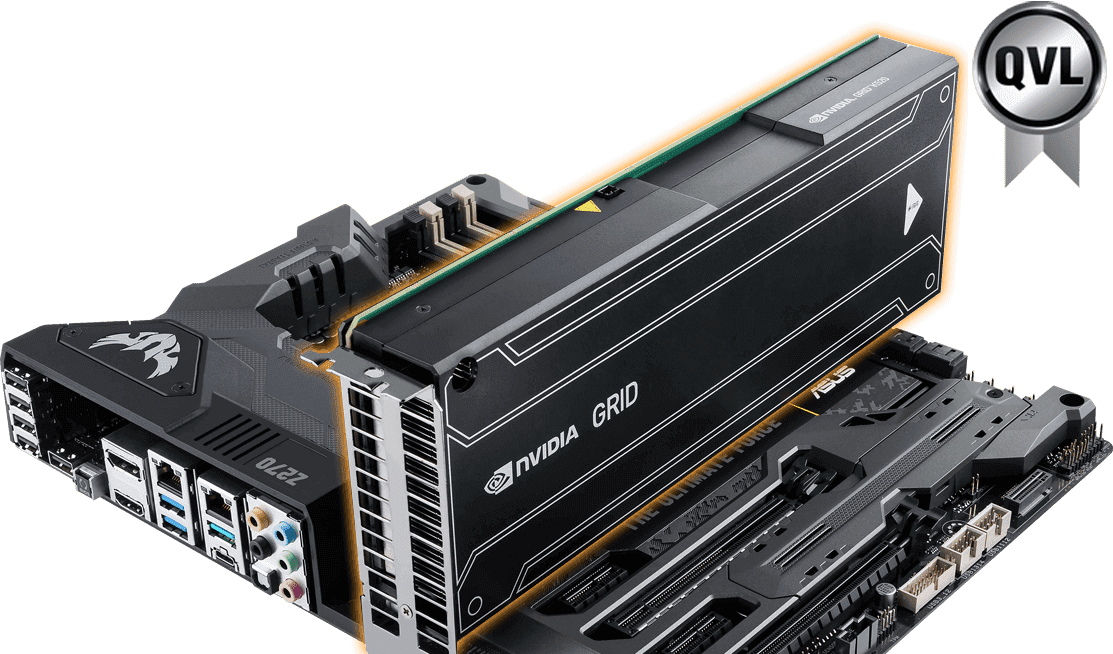

QUALIFIED VENDOR LIST (QVL)

TUF Z270 Mark 1 is carefully engineered to work seamlessly with a wide range of high-performance workstation graphics cards. The ASUS promise of great compatibility is backed by our comprehensive Qualified Vendor List that includes leading brands and products — so you can be certain of compatibility before you buy that perfect graphics card.

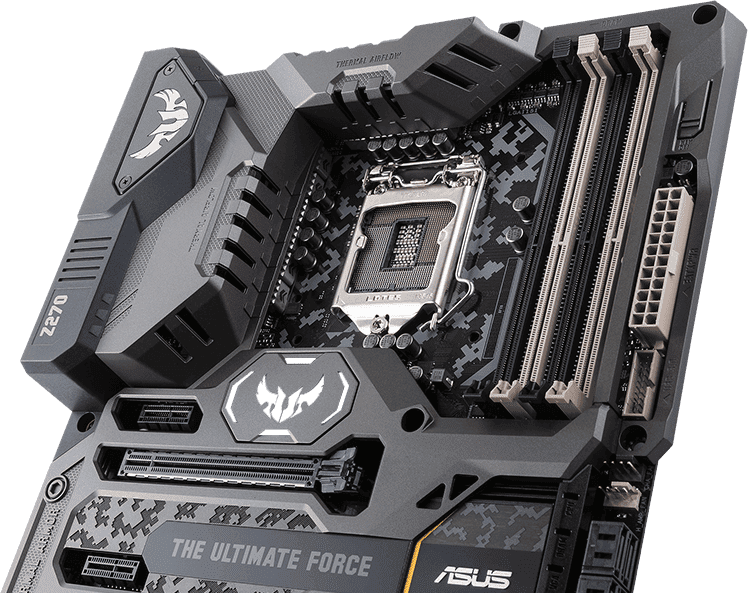

BRIGHTEN UP YOUR BUILD

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync technology offers full RGB lighting control with a variety of exciting presets for onboard LED illumination. Each preset can be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

OUTSHINE THE COMPETITION

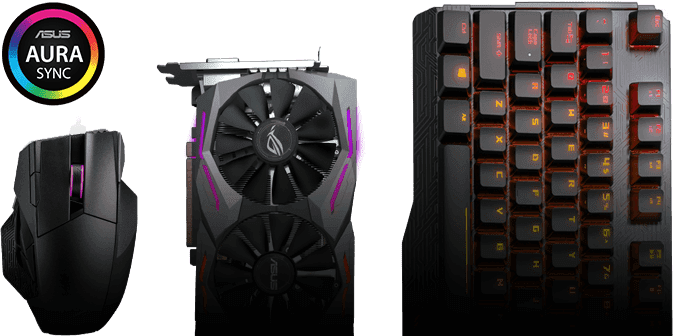

ASUS Aura Sync technology for distinctive lighting effects

Aura Sync takes RGB lighting beyond the checkbox, combining and controlling the LEDs of your Aura-enabled products from a single application — so you can achieve perfect, synchronized lighting harmony. Aura lets you sync light effects across your graphics card, TUF Z270 Mark 1 motherboard, and an ever-growing portfolio of Aura-enabled products.

OVERCLOCKING DESIGN

Engineered for maximum memory acceleration

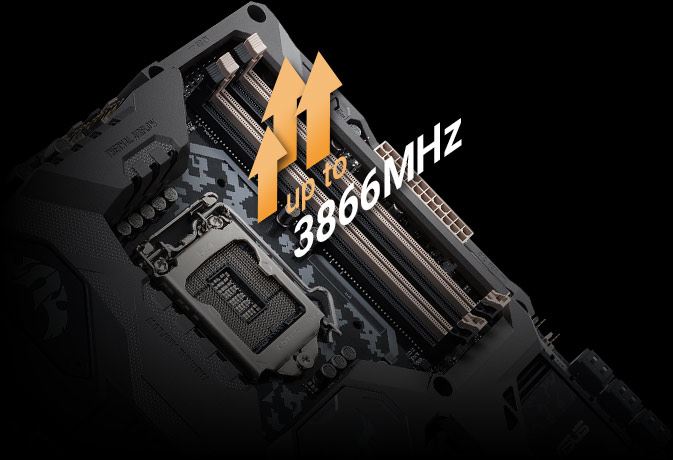

Implementing a new engineering-intensive DRAM layout, the third-generation ASUS T-Topology delivers new DDR4-overclocking dynamics that let you push memory frequencies further than ever — all the way up to 3866MHz if all memory slots are being utilized!

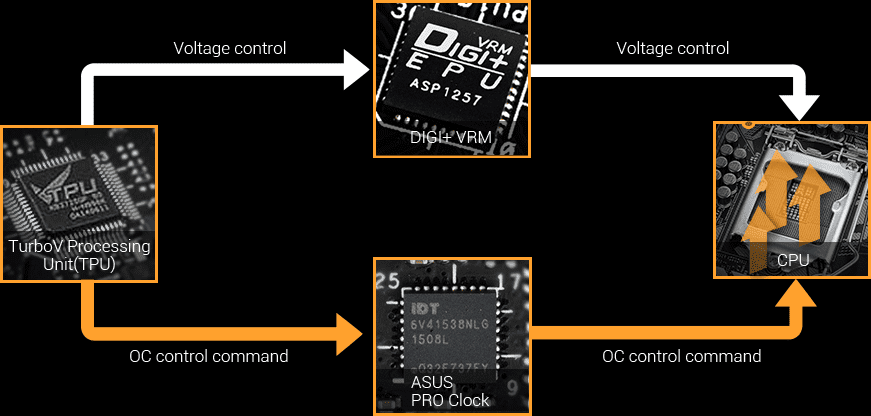

ASUS PRO Clock technology

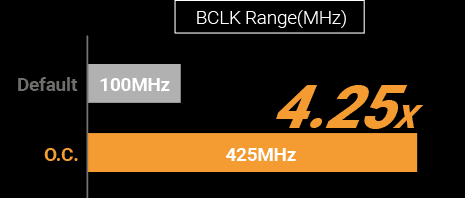

Pro Clock is an ASUS-exclusive base-clock generator that lets you push base-clock frequencies up to 425MHz* with 7th Gen Intel CPUs — so you can take your TUF system performance to extreme heights.

* Testing configuration:
Intel Core i7-7700K I TUF Z270 Mark 1 I DDR4 Corsair 3200 4G x 4 I Corsair H100i I Windows 10

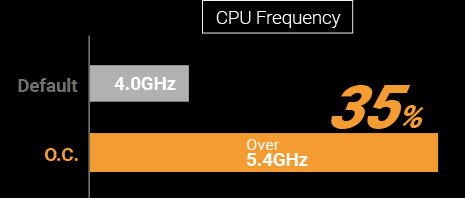

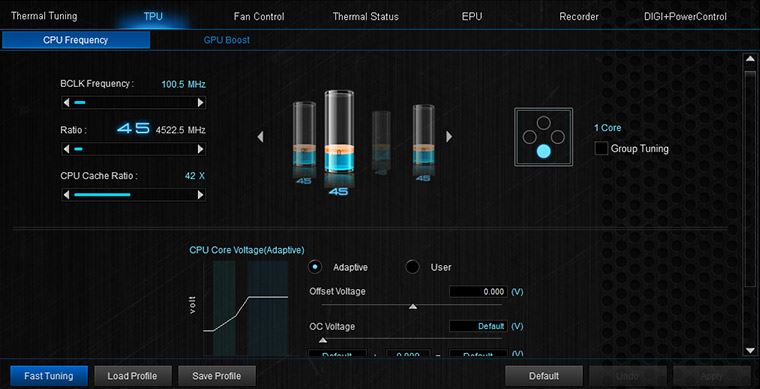

ONE CLICK TO OVERCLOCK

You don't need to be a technical expert to experience exhilarating overclocking performance with TUF Z270 Mark 1, because Thermal Radar 2+ now incorporates the TurboV Processing Unit (TPU) for efficient operation with precise voltage control and monitoring — all managed with a single click!

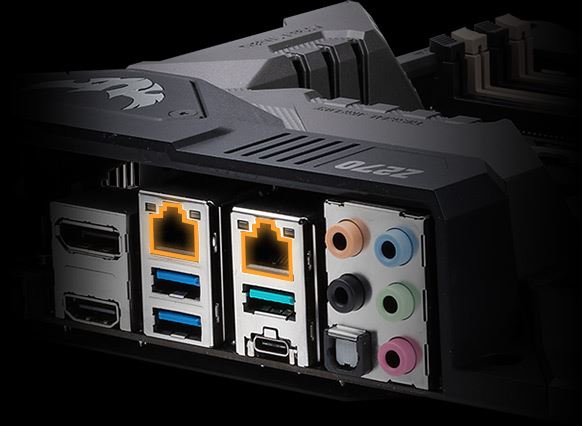

DUAL INTEL GIGABIT LAN

Don't let slow networking disrupt your workflow! With dual Intel® Gigabit Ethernet connectors, TUF Z270 Mark 1 keeps your data moving swiftly and efficiently. With both LAN ports teamed* you'll benefit from increased bandwidth for more speed, automated load balancing for smoother data flows, and instant failover if something should go wrong — so access to your files is always fast, efficient and uninterrupted.

*Teaming supported by Windows 7 or 8.1 and dual Intel Ethernet only.

24/7 RELIABILITY


You demand 24/7 reliability — and we've delivered! TUF motherboards undergo the industry's most punishing tests to ensure they're ready for long-term duty in any environment. In our tests we overheat them, chill them, bend them, shock them and drop them — so you know that your TUF motherboard is certified for 24/7 reliability!


5-YEAR WARRANTY
GUARANTEED RELIABILITY

*The service will follow the local standard and service policy.

OS Support

The Asus Z270 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
  • Windows® 8.1 64-bit*
  • Windows® 7*

  • *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
CPU
Socket Intel® 1151 for 7th / 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Architecture 14nm CPU
Intel turboboost technology 2.0 Supported (Dependent on CPU Type)
Chipset Intel Z270 Chipset

Memory
Memory Slots 4 DIMM / 64GB Max DDR4
Memory Support DDR4 2133, 2400(O.C) - 3866(O.C) Un-buffered memory
ECC No
Channels Dual Channel Architecture
XMP Support Yes

Expansion
Expansion Slots 2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)
1 x PCI Express 3.0/2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
3 x PCI Express 3.0/2.0 x1 slots

VGA
Integrated Graphics Processor Intel HD Graphics Support
Multi-VGA Output Support DisplayPort/HDMI port
HDMI 1.4b Yes (With max resolution 4096 x [email protected]
DisplayPort 1.2 Yes (With max resolution 4096 x [email protected]
Multi GPU Support 2 Way/4 Way NVIDIA SLI
3 Way/ 4 Way AMD CrossfireX
Storage Connectivity
Sata 6 x SATA 6Gb/s ports
M.2 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x4 mode)
1 x vertical M.2_2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
Optane Memory Intel Optane Memory Support

Note: Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

Ports & Connectivity - External IO Panel
Ports Present & Quantity 1 x DisplayPort
1 x HDMI port
1 x TUF Detective USB port
1 x USB BIOS Flashback Button
1 x Optical S/PDIF out
2 x LAN (RJ45) ports
1 x USB 3.1/3.0/2.0 port (teal blue, Type A)
1 x USB 3.1/3.0/2.0 port (Type C)
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports (black, one supports USB BIOS Flashback)
8-channel Audio I/O ports

Ports & Connectivity - Internal IO
Ports Present & Quantity 2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1/1 connectors support additional 4 USB ports
1 x M.2_1 Socket 3 (for M Key, type 2242/2260/2280/22110 devices)
1 x vertical M.2_2 Socket 3 (for M Key, type 2242/2260/2280 devices)
6 x SATA 6.0Gb/s connectors
1 x CPU Fan connector (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
1 x CPU OPT Fan connector (4-pin)
1 x W_Pump+ header (4-pin)
5 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
1 x H_AMP_FAN (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) control
1 x Assistant Fan connectors (4-pin)
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x TPM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel(Q-Connector)
1 x COM port
1 x MemOK! button
1 x Clear CMOS jumper
3 x T_Sensor (Thermal Sensor) headers
1 x 5-pin EXT_FAN(Extension Fan) connector

Accessories
Accessories 1 x M.2 screw
4 x Serial ATA 6Gb/s cables
1 x SLI HB BRIDGE(2-WAY-M)
1 x ASUS Q-Shield
1 x 2 in 1 Q-connector
1 x vertical M.2 bracket set
1 x TUF Accessory Package
- 2 x PCIe x16 slot dust covers
- 3 x PCIe x1 slot dust covers
1 x CPU Installation Tool
1 x TUF INSIDE sticker
1 x TUF Certification card
1 x TUF 5 Year Warranty manual (by region)
User's manual

Software
Software Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)


Operating System Support
OS Windows® 10 64-bit
Windows® 8.1 64-bit*
Windows® 7*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
Physical
Form Factor ATX
Dimensions 12”x 9.6” (30.5cm x 24.4cm)
