B-STOCK ITEM 90 DAYS WARRANTY GIGABYTE AORUS Z270X-GAMING 8 Intel Z270 (Socket 1151) ATX Motherboard

i7 / i5 / i3 (7th Gen), ATX, DDR4, 2 x USB3.1, 9 x USB3, 4 x USB2, 8 x SATA3, 3 x SATAe, 2 x M.2, 2 x U.2, 4 x PCIe x16, 2 x PCIe x1, SLI/Crossfire

B-STOCK ITEM 90 DAYS WARRANTY GIGABYTE AORUS Z270X-GAMING 8 Intel Z270 Socket 1151 ATX Motherboard
1 in stock question tooltip

£374.99

£265.82 inc vat

£221.52 ex vat

You save £109.16

payment cards

Order Code: B-Z27G8

Manf.Code: B-GA-Z270X-GAMING 8

What our customers say about us

Express Delivery

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

B-STOCK ITEM 90 DAYS WARRANTY GIGABYTE AORUS Z270X-GAMING 8 Intel Z270 (Socket 1151) ATX Motherboard overview

Some Signs Of Use, Motherboard & accessories. Warranty - 90 Days

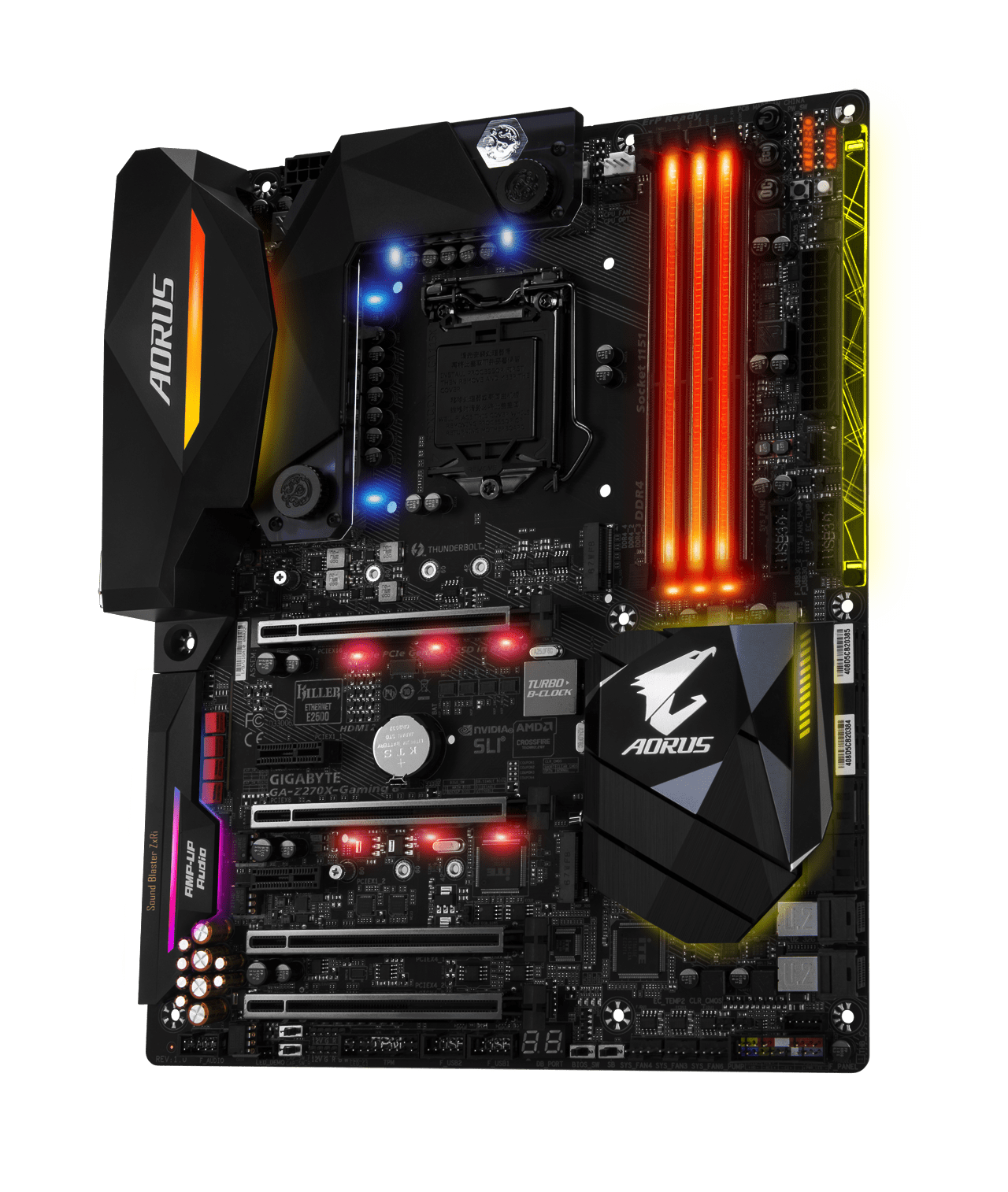

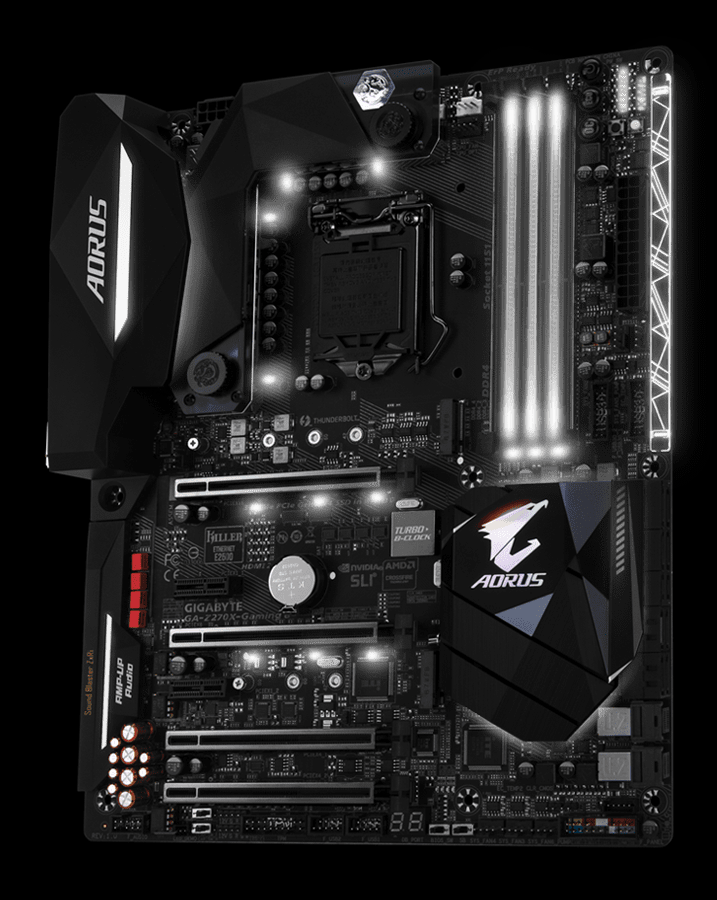

AORUS Z270X-GAMING 8 LGA-1151


Why Buy?

  1. • Supports 7th/6th Generation Intel® Core™ Processors
  2. • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  3. • Intel® USB 3.1 Gen 2 with USB Type-C™ and Type-A
  4. • 2-Way SLI/ 3 way CrossFire Graphics Support
  5. • Bitspower G-Chill Hybrid Water Block
  6. • Triple NVMe PCIe SSDs in RAID 0 Support
  7. • Dual NVMe PCIe Gen3 x4 U.2 Connectors
  8. • Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
  9. • Intel® Optane™ Memory Ready
  10. • Creative Sound Blaster certified ZxRi 120+dB Audio
  11. • Killer DoubleShot-X3™ Pro for the best networking experience possible
  12. • USB DAC-UP 2 with Adjustable Voltage
  13. • RGB FUSION with Multi-Zone LED Light Show design
  14. • Swappable Overlay for Accent LED
  15. • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  16. • 2 External Thermistors Headers With 2 Included Thermistors
  17. • Extreme 40 Gb/s Thunderbolt™ 3
  18. • Integrated HDMI 2.0 support
  19. • GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
  20. • APP Center Including EasyTune™

Bitspower G-Chill Hybrid Water Block


AORUS and Bitspower have teamed up to create a superior performance hybrid water block featuring a high-flow pure copper water channel that’s placed directly over VRMs for superior cooling. G1/4” threaded fittings ensure compatibility with any setup you plan to create.


RGB FUSION



Multi-Zone Light Show Design

• 16.8M RGB Colors
• 6 Light Zones
• 8 Programmable Sections
• 8 Different Lighting Effects
• 2 RGBW Light Strip Pin Headers
• Accent LED with Interchangeable Overlay
• Advanced Mode for Extreme Customizability

Lighting zone, programmable sections, wave mode may vary by model.

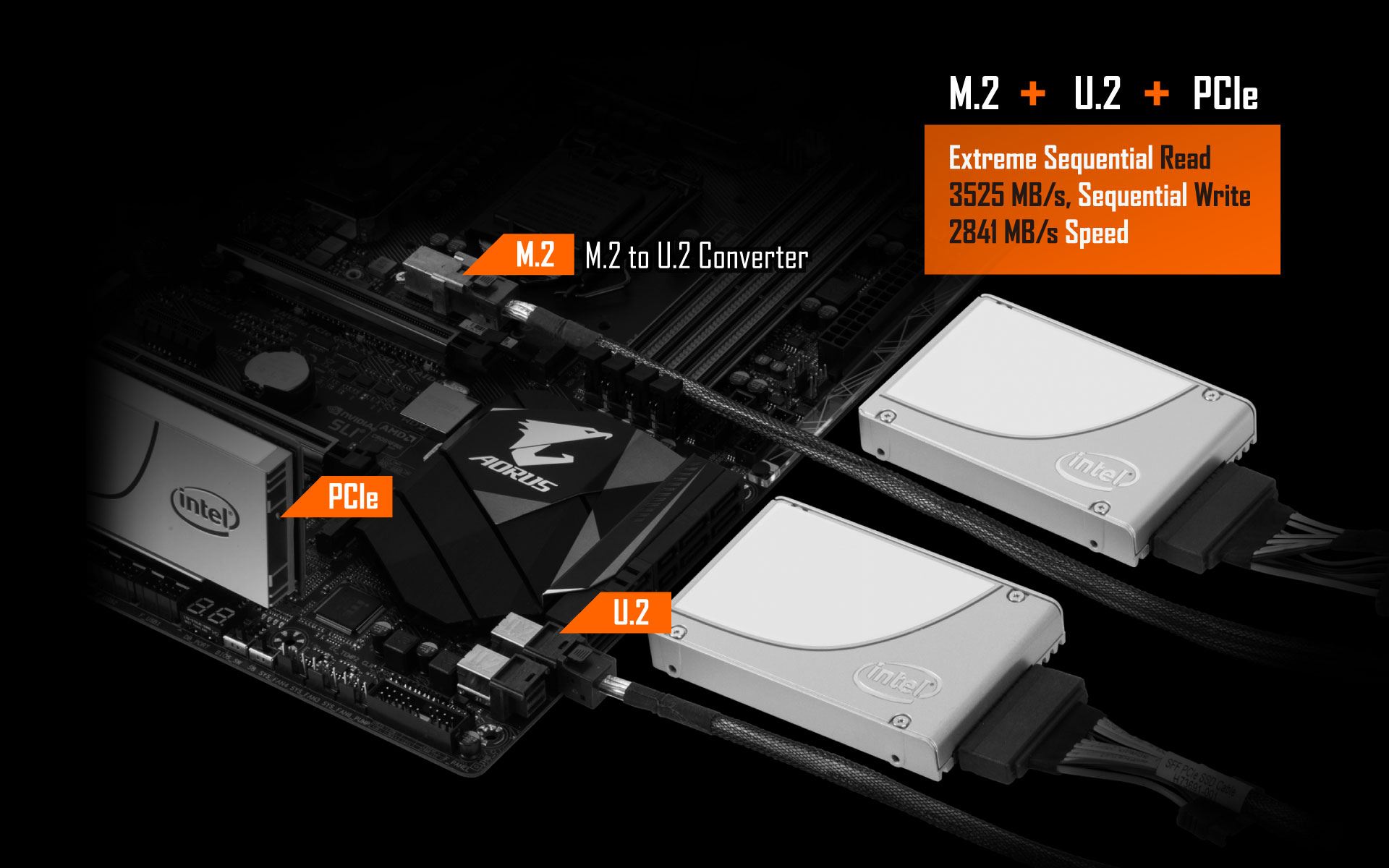

Triple NVMe PCIe SSD's in RAID 0 Support

Extreme Preformance with Gen3x4 NVMe PCIe SSDs

AORUS motherboards offers the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design supports up to three Intel 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

OS Support

The Gigabyte Z270 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
  • Windows® 8.1 64-bit*
  • Windows® 7

  • *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
General Specification
Model Number GA-Z270X-Gaming 8
Form Factor ATX
Dimensions 30.5cm x 24.4cm

Processor Information
Compatible Processors Intel 7th Generation Core i7/i5/i3
Intel 7th Generation Pentium
Intel 7th Generation Celeron
Intel 6th Generation Core i7/i5/i3
Intel 6th Generation Pentium
Intel 6th Generation Celeron
Socket Type LGA 1151

Note: Please refer to GIGABYTE Website for CPU Support List

Chipset
Chipset Manufacturer Intel
Chipset Type Z270 Express

Memory
RAM Installed / Max Capacity 0 MB / 64 GB Max
RAM Slots 4 x DDR4 DIMM
Supported RAM DDR4 Non-ECC UDIMM
RAM Architecture Dual-Channel
Supported RAM Speeds 2133 MHz - 4000 MHz*

NOTE: Higher memory speeds require over clocking of memory and can lead to system instability. Please check with manufacturer for list of compatible memory

Expansion Slots
Expansion Slots Total (Free) 4 x PCIe 3.0 x16
2 x PCIe 3.0 x1

Graphics & Display Specification
Video Controller Supports Intel HD Graphics
Multi-GPU Support Supports AMD CrossFireX (3-Way)
Supports NVIDIA SLI (2-way)

Ports & Connectivity - External IO Panel
Ports Present & Quantity 1 x PS/2 keyboard/mouse port
2 x MMCX antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x Thunderbolt 3 / USB 3.1 Port (Type-C)
1 x USB 3.1 Port (Type-A)
5 x USB 3.0 Ports
5 x audio jacks
1 x optical S/PDIF Out connector
2 x RJ-45 ports

Ports & Connectivity - Internal IO
Ports Present & Quantity 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x I/O shield audio LED power connector
2 x RGB (RGBW) LED strip extension cable headers
2 x SATA Express connectors
8 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
2 x U.2 connectors
1 x front panel header
1 x front panel audio header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS button
1 x ECO button
1 x OC button
2 x audio gain control switches
2 x BIOS switches
Voltage Measurement Points

Storage Interfaces & Controllers
Intel Z270 Express 6 x SATA 6Gb/s (RAID 0,1,5,10)
3 x SATA Express 10Gb/s
1 x M.2 32Gb/s (2242/2260/2280/22110) (PCIe & SATA Mode)
1 x M.2 32Gb/s (2242/2260/2280) (PCIe & SATA Mode)
2 x U.2 32Gb/s
ASMedia Controller 2 x SATA 6Gb/s

Note: 6 SATA 6Gb/s Ports Reserved for SATA Express

LAN & Networking
Controller 1 x Rivet Networks E2500
1 x Intel GbE LAN
Lan Speed 10/100/1000
Ports 2 x LAN(RJ45) port

Wireless
Wireless Killer Wireless-AC 1535
Speed 867 Mbps
Features Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth 4.1

Audio
Controller Creative Sound Core3D
2 x JRC NJM2114 operational amplifier
1 x TI Burr Brown OPA2134 operational amplifier
Support for Sound Blaster ZxRi
Operating System Support
Supported Operating Systems Windows® 10 , 64bit
Windows® 8.1 , 64bit*
Windows® 7 , 32bit/64bit*
* Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
