E-ATX (and Below), 7+2 Expansion Slots, Watercooling Support, GPU up to 449mm, CPU up to 185mm, 2 x USB 3.0, 1 x USB 2.0
£99.98 inc vat
£83.32 ex vat
You save £10.00
Order Code: BQ-BG026

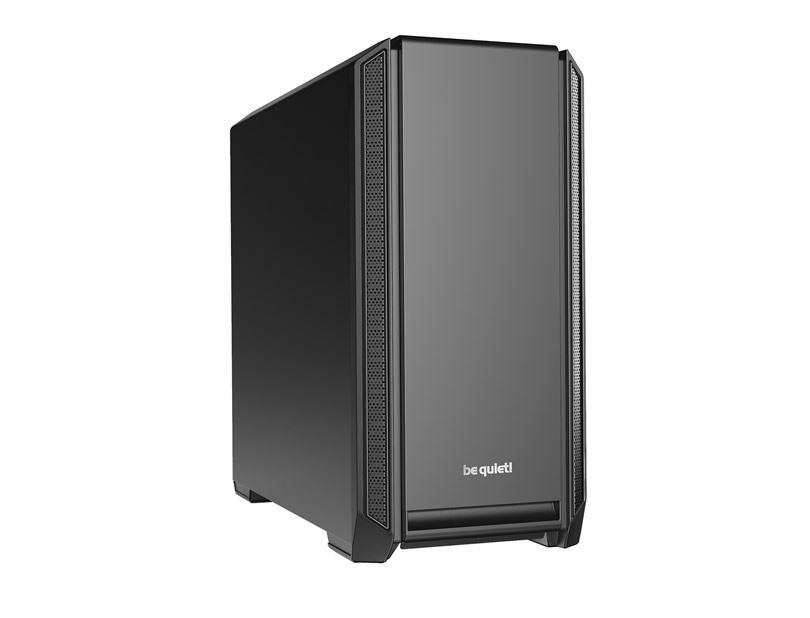

be quiet! Silent Base 601 Black delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.

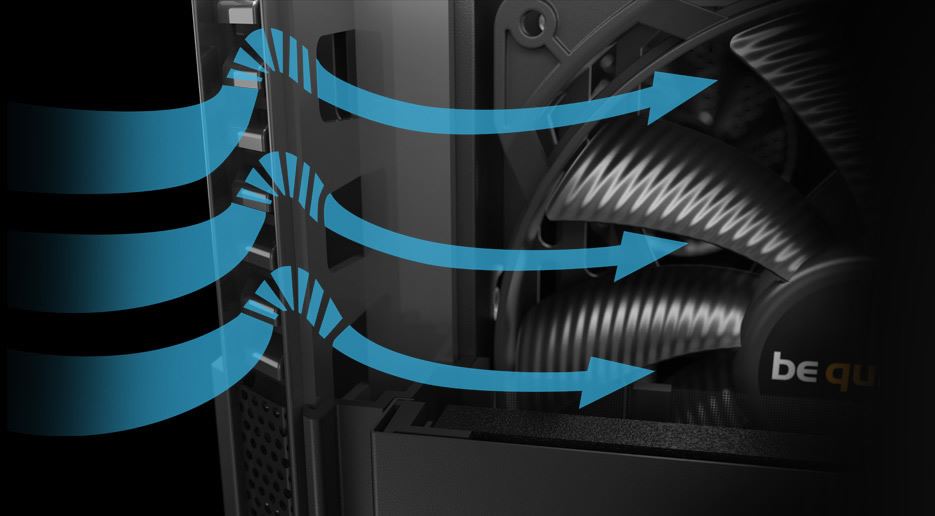

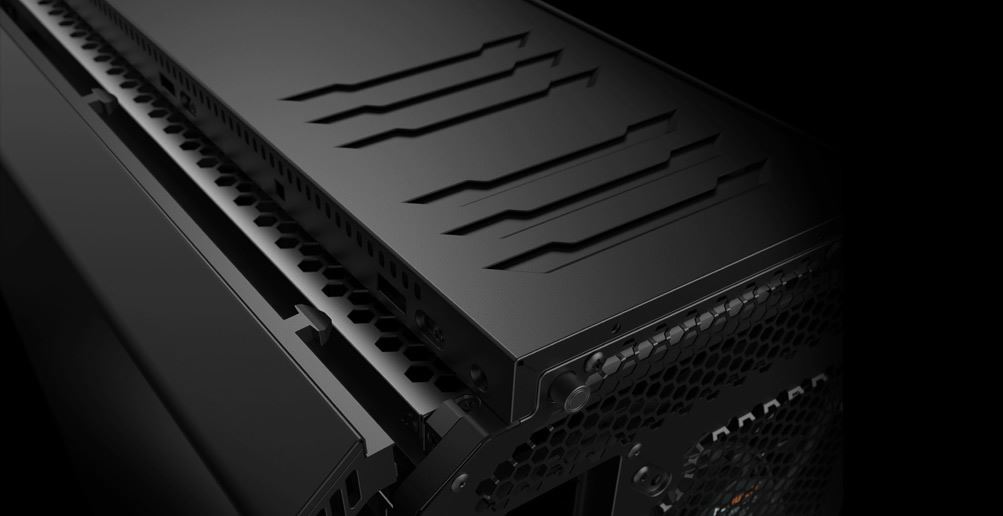

The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.

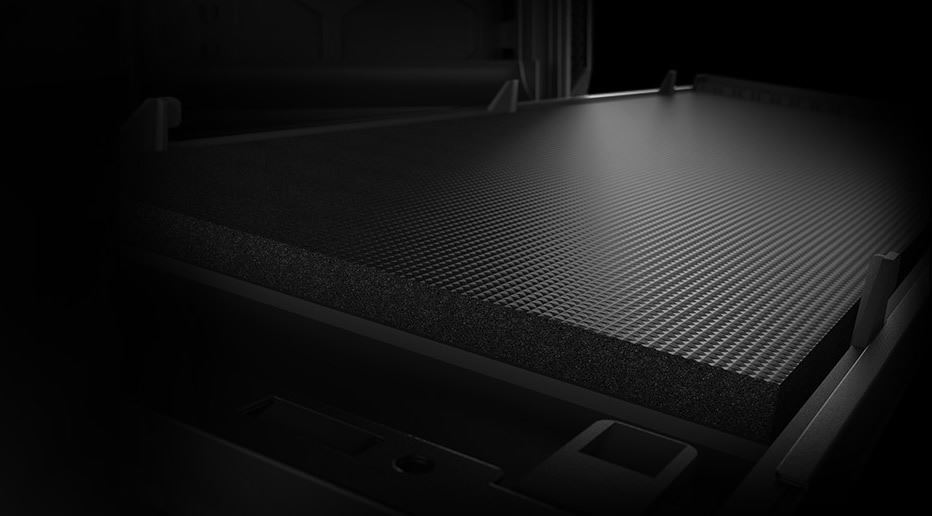

The front, top and sides are equipped with extra thick dampening mats of 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

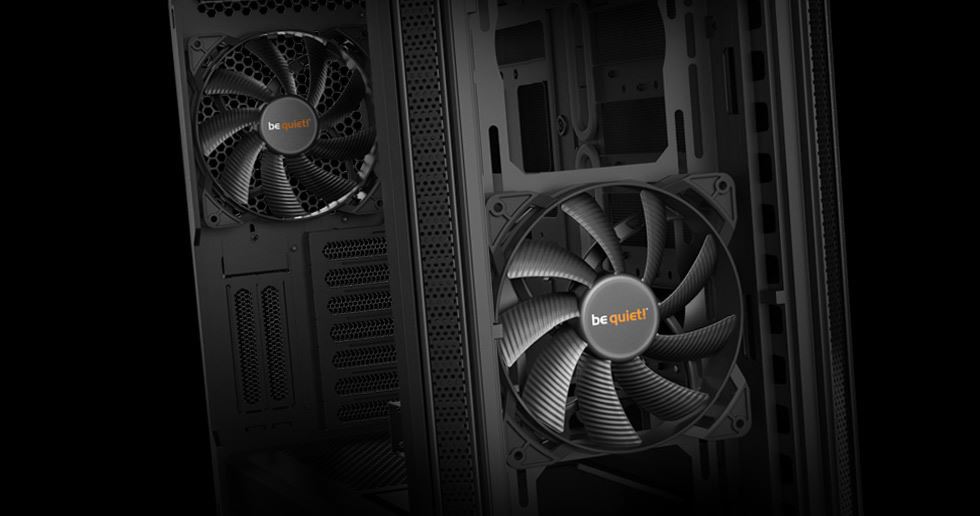

Two pre-installed Pure Wings 2 140mm fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller caters for up to three fans.

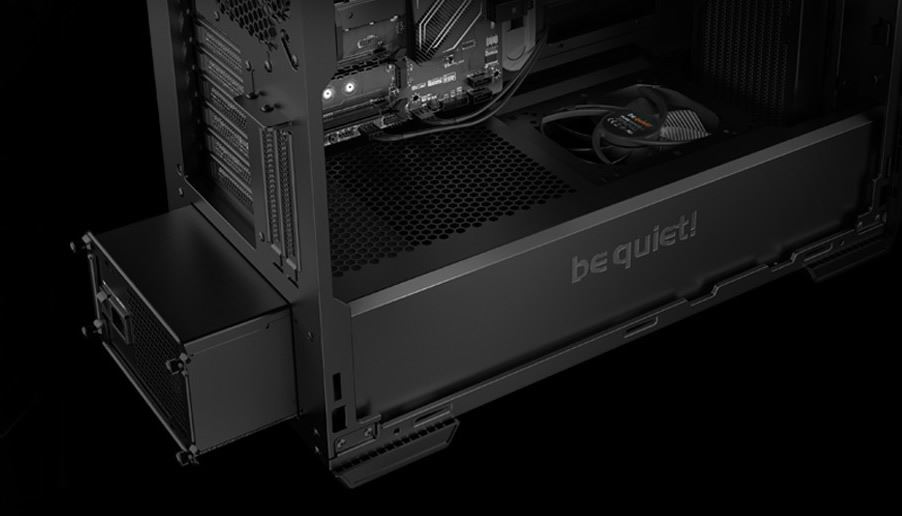

The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.
The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins the locking mechanism releases the upper part of the side panel and this hovers safely until removed manually. Excellent usability for fast and easy access to the interior of the case.

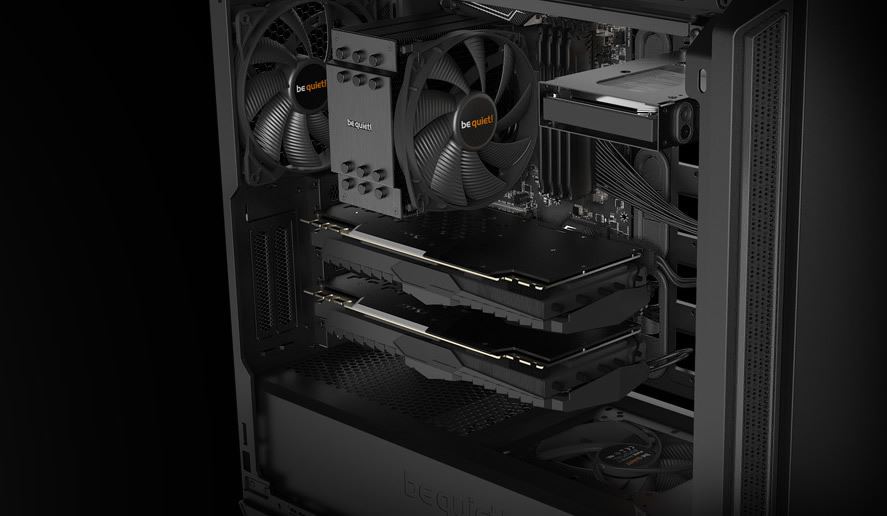

Despite its compact design the Silent Base 601 provides generous dimensions and cutouts even for installing an E-ATX motherboard. The smart arrangement of components also allows multiple graphics cards and large coolers to fit in well.

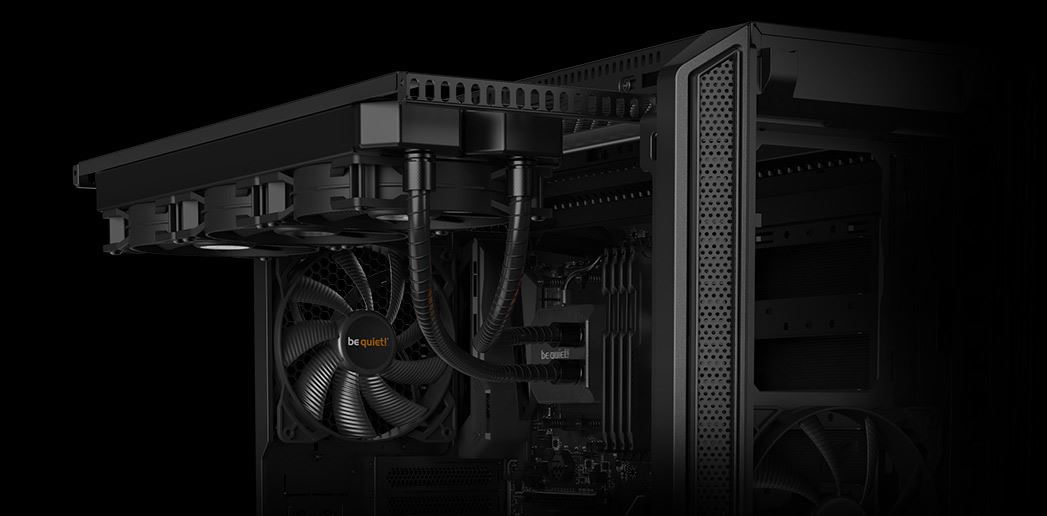

With its optimized design Silent Base 601 is the perfect case for water cooling. Radiators of up to 360mm can be installed at the front, top and rear. Using the detachable bracket radiators can be installed very quickly and easily at the top.
|Model||Silent Base 601 | Black|
|PSU form factor||ATX PS/2|
|Motherboard compatibility||E-ATX, ATX, M-ATX, Mini-ITX|
|Case size excl. stands (L x W x H), (mm)||532 x 240 x 481|
|Installation of motherboards with backplate||Yes|
|Case size incl. stands (L x W x H), (mm)||532 x 240 x 514|
|Dimensions side panel window (L x W), (mm)||440 x 498|
|USB 3.1 Gen 2 Type C||-|
|HD Audio I/O||1|
|Fan mounting locations||Front, Rear, Top, PSU Shroud|
|Qi charger / Quick Charging Option||-|
|Top cover||ABS, Steel|
|Side panel||ABS, Steel|
|Side panel window||-|
|Front panel||ABS, Steel|
|3.5 slots (max.)||7|
|3.5 slots (scope of delivery)||3|
|2.5 slots (max.)||14|
|2.5 slots (scope of delivery)||6|
|Fan @ front||1x be quiet! Pure Wings 2 |140mm|
|Fan @ rear||1x be quiet! Pure Wings 2 |140mm|
|Dimensions (L x W x H), (mm)||Front: 140 x 140 x 25, Rear: 140 x 140 x 25|
|Fan speed @ 12V (rpm)||1,000|
|Noise level @ 12V (dB(A))||18.8|
|Airflow @ 12V (cfm / m3/h)||61.2 / 104|
|Air pressure @ 12V (mm H2O)||0.76|
|Voltage range (V DC)||5-12|
|Input power (W)||1.44|
|Input current (A)||0.12|
|Lifespan (h / 25°C)||80,000|
|Fan controller||3-step fan controller (3x 3-pin)|
|Front (mm)||2x 140/120|
|Top (mm)||3x 140/120|
|Side panel (mm)||-|
|PSU shroud||1x 140/120|
|Front (mm)||120 / 140 / 240 / 280 / 360|
|Top (mm)||120 / 240 / 360|
|Rear (mm)||120 / 140|
|Max.construction height of CPU cooler unit (mm)||185|
|Airflow channel||Front, Top, Rear|
|RGB LED illumination||-|
|LEDs synchronizable with RGB controller/motherboard||-|
|Expandable RGB controller||-|
|Maximum dimensions excl. bottom fan (mm)||288|
|Maximum dimensions incl. bottom fan (mm)||288|
|HDD cage (in height of graphics card) installed (mm)||287|
|HDD cage (in height of graphics card) removed (mm)||449|
|Top panel insulation mats||Yes|
|Front panel insulation mats||Yes|
|Side panel insulation mats||Yes|
|Anti-vibration decoupled HDD||Yes|
|Anti-vibration decoupled fan||Yes|
|Anti-vibration decoupled PSU||Yes|
|Anti-vibration decoupled motherboard-tray||Yes|
|Screw set (Drives/Motherboard)||Yes|
|Rubber rail (pcs.)||-|
|Standoff (pcs.)||1 (for E-ATX)|
|LCS bracket (pcs).||0|
|HDD slot cover (pcs.)||0|
|Upper fan bracket (pcs.)||0|
|HDD panel rubber grommet (pcs.)||-|
|SSD bracket for PSU shroud||0|
|LED strips (pcs.)||-|
|Cable ties (pcs.)||6 (Velcro)|
|Cable tie holder (pcs.)||-|
|International hotline / free of charge||Yes / DE, FR|
|Dimensions, package (L x W x H), (mm)||565 x 325 x 615|
|Gross weight, package (kg)||12,50|
|Pieces per packaging unit||1|
