*Bstock - Repaired Motherboard* GIGABYTE GA-Z270P-D3 Intel Z270 (Socket 1151) ATX Motherboard

i7 / i5 / i3 (7th Gen), Mini ITX, DDR4, 6 x USB3.1, 6 x USB2, 6 x SATA3, 1 x M.2, 3 x PCIe x16, 3 x PCIe x1, Crossfire

*Bstock - Repaired Motherboard* GIGABYTE GA-Z270P-D3 Intel Z270 Socket 1151 ATX Motherboard
12 in stock question tooltip

£114.49

£87.59 inc vat

£72.99 ex vat

You save £26.90

payment cards

Order Code: B-MGZ27P

Manf.Code: B-GA-Z270P-D3

What our customers say about us

Express Delivery

Christmas Offer: Half Price NEXT DAY Delivery from only £2.99

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

*Bstock - Repaired Motherboard* GIGABYTE GA-Z270P-D3 Intel Z270 (Socket 1151) ATX Motherboard overview

Motherboard and Backplate Only, Manufacturer Repaired. Warranty - 90 Days

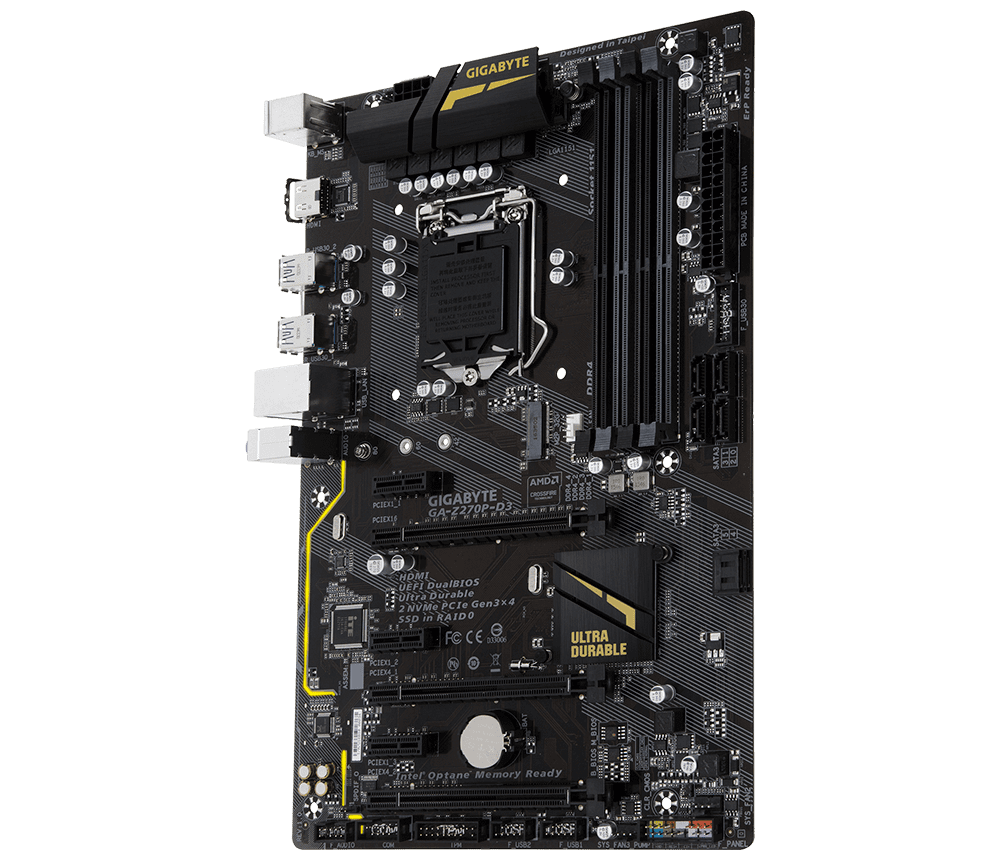

GIGABYTE GA-Z270P-D3

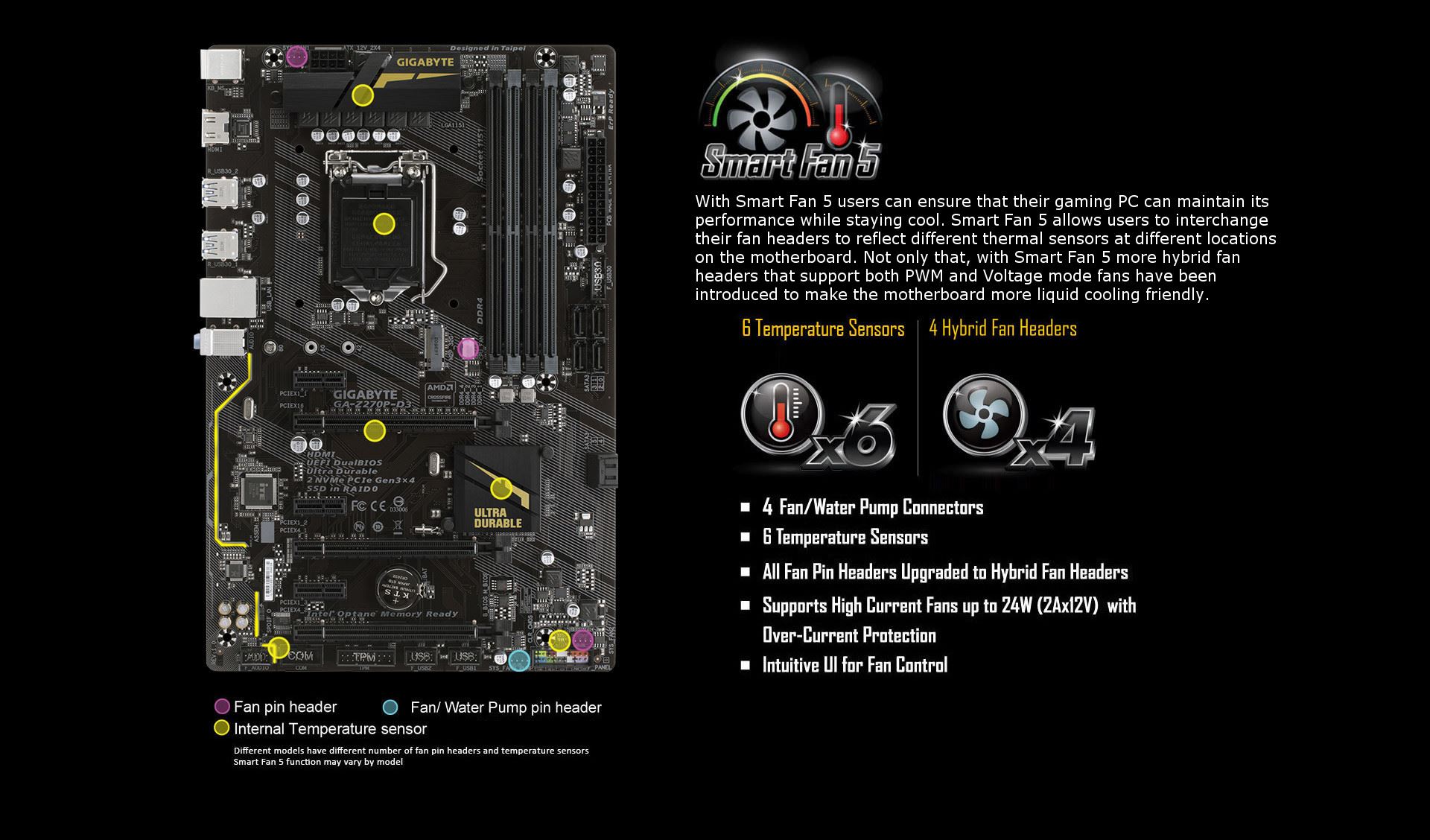

SMART FAN 5

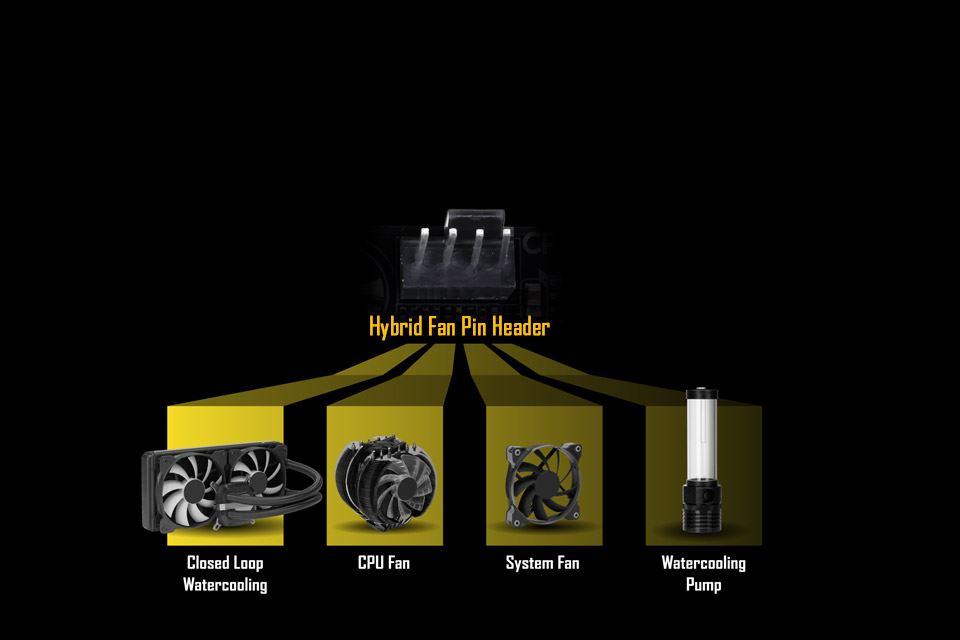

ALL HYBRID FAN PIN HEADERS

• Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

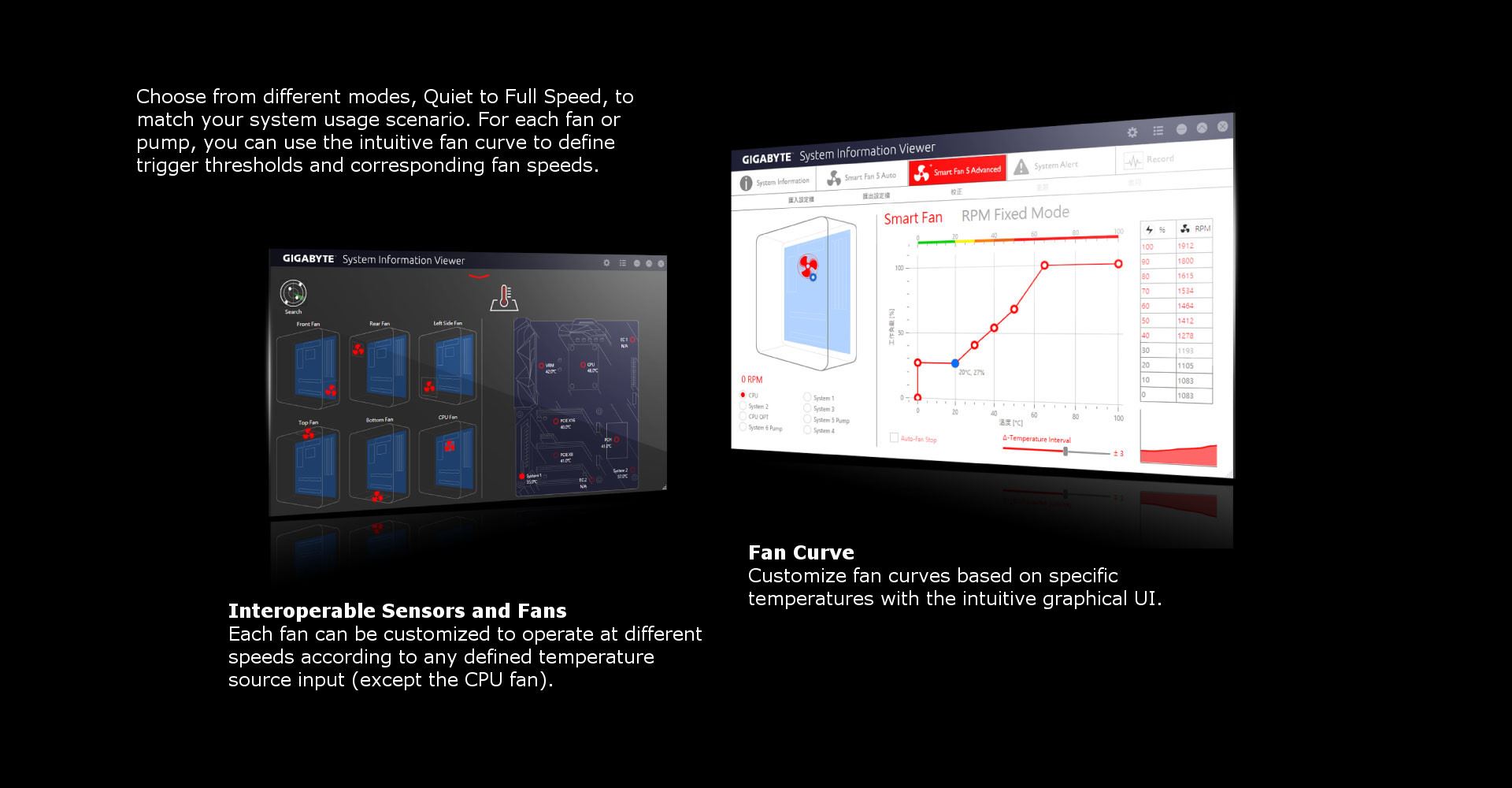

NEW SMART FAN 5 SOFTWARE

IMMERSIVE VR GAMING EXPERIENCE

2-Way CrossFire™ Multi-Graphics

NVMe PCIe Gen3 x4 2280 M.2 Connector

OS Support

The Gigabyte Z270 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
  • Windows® 8.1 64-bit*
  • Windows® 7

  • *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
CPU
  1. Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z270 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support
  1. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
    * Support for HDMI 1.4 version.
  2. Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
    1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  1. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
  2. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies (PCIEX16 and PCIEX4)
Storage InterfaceChipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USBChipset:
  1. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x system fan/water cooling pump header
  6. 6 x SATA 6Gb/s connectors
  7. 1 x M.2 Socket 3 connector
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x S/PDIF Out header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 Keyboard port
  3. 1 x HDMI port
  4. 4 x USB 3.1 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    V-Tuner
  2. Support for 3TB+ Unlock
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Optane™ Memory Ready
  3. cFosSpeed
Operating System
  1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
  2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 19.9cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
