*Bstock - Repaired Motherboard* GIGABYTE Z270M-D3H Intel Z270 (Socket 1151) Micro ATX Motherboard

i7 / i5 / i3 (7th Gen), Micro ATX, DDR4, 9 x USB3, 4 x USB2, 6 x SATA3, 3 x SATAe, 1 x M.2, 2 x PCIe x16, 2 x PCI, Crossfire

*Bstock - Repaired Motherboard* GIGABYTE Z270M-D3H Intel Z270 Socket 1151 Micro ATX Motherboard
1 in stock question tooltip

£118.61

£106.81 inc vat

£89.01 ex vat

You save £11.80

payment cards

Order Code: B-Z27MD3

Manf.Code: B-GA-Z270M-D3H

What our customers say about us

Express Delivery

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

*Bstock - Repaired Motherboard* GIGABYTE Z270M-D3H Intel Z270 (Socket 1151) Micro ATX Motherboard overview

Motherboard and Backplate Only, Manufacturer Repaired. Warranty - 90 Days

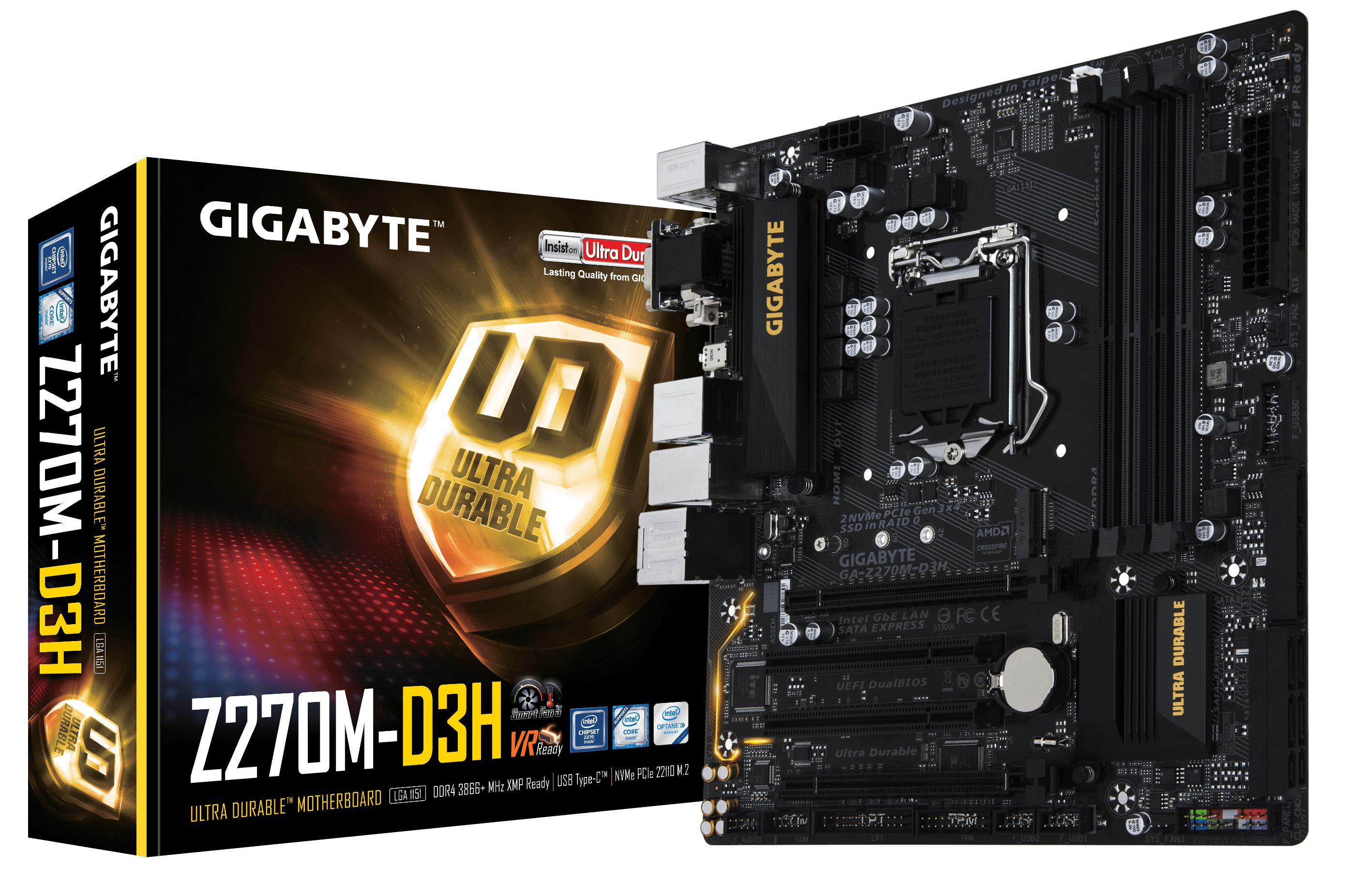

GIGABYTE GA-Z270M-D3H

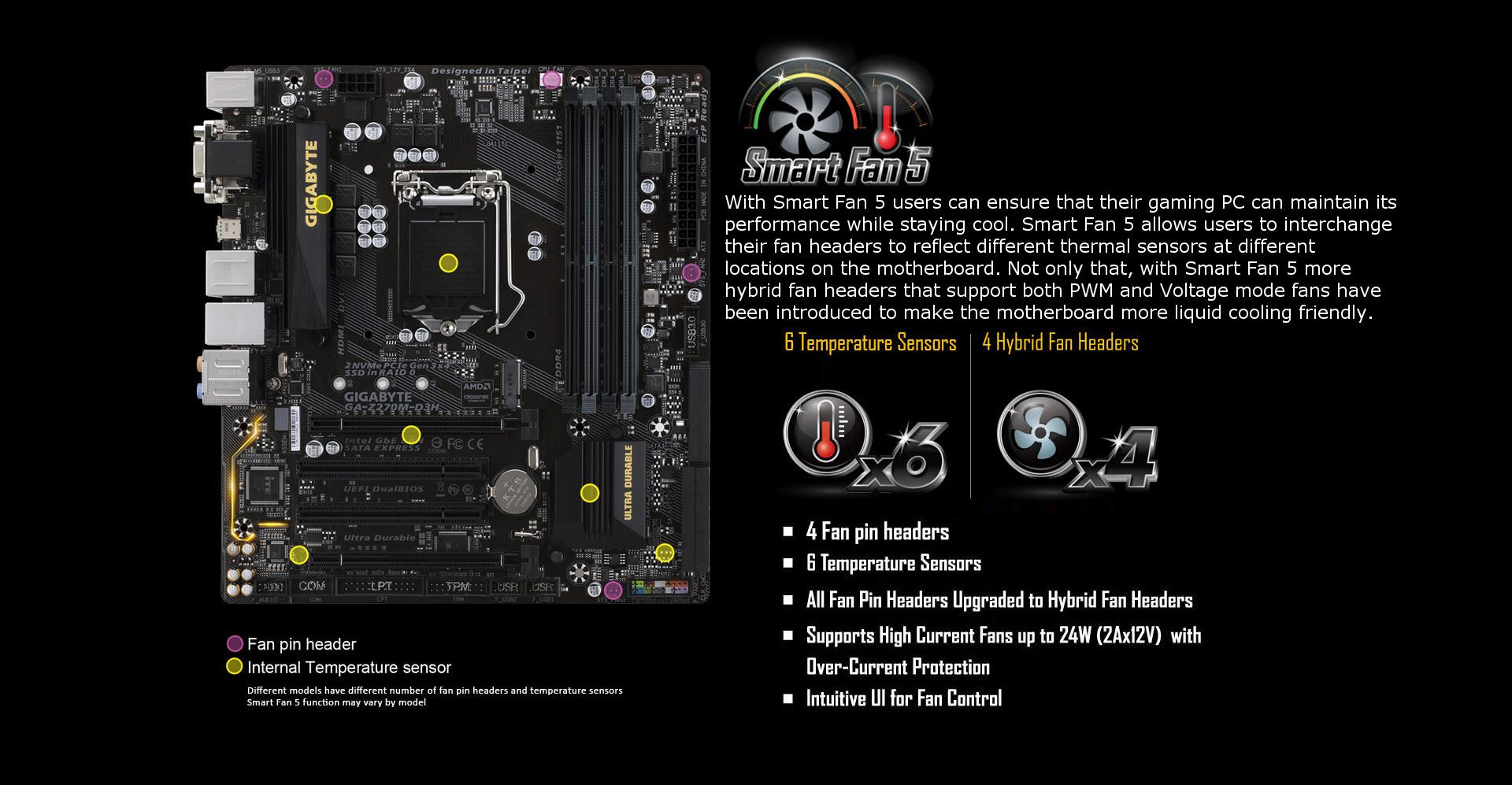

SMART FAN 5

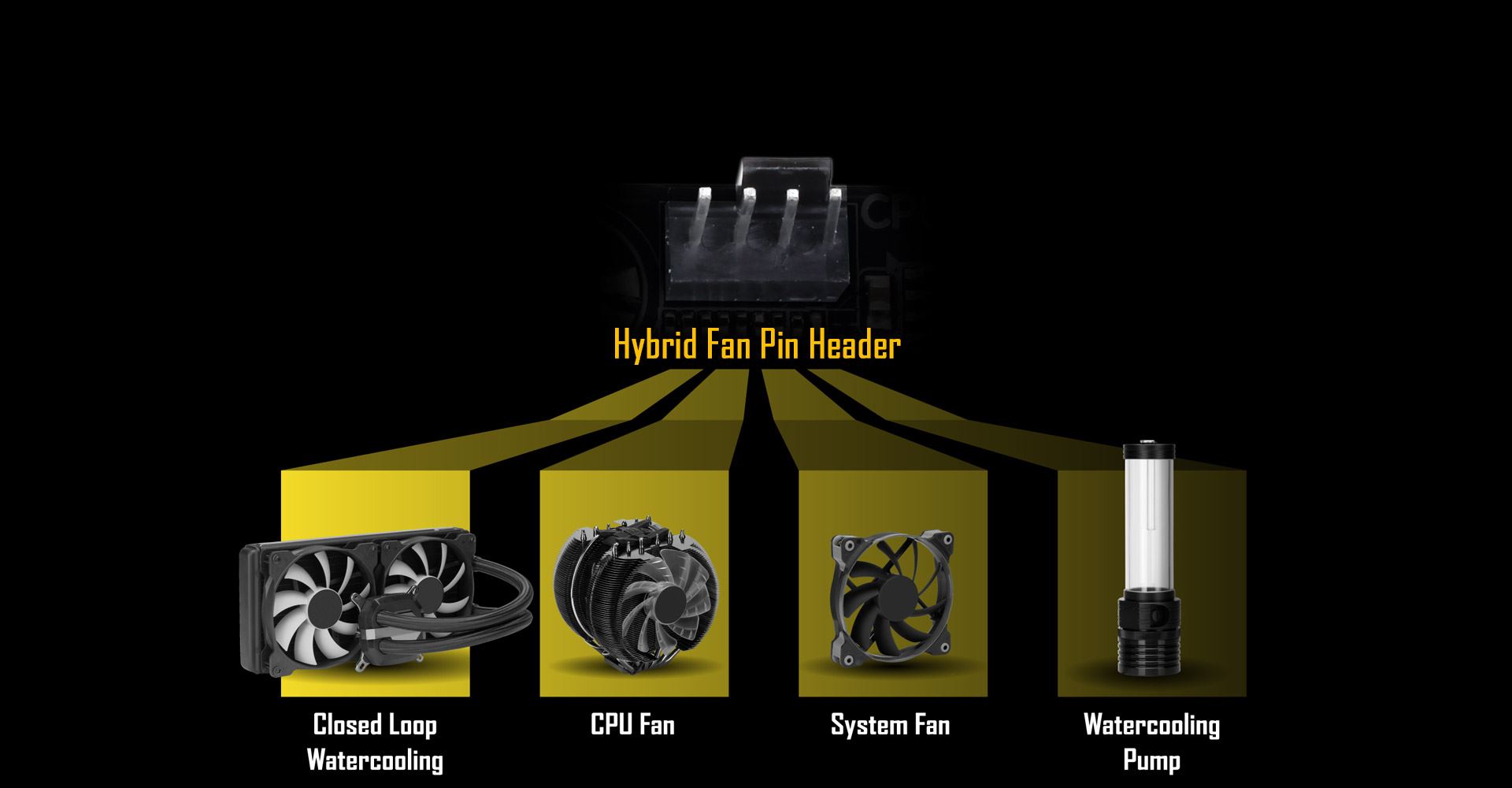

ALL HYBRID FAN PIN HEADERS

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode with support up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

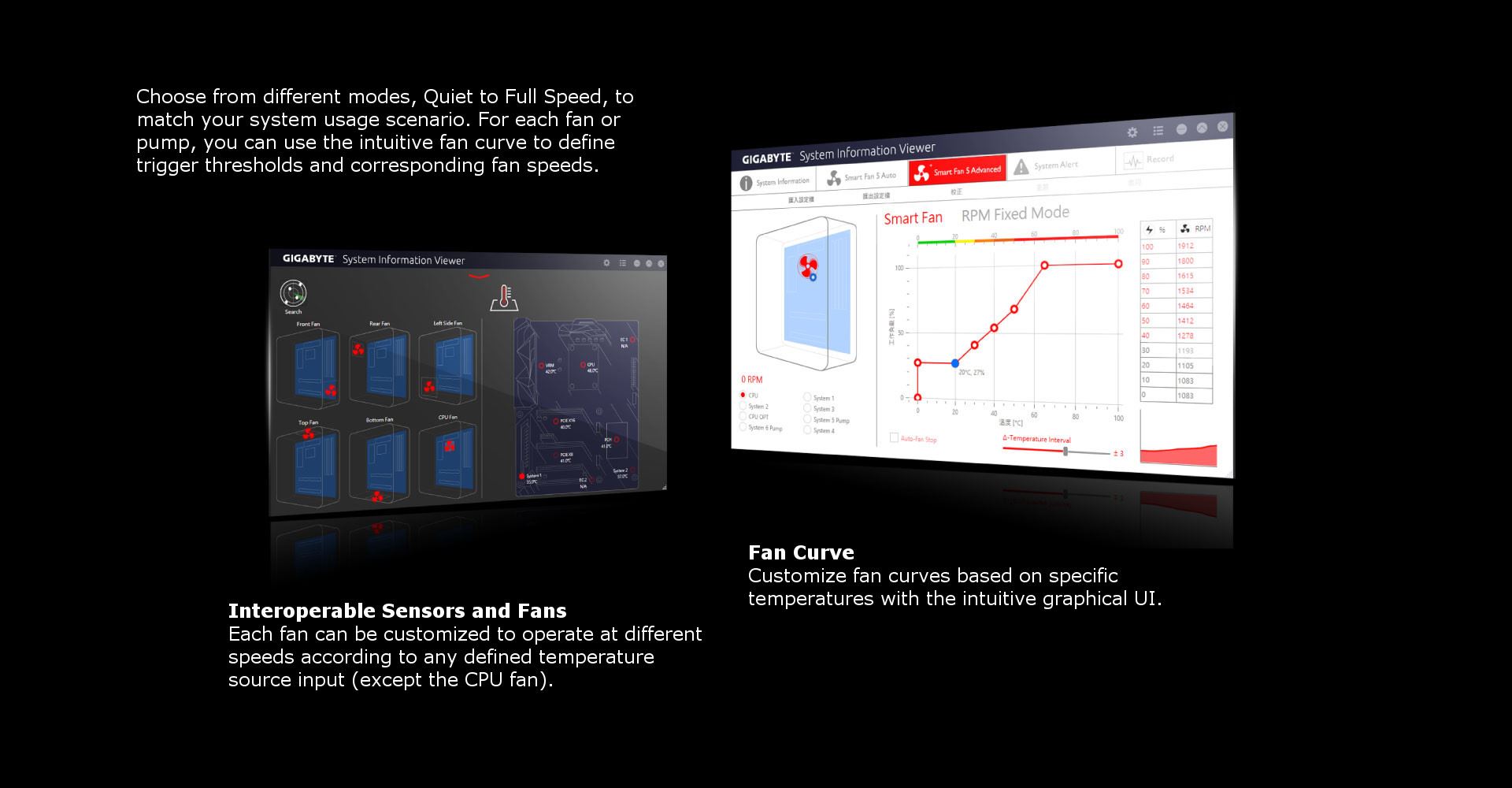

NEW SMART FAN 5 SOFTWARE

IMMERSIVE VR GAMING EXPERIENCE

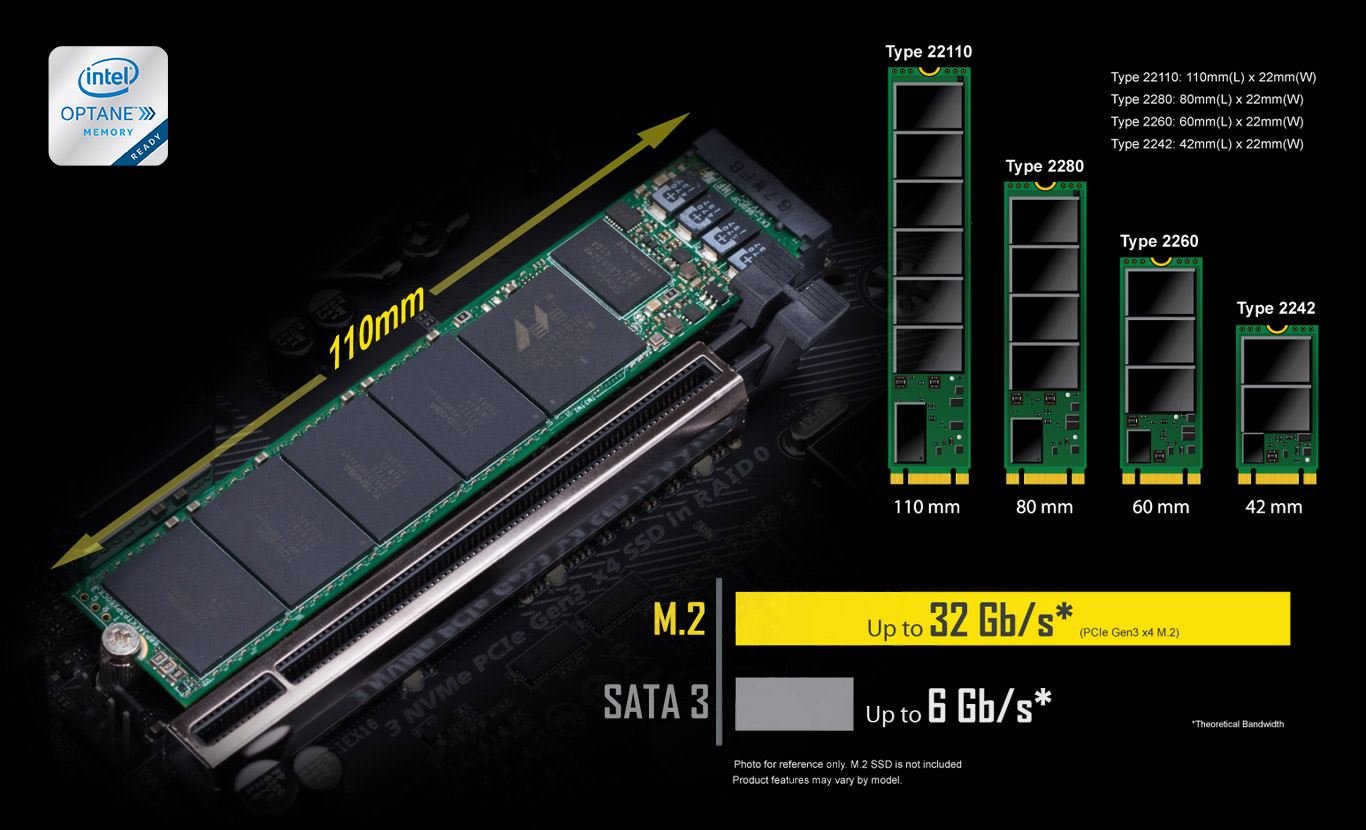

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

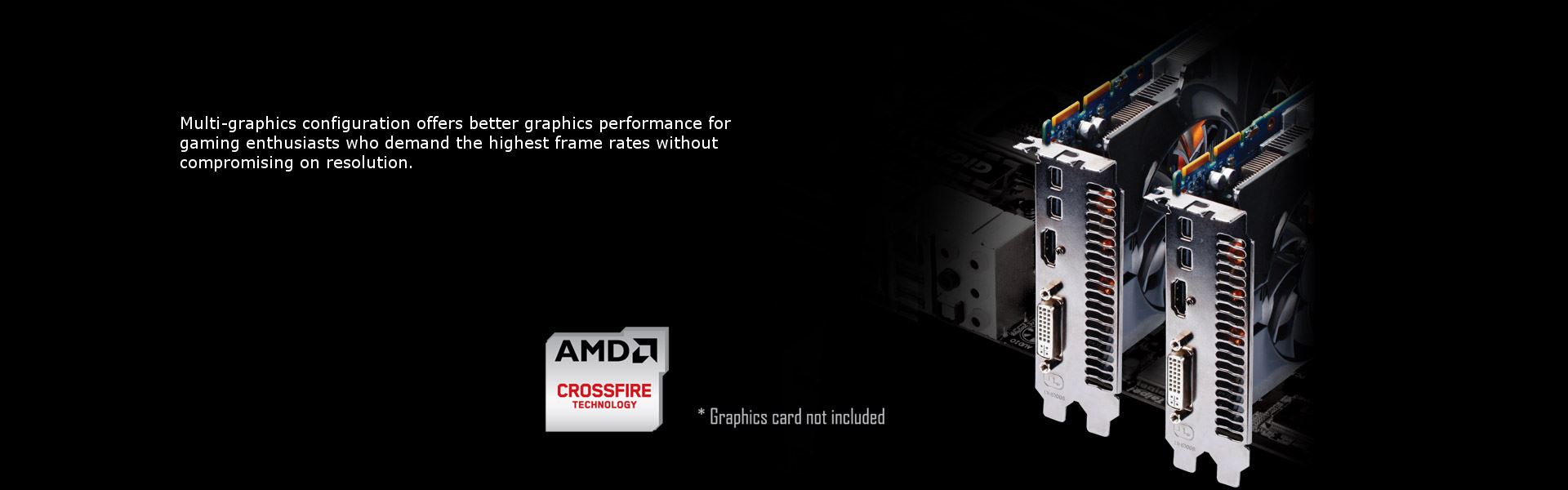

2-Way CrossFire™ Multi Graphics

OS Support

The Gigabyte Z270 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
  • Windows® 8.1 64-bit*
  • Windows® 7

  • *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
General Specification
Model Number GA-Z270M-D3H
Form Factor Micro ATX
Dimensions 24.4cm x 22.5cm

Processor Information
Compatible Processors Intel 7th Generation Core i7/i5/i3
Intel 7th Generation Pentium
Intel 7th Generation Celeron
Intel 6th Generation Core i7/i5/i3
Intel 6th Generation Pentium
Intel 6th Generation Celeron
Socket Type LGA 1151

Note: Please refer to GIGABYTE Website for CPU Support List

Chipset
Chipset Manufacturer Intel
Chipset Type Z270 Express

Memory
RAM Installed / Max Capacity 0 MB / 64 GB Max
RAM Slots 4 x DDR4 DIMM
Supported RAM DDR4 Non-ECC UDIMM
RAM Architecture Dual-Channel
Supported RAM Speeds 2133 MHz - 3800 MHz*

NOTE: Higher memory speeds require over clocking of memory and can lead to system instability. Please check with manufacturer for list of compatible memory

Expansion Slots
Expansion Slots Total (Free) 2 x PCIe 3.0 x16
2 x PCI

Graphics & Display Specification
Video Controller Supports Intel HD Graphics
Multi-GPU Support Supports AMD CrossFireX (2-Way)

Ports & Connectivity - External IO Panel
Ports Present & Quantity 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x USB 3.0 Port (Type-C)
6 x USB 3.0 Ports
1 x RJ-45 port
6 x audio jacks

Ports & Connectivity - Internal IO
Ports Present & Quantity 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
3 x SATA Express connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

Storage Interfaces & Controllers
Intel Z270 Express 6 x SATA 6Gb/s (RAID 0,1,5,10)
3 x SATA Express 10Gb/s
1 x M.2 32Gb/s (2242/2260/2280/22110) (PCIe & SATA Mode)

Note: 6 SATA 6Gb/s Ports Reserved for SATA Express

LAN & Networking
Controller 1 x Intel GbE
Lan Speed 10/100/1000
Ports 1 x LAN(RJ45) port

Wireless
Wireless N/A
Speed N/A
Features N/A

Audio
Controller Realtek ALC892 codec
Operating System Support
Supported Operating Systems Windows® 10 , 64bit
Windows® 8.1 , 64bit*
Windows® 7 , 32bit/64bit*
* Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
