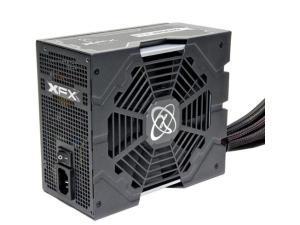

XFX ProSeries 550W Core Edition Power Supply - 80 PLUS Bronze Certified

EasyRail™ Technology, perfect solution for hardcore gamers

XFX ProSeries 550W Core Edition Power Supply - 80 PLUS Bronze Certified
question tooltip

Sorry, this product is no longer available to purchase.

Please view our whole range of Power Supplies here

payment cards

Order Code: XFX-PS550

Manf.Code: P1-550S-XXB9

What our customers say about us

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

XFX ProSeries 550W Core Edition Power Supply - 80 PLUS Bronze Certified overview

ProSeries 550W PSU

One Rail, One Setup


Unique, continuous EasyRail™ technology enables you to maximize available power and make set-up easy. Stack numerous power-hungry components without fear of crashing. It's also a perfect solution for hardcore gamers.

Key Features

The Wattage you see isn’t always the wattage you get.



Some brands tweak tests to get great wattage ratings, but in reality, they deliver much lower max wattages. Don’t be fooled by wattage tricks. Below are examples of how we guarantee our wattage.

Continuous Power

Wattage and heat go hand-in-hand. Other PSUs claim a certain wattage by using unrealistic testing environments like 25°C, but in real settings, they might reach much lower wattages. XFX PSUs guarantee the advertised wattage, even at well above standard operating conditions at 50°C.

Clean Power

Power drawn from your AC outlet is typically dirty with voltage spikes and fluctuations, which can harm vital PC components. XFX PSUs are designed to deliver tight DC voltage regulation with minimal AC ripple, giving you safer, cleaner power.

Efficient Power Use

80 Plus (Bronze, Silver, Gold & Platinum) certified means that this XFX PSU has an 88% to 95% power efficiency. Compare that to non-certified PSUs, which lose at least 20% of power drawn. With the XFX PSU, get every watt you pay for.

Extreme Heat Tested Capacitors

Internal PC operating temperature is around 35°C but the internal PSU temperature can be much higher. XFX uses all high-quality Japanese brand capacitors rated to withstand up to 105°C. While some competitors claim to use Japanese capacitors, they may only be rated for 85°C, which can shorten the usable life of a PSU.

Automatic Protection Sensors

All XFX PSUs come with automatic output protection systems to protect you and your computer. This includes Total Power Protection (OPP), Over Voltage Protection (OVP), Over Current Protection (OCP) and Short Circuit Protection (SCP)

Hybrid Fan Control - Conserves Power & Quieter

Hybrid mode, when activated, allows the PSU to operate silently until it reaches 30% load or 25°C. Then it switches to Quiet Mode (only 16dBA) until reaching 50% load which switches to Cooling Mode to cool the PSU appropriately.

Other Features

  • DC to DC Converter Design
  • Conductive Polymer Aluminum Solid Electrolytic Capacitors
  • Active Power Factor Correction [99% PF Typical]
  • High +12V Output
  • Ultra Ventilation [Grid Structure]
  • Multi-GPU Technologies Supported
  • All-in-One DC Cabling Design
  • Universal AC Input [Full Range]
  • 2 Year Limited Warranty
  • General
    Brand XFX
    Model P1-550S-UKB9
    Form Factor ATX12V 2.2/ EPS12V 2.91


    Power
    Input Voltage AC 100-240V
    Input Voltage Range AC 90 - 264 V
    Frequency Required 47 - 63 Hz
    Output Voltage +3.3V, +5V, ±12V


    Connectors
    24/20 Pin 1
    ATX 12V 1
    PCI-E 8 Pin 1
    PCI-E 6+2 Pin 1
    SATA 9
    Peripheral 6
    Floppy 2


    2 year standard warranty with all PSUs - simply register your PSU when purchased here to obtain a 5 year warranty. Register within 30 days of purchase, and provide proof of purchase for any warranty actions.
