GIGABYTE AORUS Z270X-GAMING 7 Intel Z270 (Socket 1151) ATX Motherboard

i7 / i5 / i3 (7th Gen), ATX, DDR4, 2 x USB3.1, 9 x USB3, 4 x USB2, 6 x SATA3, 3 x SATAe, 2 x M.2, 1 x U.2, 3 x PCIe x16, 3 x PCIe x1, SLI/Crossfire

GIGABYTE AORUS Z270X-GAMING 7 Intel Z270 Socket 1151 ATX Motherboard
question tooltip

Sorry, this product is no longer available to purchase.

Please view our whole range of Socket 1151 (Z270 Chipset) here

payment cards

Order Code: GIG-Z27G7

Manf.Code: GA-Z270X-GAMING 7

What our customers say about us

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24, 36 or 48 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

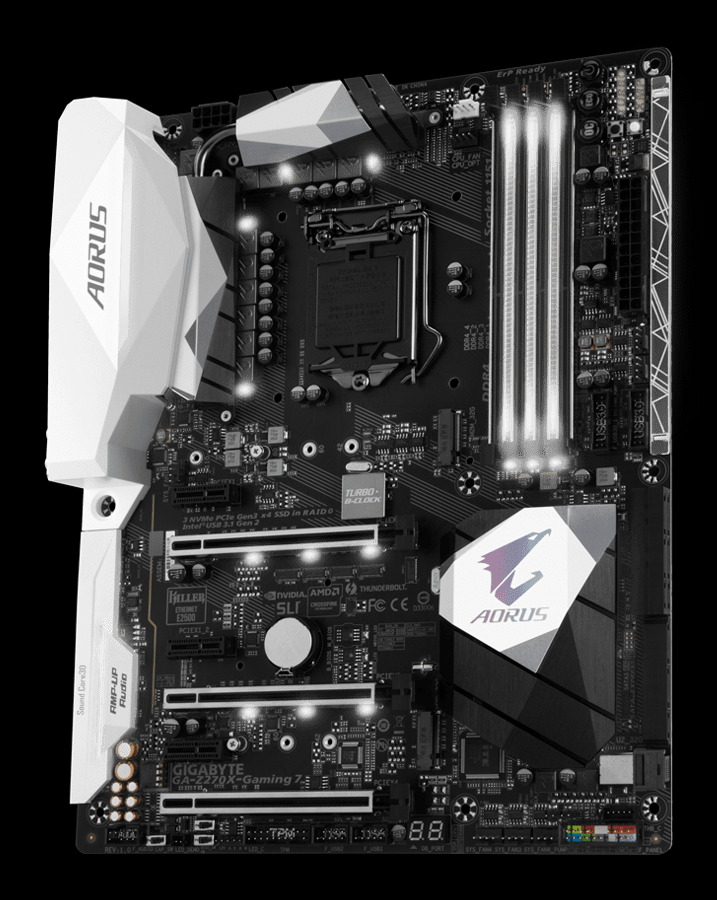

GIGABYTE AORUS Z270X-GAMING 7 Intel Z270 (Socket 1151) ATX Motherboard overview

AORUS Z270X-GAMING 7 LGA-1151


Why Buy?

  1. • Supports 7th/6th Generation Intel® Core™ Processors
  2. • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  3. • Intel® USB 3.1 Gen 2 with USB Type-C™ and Type-A
  4. • 3-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  5. • Triple NVMe PCIe SSDs in RAID 0 Support
  6. • NVMe PCIe Gen3 x4 U.2 Connector
  7. • Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
  8. • Intel® Optane™ Memory Ready
  9. • Creative SoundCore™ 3D with SBX Pro Studio Audio Suite
  10. • Killer™ E2500 Gaming Network + Intel®Gigabit LAN
  11. • USB DAC-UP 2 with Adjustable Voltage
  12. • RGB FUSION with Multi-Zone LED Light Show design
  13. • Swappable Overlay for Accent LED
  14. • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  15. • 2 External Thermistors Headers With 2 Included Thermistors
  16. • Extreme 40 Gb/s Thunderbolt™ 3
  17. • GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
  18. • APP Center Including EasyTune™

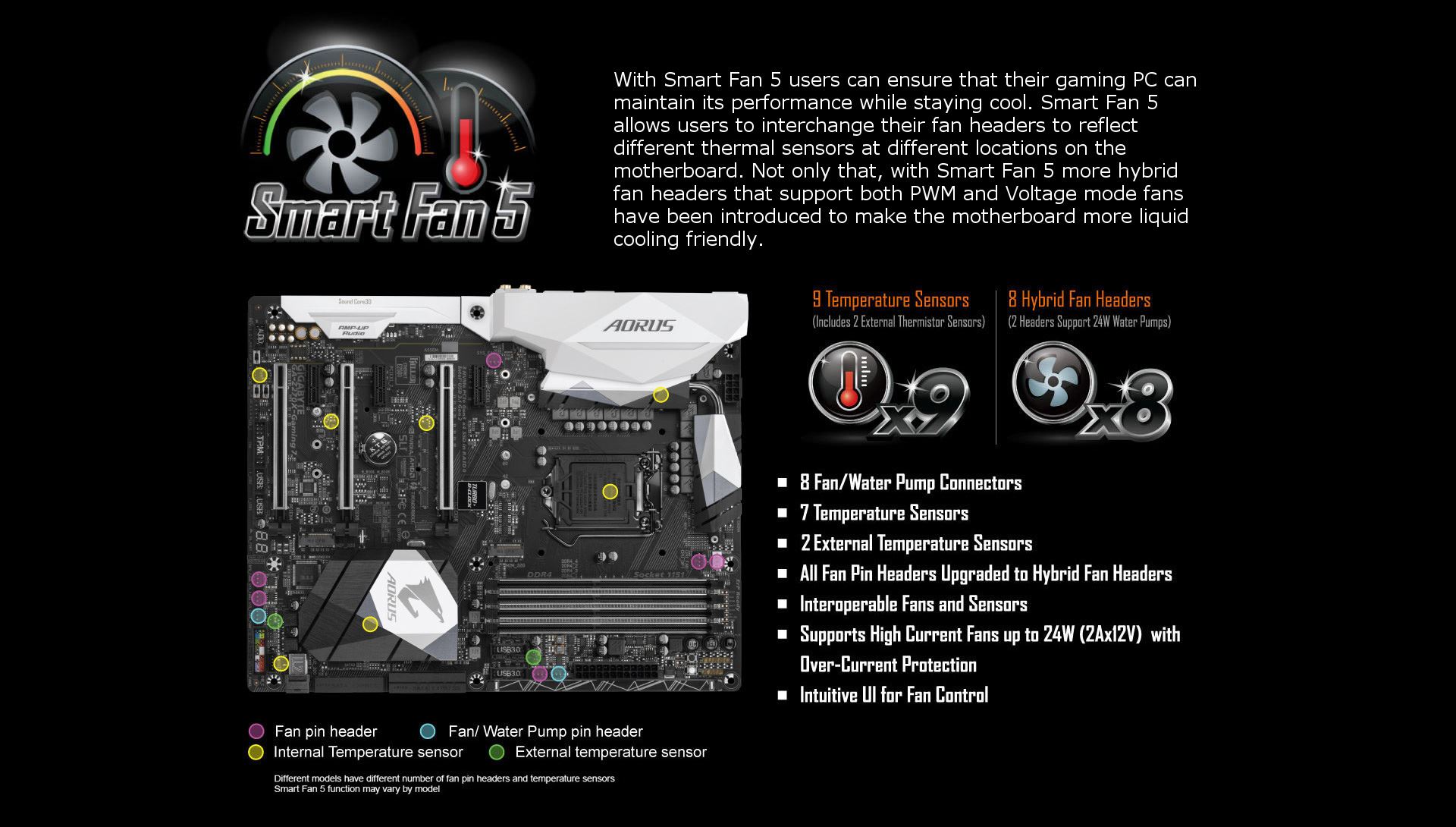

SMART FAN 5

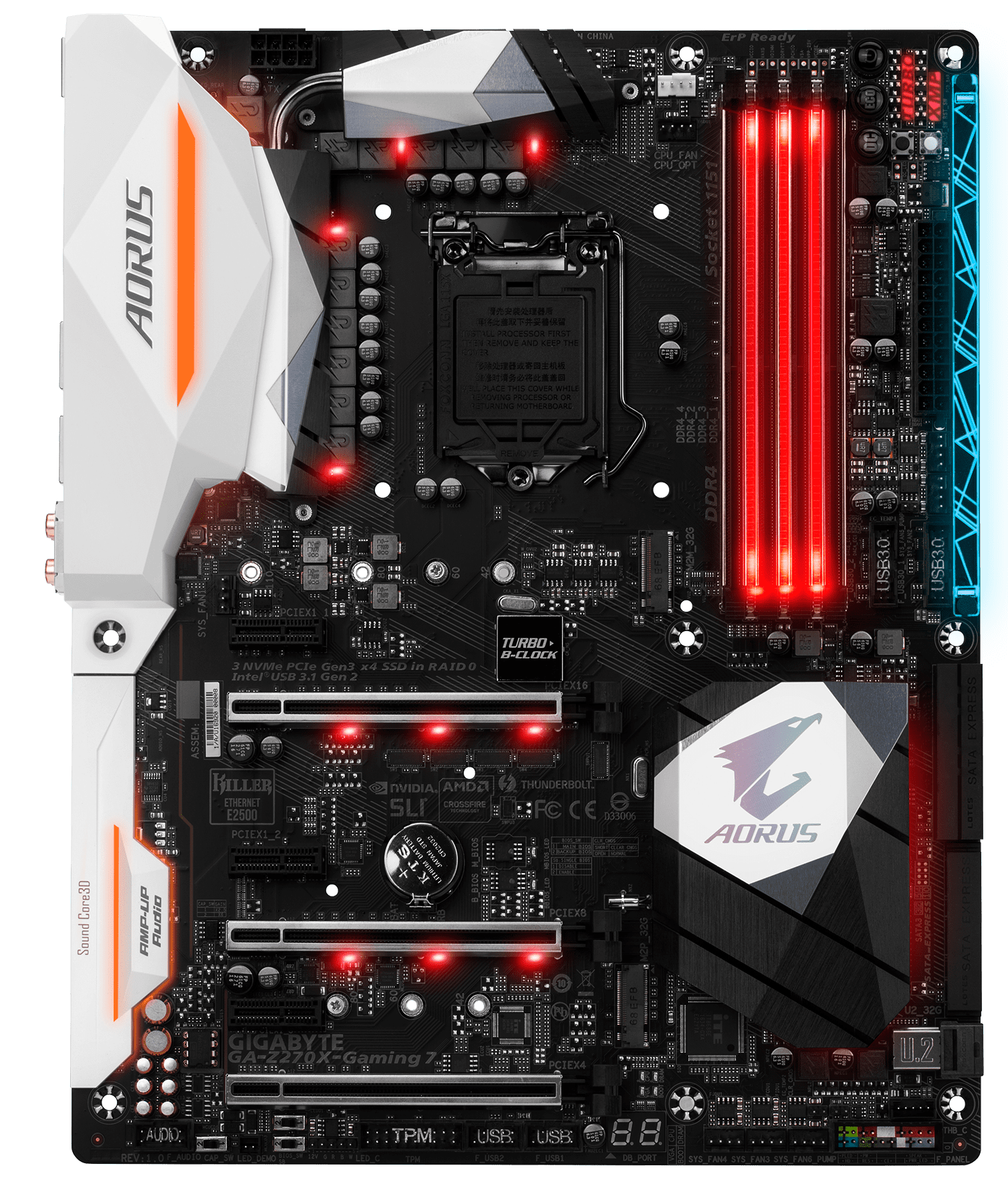

RGB FUSION



Multi-Zone Light Show Design

• 16.8M RGB Colors
• 3 Light Zones
• 4 Programmable Sections
• 7 Different Lighting Effects
• 1 RGBW Light Strip Pin Headers
• Accent LED with Interchangeable Overlay
• Advanced Mode for Extreme Customizability

Lighting zone, programmable sections, wave mode may vary by model.


Triple NVMe PCIe SSD's in RAID 0 Support

Extreme Preformance with Gen3x4 NVMe PCIe SSDs

AORUS motherboards offers the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design supports up to three Intel 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

General Specification
Model Number GA-Z270X-Gaming 7
Form Factor ATX
Dimensions 30.5cm x 24.4cm

Processor Information
Compatible Processors Intel 7th Generation Core i7/i5/i3
Intel 7th Generation Pentium
Intel 7th Generation Celeron
Intel 6th Generation Core i7/i5/i3
Intel 6th Generation Pentium
Intel 6th Generation Celeron
Socket Type LGA 1151

Note: Please refer to GIGABYTE Website for CPU Support List

Chipset
Chipset Manufacturer Intel
Chipset Type Z270 Express

Memory
RAM Installed / Max Capacity 0 MB / 64 GB Max
RAM Slots 4 x DDR4 DIMM
Supported RAM DDR4 Non-ECC UDIMM
RAM Architecture Dual-Channel
Supported RAM Speeds 2133 MHz - 4000 MHz*

NOTE: Higher memory speeds require over clocking of memory and can lead to system instability. Please check with manufacturer for list of compatible memory

Expansion Slots
Expansion Slots Total (Free) 3 x PCIe 3.0 x16
3 x PCIe 3.0 x1

Graphics & Display Specification
Video Controller Supports Intel HD Graphics
Multi-GPU Support Supports AMD CrossFireX (3-Way)
Supports NVIDIA SLI (2-way)

Ports & Connectivity - External IO Panel
Ports Present & Quantity 1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
1 x Thunderbolt 3 / USB 3.1 Port (Type-C)
1 x USB 3.1 Port (Type-A)
5 x USB 3.0 Ports
5 x audio jacks
1 x optical S/PDIF Out connector
2 x RJ-45 ports

Ports & Connectivity - Internal IO
Ports Present & Quantity 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x U.2 connector
2 x M.2 Socket 3 connectors
3 x SATA Express connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x front panel header
1 x front panel audio header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x RGB (RGBW) LED strip extension cable header
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS button
1 x ECO button
1 x OC button
1 x audio gain control switch
Voltage Measurement Points
2 x BIOS switches

Storage Interfaces & Controllers
Intel Z270 Express 6 x SATA 6Gb/s (RAID 0,1,5,10)
3 x SATA Express 10Gb/s
1 x M.2 32Gb/s (2242/2260/2280/22110) (PCIe & SATA Mode)
1 x M.2 32Gb/s (2242/2260/2280) (PCIe & SATA Mode)
1 x U.2 32Gb/s

Note: 6 SATA 6Gb/s Ports Reserved for SATA Express

LAN & Networking
Controller 1 x Rivet Networks E2500
1 x Intel GbE LAN
Lan Speed 10/100/1000
Ports 2 x LAN(RJ45) port

Wireless
Wireless N/A
Speed N/A
Features N/A

Audio
Controller Creative Sound Core3D
TI Burr Brown OPA2134 operational amplifier
Support for Sound Blaster Recon3Di
