Gigabyte Z690 Gaming X Intel Z690 Chipset Socket 1700 Motherboard - Z690 GAMING X

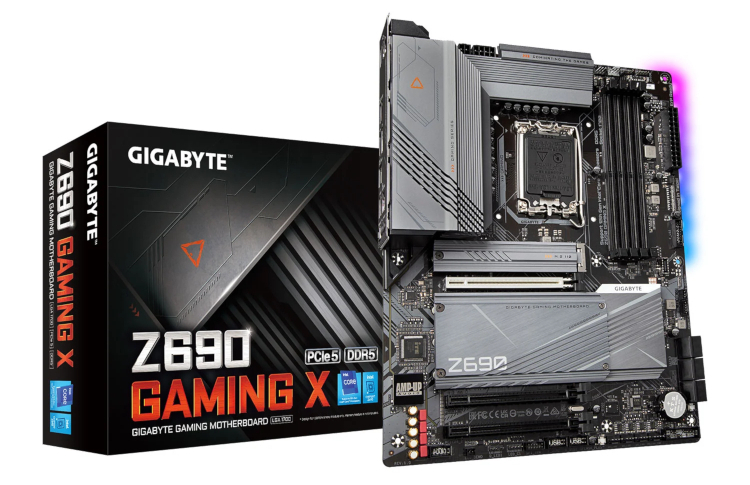

Gigabyte Z690 Gaming X Intel Z690 Chipset (Socket 1700) Motherboard overview

Z690 Gaming X

Intel LGA 1700 Socket: Ready for 12th Gen Intel Core processors

Performance power solution: Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor.

Advanced thermal design: Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Next generation connectivity: 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards, SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds.

Gaming LAN: Fast 2.5 GbE LAN with Bandwidth Management.

RGB Fusion 2.0: Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips.

High Quality Audio: AMP-UP Audio with ALC1220 and WIMA Audio Capacitors.

DIY features: Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.

CPU Support	12th Gen Intel Core processors
Chipset	Intel Z690
Memory Support	4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 4800Mhz non-ECC, un-buffered memory Supports memory overclocking up to 6000MHz NOTE: Actual Memory data rate varies on CPU
Expansion Slots	1 x PCIe 5.0 x16 (x16 Speed) 2 x PCIe 3.0 x16 (x4 Speed)
Onboard Graphics	1 x HDMI 1 x DisplayPort NOTE: Display support varies on CPU
Storage	6 x SATA 6Gb/s 3 x M.2 Key M, 2260/2280/22110, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2260/2280/22110, (SATA & PCIe 4.0 x4 Mode)
RAID	0/1/5/10
USB Rear I/O	1 x USB 3.2 Gen 2x2 20Gbps Type-C 2 x USB 3.2 Gen2 Type-A 3 x USB 3.2 Gen1 Type-A 4 x USB 2.0 Type-A
USB Internal Connectors	1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header)
Thunderbolt	2 x Thunderbolt headers
RGB LED Connectors	2 x addressable LED strip headers 2 x RGB LED strip headers
Audio	Realtek ALC1220-VB Codec 8-Channel (7.1) HD Audio Optical S/PDIF Out
LAN	1 x Realtek 2.5GB LAN
WIRELESS	None
Back Panel Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper
Form Factor	ATX 305mm x 244mm
