LGA1150, LGA1151, LGA1155, LGA1156, 37mm Height with Fan
Sorry, this product is no longer available to purchase.
Please view our whole range of Intel Coolers here
65W TDP
37mm Height
Intel LGA 115X
92mm NF-A9x14 PWM Fan
up to 23.6dBA

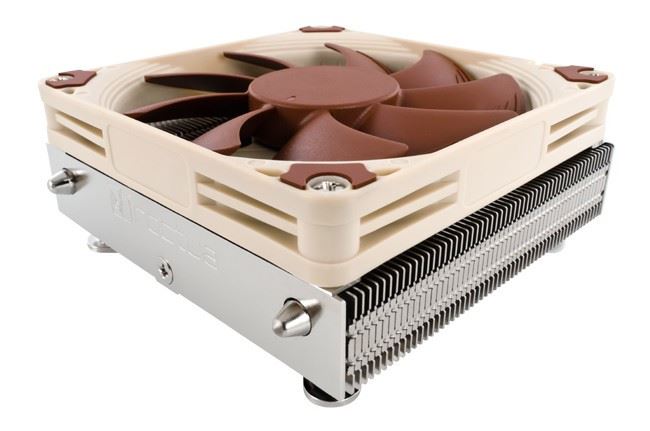

The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The custom designed SecuFirm2™ mounting system for LGA115x makes installation a child’s play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems.
Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.
The NH-L9i has a 95x95mm footprint that complies exactly to the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, so it's fully compatible with tall memory modules.
Most Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.
The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet.
Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800rpm, the included (L.N.A.) makes it possible to achieve near-silent setups using CPUs with less than 65W TDP.
The NH-L9i bundles a custom-designed, backplate-less SecuFirm2™ mounting system for LGA115x that offers extended compatibility with mini-ITX boards and makes installation easier than ever, all while maintaining the trusted SecuFirm2™ quality.
Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTTF rating of more than 150.000 hours and the entire NH-L9i package comes with a full 6-year manufacturer's warranty.
|
||
|
Socket compatibility
Intel LGA1150, LGA1151, LGA1155, LGA1156, AMD AM4 with NM-AM4-L9aL9i
|
||
|
Height (without fan)
23 mm
|
||
|
Width (without fan)
95 mm
|
||
|
Depth (without fan)
95 mm
|
||
|
Height (with fan)
37 mm
|
||
|
Width (with fan)
95 mm
|
||
|
Depth (with fan)
95 mm
|
||
|
Weight (without fan)
345 g
|
||
|
Weight (with fan/s)
420 g
|
||
|
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
|
||
|
Max. TDP
see TDP guide
|
||
|
Fan compatibility
92x92x14mm, 92x92x25mm
|
||
|
Scope of Delivery
|
||
|
Warranty
6 Years
|
|
||
|
Model
Noctua NF-A9x14 PWM
|
||
|
Bearing
SSO2
|
||
|
Max. Rotational Speed (+/- 10%)
2500 RPM
|
||
|
Max. Rotational Speed with L.N.A. (+/- 10%)
1800 RPM
|
||
|
Min. Rotational Speed (PWM, +/-20%)
600 RPM
|
||
|
Max. Airflow
57,5 m³/h
|
||
|
Max. Airflow with L.N.A.
40,8 m³/h
|
||
|
Max. Acoustical Noise
23,6 dB(A)
|
||
|
Max. Acoustical Noise with L.N.A.
14,8 dB(A)
|
||
|
Input Power
2,52 W
|
||
|
Voltage Range
12 V
|
||
|
MTTF
> 150.000 h
|
