Unlock CPU Core: Unlock hidden CPU core and potential
MSI Live Update 4

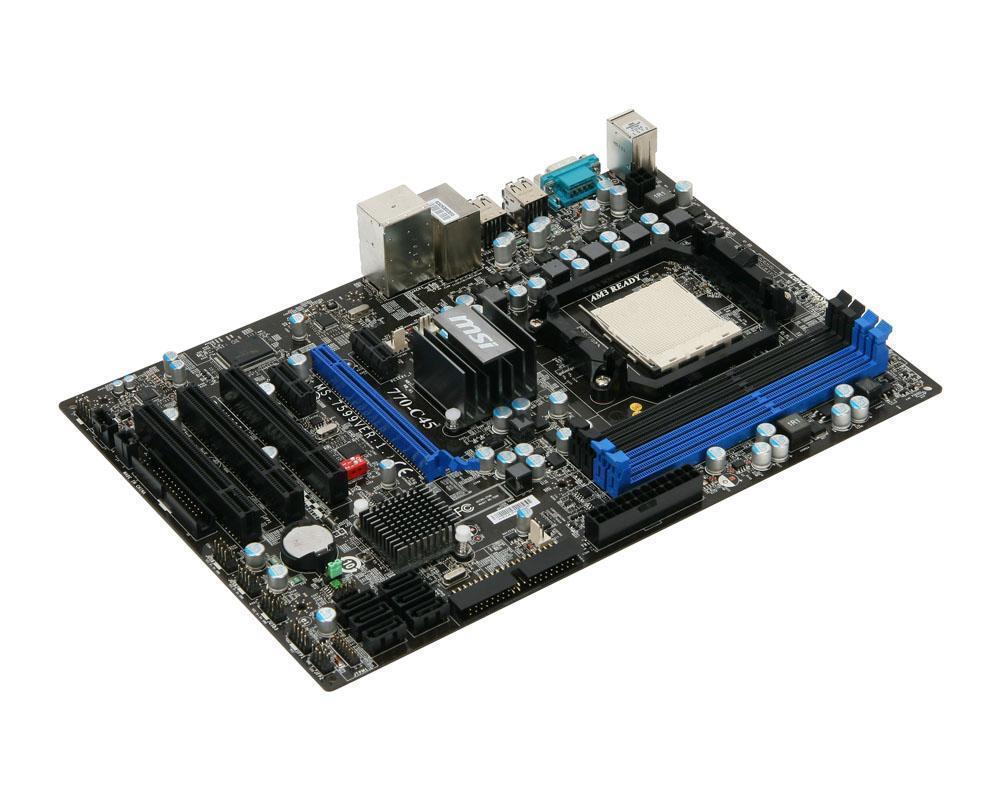

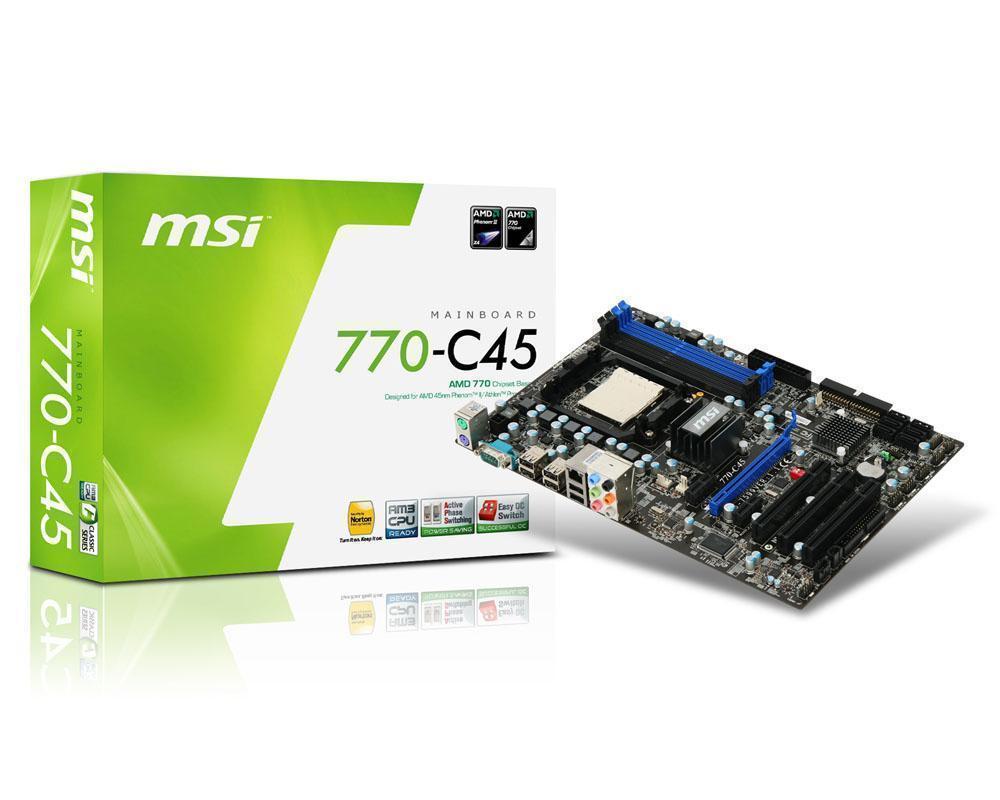

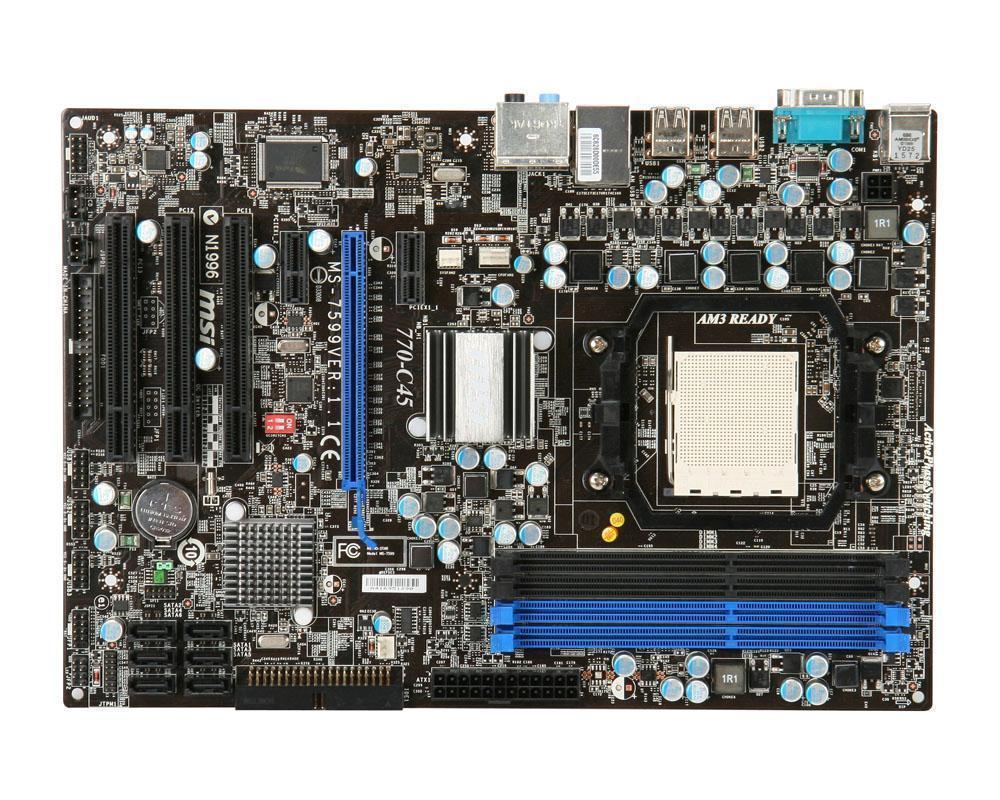

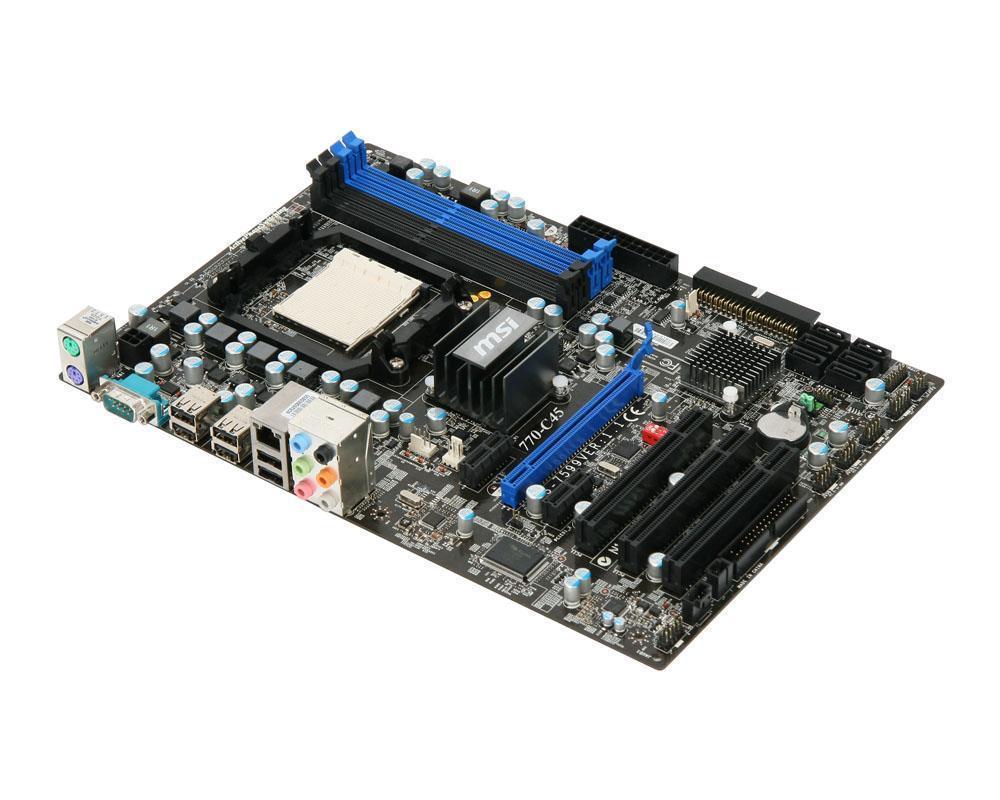

Product Overview
Active Phase Switching (APS)
APS is Active Phase Switching. This is a complete function to control power demand of the CPU, Memory and Chipset by dynamically switching power phases. The end result is that the motherboard uses its power more effectively as it varies the amount required based on the current load.
M-Flash
The BIOS upgrading process can often be very risky. Compared to a common mainboard which needs extra BIOS chips, M-Flash has two advantages. Firstly it doesn’t need extra components and secondly, all your BIOS data will be saved on the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
Unlock CPU Core
Boost your system performance with Unlock CPU core. This system helps the user to unlock the hidden CPU core quickly. Freely choose to lock or unlock the hidden core(s). Boos CPU performance by up to 104%
Easy OC Switch
Every user desires more performance. In order to allow the average user to easily enjoy the fun and performance of overclocking, MSI has designed an Easy OC Switch which is a hardware-based overclocking tool. This great technology makes it easier to tweak the core clock settings. There's no need to have a detailed understanding; with just a few simple settings, everybody will be able to find the best performance for their system. Increase your system performance by up to 30% in seconds with just one click!
MSI Live Update 4
Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs them for you. Obtain a quick and secure update everytime.
General
Part Number
770-C45
Model Number
770-C45
Form Factor
ATX form factor
Width
21.0cm
Depth
30.5cm
Processor Information
Compatible Processors
AMD Phenom II X6/X4/X3/X2 AMD Athlon II X4/X3/X2 AMD Sempron
Socket Type
AM3
Chipset
Chipset Manufacturer
AMD
Chipset Type
AMD 770 / SB710
Memory
RAM Installed / Max Capacity
0 GB / 16 GB
RAM Slots
4 x DDR3 DIMM
Supported RAM Technology
Dual Channel DDR3 SDRAM
Supported RAM Speeds
DDR3 1600(OC)/1333/1066/800 Mhz
Expansion Slots
Expansion Slots Total (Free)
1 x PCIe 2.0 x16 (running at X16)
2 x PCI3 x1
3 x PCI
VGA & Integrated Graphics Options
Video Controller
N/A
Multi-GPU Support
N/A

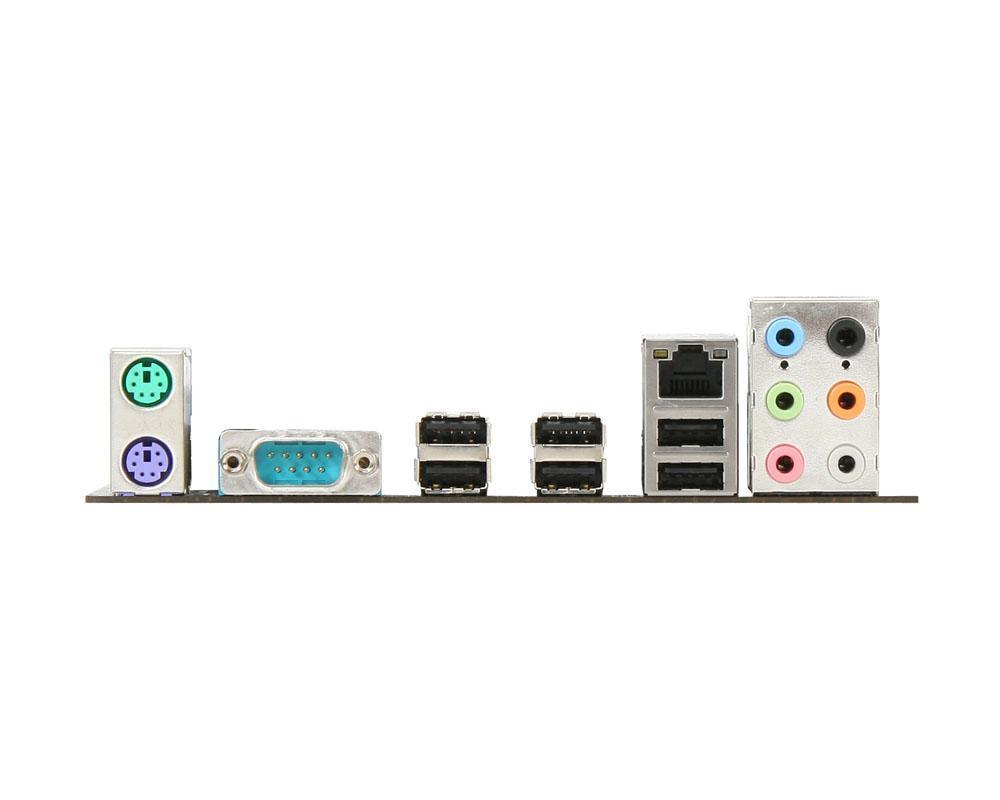

Ports & Connectivity - External IO Panel (Back of Motherboard)
Ports Present & Quantity
1 x PS/2 keyboard
1 x PS/2 mouse
1 x 6 in 1 audio jack
6 x USB 2.0 ports
1 x RJ45 LAN jack
1 x Serial port
ATX 24-pin power connector
ATX 4-pin 12V CPU power connector
CPU x 1 / System x 2 FAN connectors
CD-in connector
Front panel audio connector
Front panel connector
Chassis intrusion switch connector
3 x USB 2.0 connector support additional 6 ports
1 x Floppy disk drive connector
6 x Serial ATA II connectors
1 x ATA133 connector
1 x SPDIF-out connector
Clear CMOS jumper
OC Switch
1 x TPM module header (optional)
Storage Interfaces & Controllers
AMD SB710
6 x SATA 6 Gb/s supports RAID 0/1/0+1 1 x Ultra DMA 66/100/133
LAN & Networking
Controller
Realtek 8111DL
Lan Speed
10/100/1000Mbit
Ports
1 x RJ-45
Audio
Controller/Codec/Information
Realtek ALC888S / ALC885
Flexible 8 channel audio with jack sensing
True Blu-ray Audio Support
Compliant with Azalia 1.0 Spec
