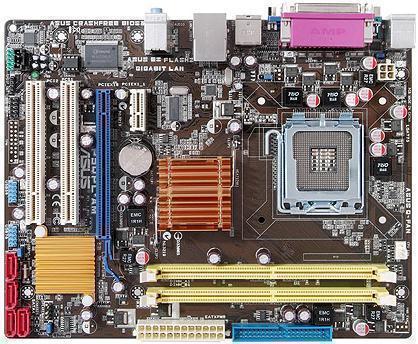

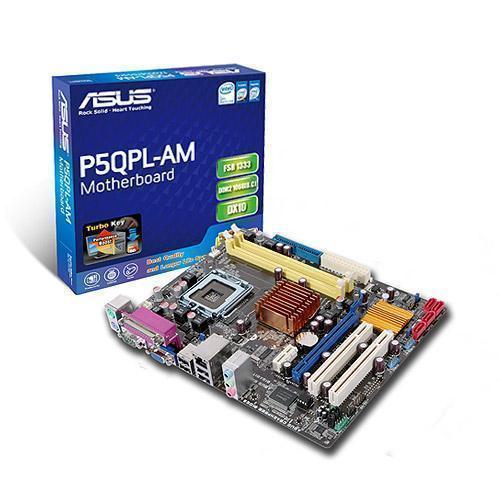

This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1333/1066/800MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
The Intel G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(O.C)/800 / 667 architecture, 1333 / 1066 / 800 FSB (Front Side Bus), and multi-core CPUs.
It is embeded with the next-generation Intel Graphics Media Acceleratior X4500. The Intel G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel Fast Memory Access technology the significantly optimized the use of available memory bandwith and reduces the latency of the memory accesses.
2 x USB connectors support additional 4 USB 2.0 ports
1 x IDE connector
4 x SATA connectors
1 x High definitio front panal audio connector
1 x S/PDIF Out connector System Panel
1 x Internal Speaker connector
1 x CD audio-in connector
24-pin EATX power connector
4-pin ATX 12V power connector
Storage Interfaces & Controllers
SATA Ports
4 x SATA 3 Gb/s ports
IDE Ports
1 x UltraDMA 133/100/66 port
LAN & Networking
Controller
RTL8112L PCIe
Lan Speed
PCIe Gb LAN
Ports
1 x LAN(RJ45) port
Audio
Controller/Codec/Information
High Definition Audio 6 -Channel CODEC
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface
Features & Technologies
Feature List
ASUS MyLogo2
ASUS EZ Flash 2
ASUS Crashfree BIOS 3
ASUS Q-Fan
ASUS Turbo Key
AI NET2
Accessories
Accessories List
User's manual
1 x UltraDMA 133/100/66 cable
1 x SATA cables
I/O Shield
1 x Driver CD
