Designed for Years of Performance

The Obsidian Series 800D is built to last through years of motherboard, power, memory, cooling, and component upgrades.

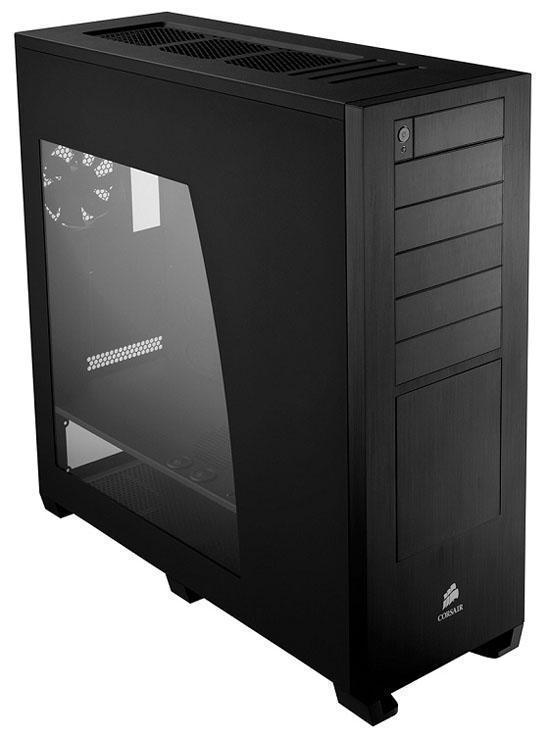

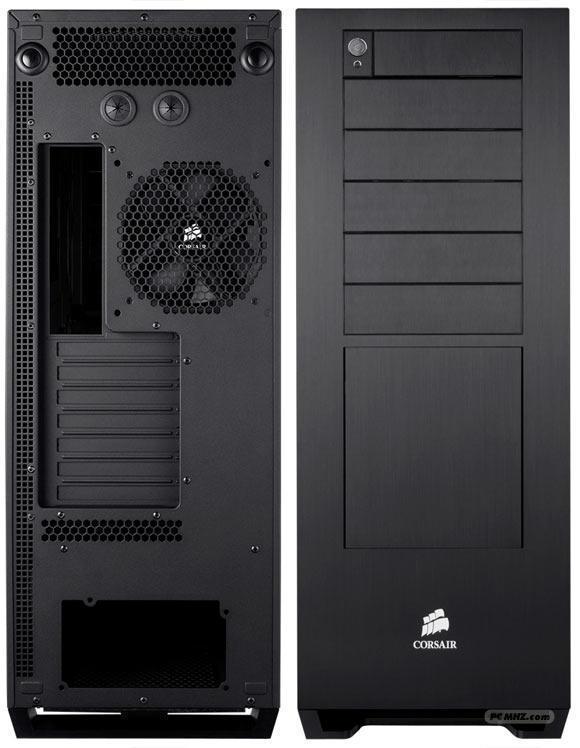

The steel structure has a matte black coating both inside out and is finished with a brushed aluminum faceplate for a professional look that’s both serious and awe-inspiring. A windowed side panel makes it easy to show off your work.

Three Isolated Cooling Zones

The power supply compartment, main compartment and the SATA bays each have dedicated cooling subsystems to prevent heat buildup.

A dust-filtered 140mm fan draws in cold air at the bottom of the chassis and exhausts it at the rear and top. This clever design forces fresh air directly over the graphics card and CPU. The SATA hot-swap bays are cooled by a separate 140mm fan which vents from the chassis via a sealed chamber and prevents the heat generated by the drives from entering the main compartment. The power supply compartment has its own dedicated intake and exhaust, also isolated from the main compartment.

Need even more cooling performance? The Obsidian Series 800D has pre-drilled support for top-mounted single, dual, and triple radiators, or up to three additional 120mm fans.

Advanced Features for Extreme Flexibility

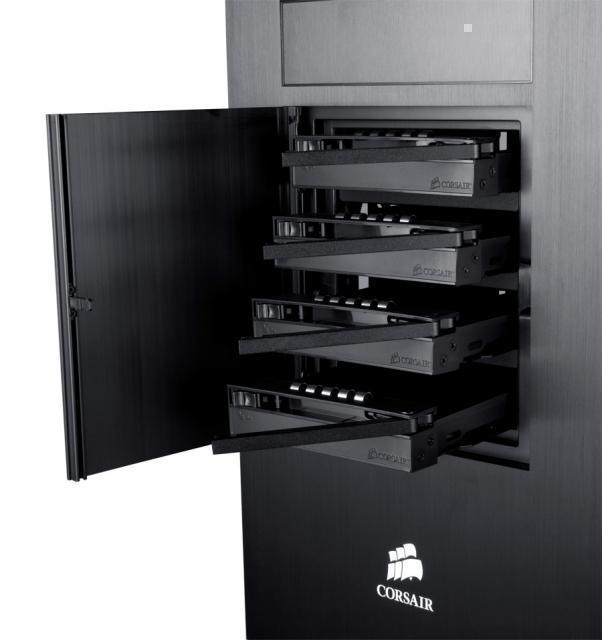

A four-drive SATA hot-swap drive bay sits in the front of the case, making it easier to install or swap hard drives on the fly. A unique cable routing system virtually eliminates cable clutter that can impede airflow. The tool-free design allows for easy entry, easy access, and quick installation of 5.25" drives.

Features include

Four easily accessed hot-swap drive bays

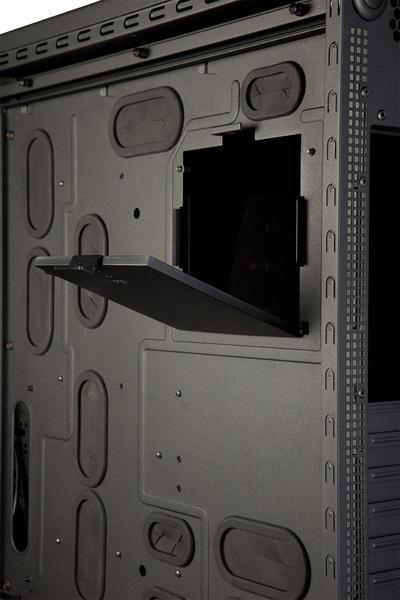

Removable CPU backplate panel for easy heatsink installation

Isolated cooling zones prevent heat buildup

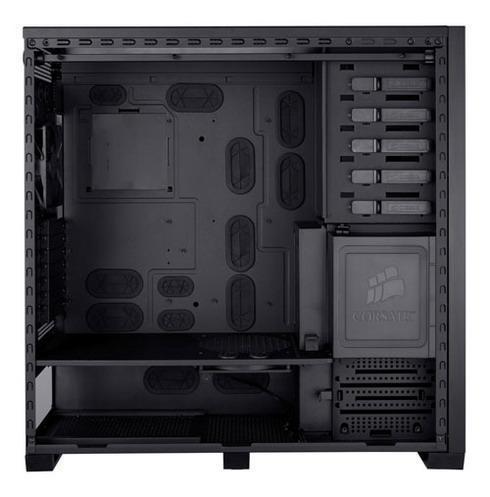

Unique cable routing holes guarantee a clean and clutter-free installation

Three fans included, with the ability to add four more 120mm fans

Tool-free optical drive installation makes building a system faster than ever

Two year warranty with Corsair’s world-class customer service and technical support

General

Part Number	CC800DW
Model Number	CC800DW
Case Form Factor	Full Tower
Dimensions (H x L x W)	609mm x 609mm x 229mm
Front Panel Material	Aluminium Faceplate, Steel Structure
Side Panel Material	Steel
External Colour	Black
Internal Colour	Black

Bays & Expansion

5.25" External	5
3.5" External	2
3.5" Internal	2
Expansion Slots	7 (+1 vent)

Supported Motherboard Formats

Standard ATX	Yes
Micro ATX	Yes

Cooling Features

Installed Fans

(x3) 140mm Fans Up to 4x 120mm Fans (not included)

Connectivity

Connectivity

4 x USB2.0 1 x IEEE1394 1 x Headphone 1 x Mic
