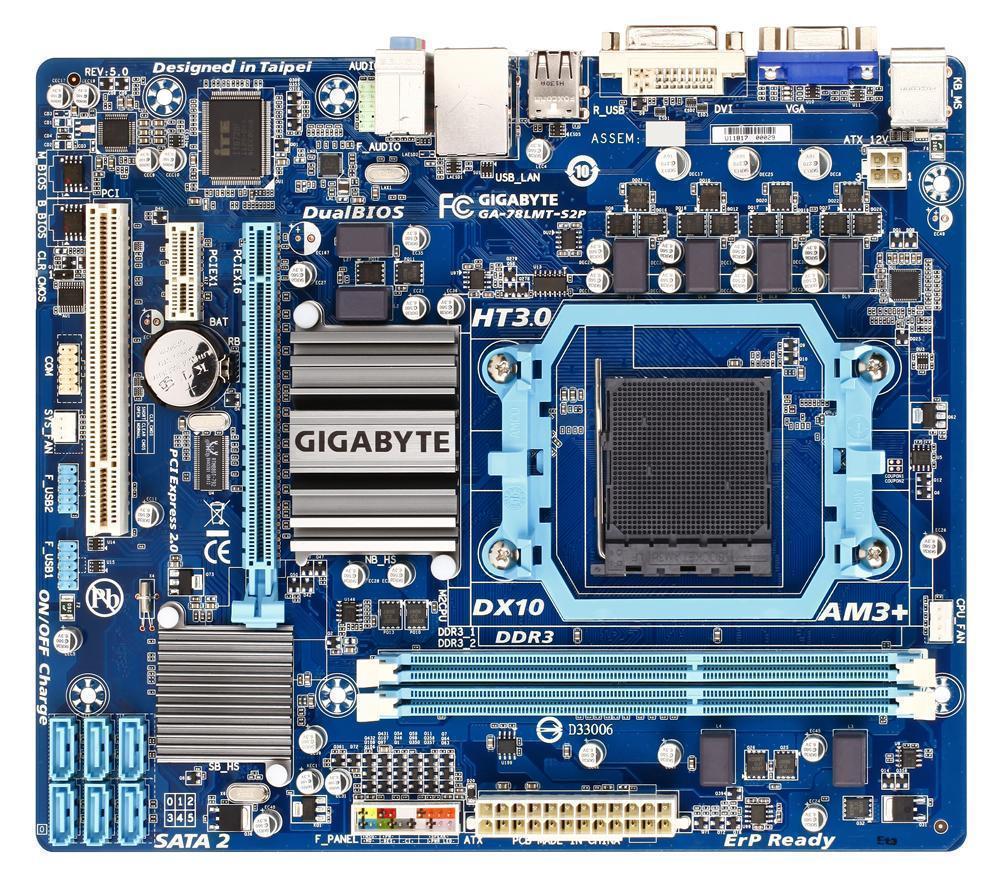

Gigabyte GA-78LMT-S2P AMD 760G (Socket AM3+) Motherboard
AM3+ CPU, mATX, DDR3 (8GB max), Radeon HD 3000, 8 x USB2, 5 x SATA 3Gb/s, RAID, DVI, 7.1 HD Audio
Order Code: GIG-780S2P
Manf.Code: GA-78LMT-S2P
Price:
£34.99 inc vat
CPU, Chipset and Graphics Features
 | AMD FX / Phenom II / Athlon II / Sempron 100 Series Processors
This motherboard supports AMD AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 4800MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process. |
|
AMD 760G Chipset The AMD 760G Chipset with ATI Radeon 3000 graphics combines the performance of DirectX 10 with a price that's hard to beat. Paired with an AMD Athlon X2 dual-core processor, the system is perfect for everyday computing for your home or home business. Systems based on the AMD 760G chipset and AMD Athlon dual-core processors are loaded with some of today's latest technologies that are ideal for downloading media, sharing files, or for novice gamers. Get one now and see for yourself! |
|
Get Ready for New Generation of 32nm AMD AM3+ CPU GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming. |
 |
Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 PhenomII series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. |
 |
ATI Hybrid CrossfireX Support ATI Hybrid Graphics is a technology umbrella brand encompassing several technologies, such as ATI Hybrid CrossFireX, ATI SurroundView, ATI PowerPlay etc. that allow both an AMD integrated graphics processor and a discrete graphics processor to work co-operatively on an AMD based system to provide enhanced gaming performance, productivity and platform efficiency to the mainstream PC. |
Memory Features
 |
Supports DDR3 1333+ Delivering native support for DDR3 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. |
Other Features
 |
50,000 Hours All Solid Capacitors GIGABYTE Ultra Durable motherboards are equipped with all solid capacitors. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games. |
 |
DualBIOS 3TB+ HDD Support (Hybrid EFI Technology) Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website. GIGABYTE DualBIOS is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive. |
 |
On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. |
 |
EC AOD-ACC Support EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive utility further than it was previously possible. |
 |
EasyTune6 GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. |
 |
Qualified for Windows 7 The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft, setting the standard for future Windows 7 certified motherboards. |
 |
ErP Lot 6 support The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency. |
General
| Part Number | GA-78LMT-S2P |
| Model Number | GA-78LMT-S2P |
| Form Factor | Micro ATX |
| Width | 24.4cm |
| Depth | 20.6m |
Processor Information
| Compatible Processors | FX Phenom II Athlon II |
| Socket Type | AM3+ |
Note: Please refer to www.gigabyte.com for CPU Support List
Chipset
| Chipset Manufacturer | AMD |
| Chipset Type | 760G / SB710 |
Memory
| RAM Installed / Max Capacity | 0 MB / 8 GB Max |
| RAM Slots | 2 x DDR3 DIMM |
| Supported RAM Technology | Dual Channel DDR3 SDRAM |
| Supported RAM Speeds | DDR3 1333+(O.C)/1066/800 MHz |
Expansion Slots
| Expansion Slots Total (Free) | 1 x PCIe 2.0 x16 (running at x16)
1 x PCIe 2.0 x1 1 x PCI |
VGA & Integrated Graphics Options
| Video Controller | Integrated ATI Radeon HD 3000 |
| Multi-GPU Support | ATI Hybrid CrossfireX |

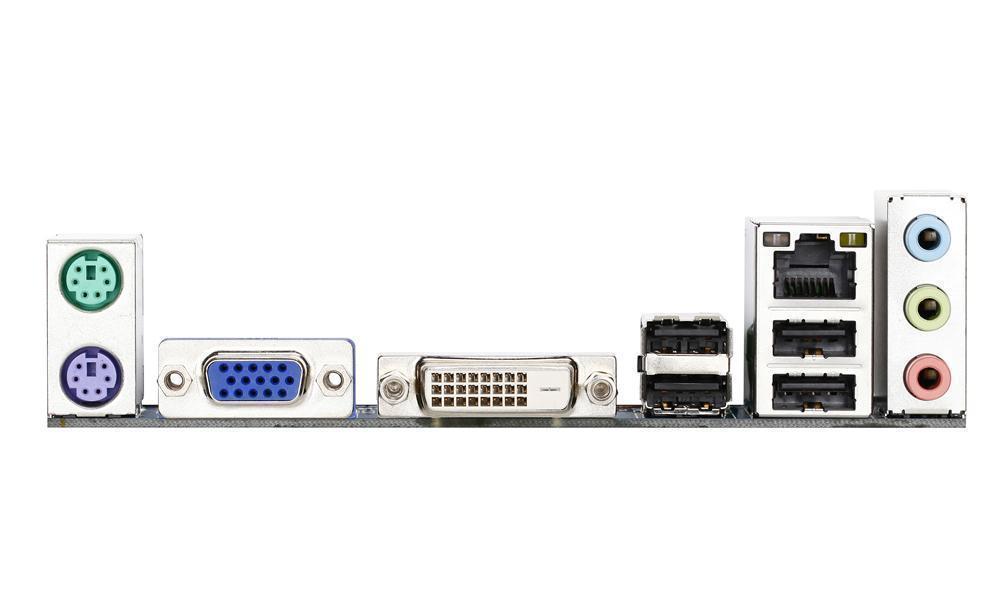

Ports & Connectivity - External IO Panel (Back of Motherboard)
| Ports Present & Quantity | 1 x PS/2 keyboard port
1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Ports & Connectivity - Internal IO (Header pins on Motherboard - Inside Case)
| Ports Present & Quantity | 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector 6 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x clearing CMOS jumper |
Storage Interfaces & Controllers
| AMD SB710 Chipset | 6 x SATA 3Gb/s (RAID 0,1,10) |
LAN & Networking
| Controller | Atheros |
| Lan Speed | 10/100/1000 |
| Ports | 1 x LAN(RJ45) port |
Audio
| Controller/Codec/Information | Realtek
High Definition Audio 2/4/5.1/7.1-channel |
Features & Technologies
| Feature List | Support for @BIOS
Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune Support for Smart Recovery Support for Auto Green Support for ON/OFF Charge Support for Cloud OC Support for Q-Share Support 3TB+ Unlock |
