Product Features

Dual-WAN approach - ADSL2+ or Ethernet WAN for Broadband Connectivity

4-port Gigabit Switch

Supports Draft-802.11n Wireless Access Point with WPA-PSK / WPA2-PSK

High-speed Internet Access via ADSL2/2+; Backwards Compatible with ADSL

WPS (Wi-Fi Protected Setup) for Easy Setup

Wireless Speed up to 300Mbps and 3 Times the Coverage of Standard 802.11b/g

Quality of Service Control for Traffic Prioritization and Bandwidth Management

SOHO Firewall Security with DoS Prevention and Packet Filtering

Universal Plug and Play (UPnP) Compliance

Dynamic Domain Name System (DDNS)

Available Syslog monitoring

Ease of Use with Quick Installation Wizard and Auto-scan ADSL settings

Supports IPTV Applications

The Second Ethernet WAN

The BiPAC 7800(N) series uses a Dual-WAN approach with an ADSL2+ port and a separate RJ-45 WAN port that offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems.

Express Internet Access

The BiPAC 7800(N) series is compliant with worldwide ADSL standards, and supports download rates of up to 12/24Mbps using ADSL2/2+, 8Mbps using ADSL and an upload rate of up to 1Mbps. The integrated Annex M standard supports ADSL2/2+ for higher uploads by doubling the upload data rate. The 4-port Gigabit Switch incorporated into the BiPAC 7800(N) enables users to connect to multiple computers or wired-Ethernet devices easily and enjoy blistering LAN transmission for multimedia applications such as interactive gaming, IPTV video streaming and real-time audio.

Smooth, Responsive Net Connection

Quality of Service (QoS) gives users full control over outgoing data traffic. Priority can be assigned by the router to ensure that important transmissions like gaming packets, VoIP calls or IPTV/streaming content passes through the router at lightning speed, even when there is heavy Internet traffic. The speed of different types of outgoing data passing through the router is also controlled to ensure that users do not saturate bandwidth with their browsing activities.

Robust Firewall Security

The NAT default firewall has advanced anti-hacker pattern-filtering protection features that automatically detect and block Denial of Service (DoS) attacks. In addition, Packet Filtering provides high-level security for access control. Built with Stateful Packet Inspection (SPI), the router enables users to determine whether or not a data packet is allowed to pass through the firewall to the private LAN.

Optimal Wireless Speeds and Coverage (BiPAC 7800N)

With an integrated Draft-802.11n Wireless Access Point, the router delivers up to 6 times the speed and 3 times the wireless coverage of an 802.11b/g network device. It supports a data rates up to 300Mbps and is also compatible with 802.11b/g equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button. If the network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows users to expand the wireless network without the need for any external wires or cables

Hardware Features

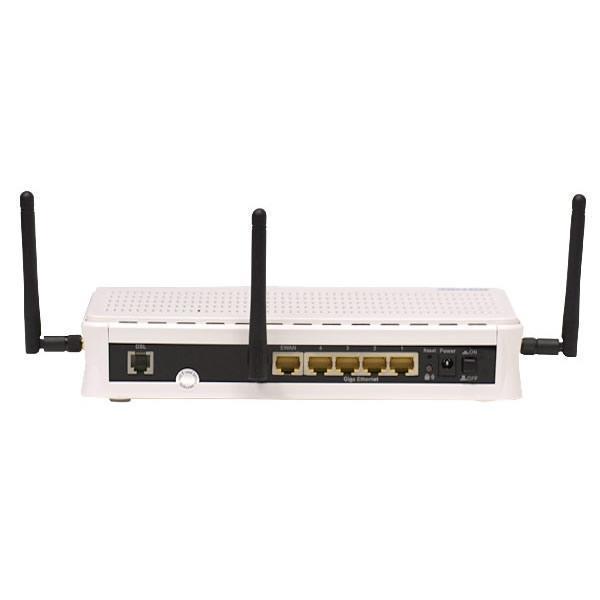

Interface	4 x 10/100/1000 Mbps LAN Ports 1 x RJ11 Port 1 x RJ45 WAN Port
Button	1 x Power Button 1 x WPS Button
Power Supply	External Power Supply
Dimensions(WxDxH)	229 x 155 x 37mm
Antenna Type	Omni-Directional
Antenna Gain	3 x 2dBi

ADSL Specification

ADSL Standards	Full-rate ANSI T1.413 Issue 2 G.dmt (ITU G.992.1) G.lite (ITU G.992.2) G.hs (ITU G.994.1) ADSL over ISDN/U-R2
ADSL2 Standards	G.dmt.bis (ITU G.992.3)
ADSL2+ Standards	G.dmt.bis plus (ITU G.992.5)

Wireless Features

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Frequency	2.400-2.4835GHz
Wireless Transfer Speed	Up to 300Mbps
Wireless Security	64/128 bits WEP Supported for Encryption WPA-PSK/ WPA2-PSK Support WPS (Wi-Fi Protected Setup)

Other Features

Network Protocols and Features	NAT, static routing and RIP-1 / 2 Universal Plug and Play (UPnP) Compliant Dynamic Domain Name System (DDNS) Virtual Server and DMZ SNTP, DNS relay and IGMP Proxy IGMP snooping for video service Firewall
Firewall	Built-in NAT Firewall Stateful Packet Inspection (SPI) Prevents DoS attacks including Land Attack, Ping of Death, etc. Remote access control for web base access Packet and URL filtering Password protection for system management VPN pass-through
Quality of Service Control	Supports the DiffServ approach Traffic prioritization based-on IP protocol,port number and address
ATM and PPP Protocols	ATM Adaptation Layer Type 5 (AAL5) Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483) Bridged or routed Ethernet encapsulation VC and LLC based multiplexing PPP over Ethernet (PPPoE) PPP over ATM (RFC 2364) Classical IP over ATM (RFC 1577) MAC Encapsulated Routing (RFC 1483 MER) OAM F4 / F5
IPTV Applications	IGMP Snooping Virtual LAN (VLAN) Quality of Service (QoS)
Management	Quick Installation Wizard and Auto-scan ADSL settings Web-based GUI for remote and local management Firmware upgrade and configuration data upload and download via web-based GUI Embedded Telnet server for remote and local management Available Syslog monitoring Supports DHCP server / client / relay TR-069*3 supports remote management
