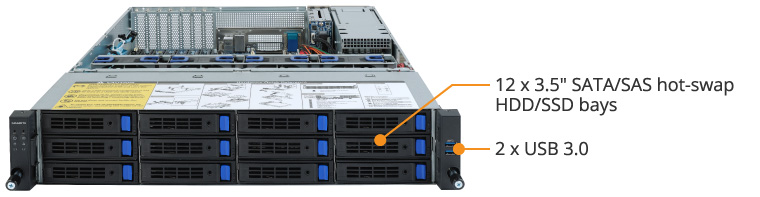

Customise your HyperServe RME2-2U14

PCIe Gen 4.0 Ready

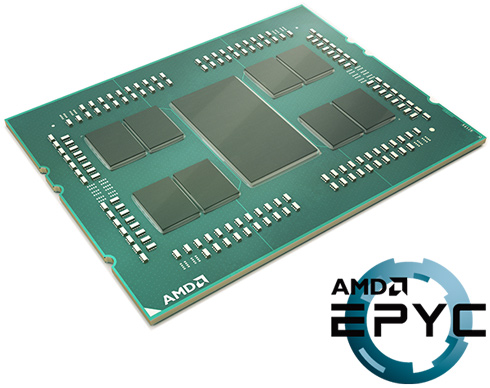

AMD EPYC Rome is the world’s first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.
* The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).

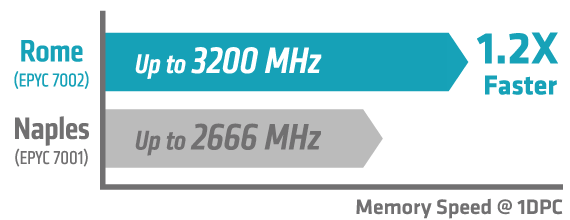

Higher Memory Speed

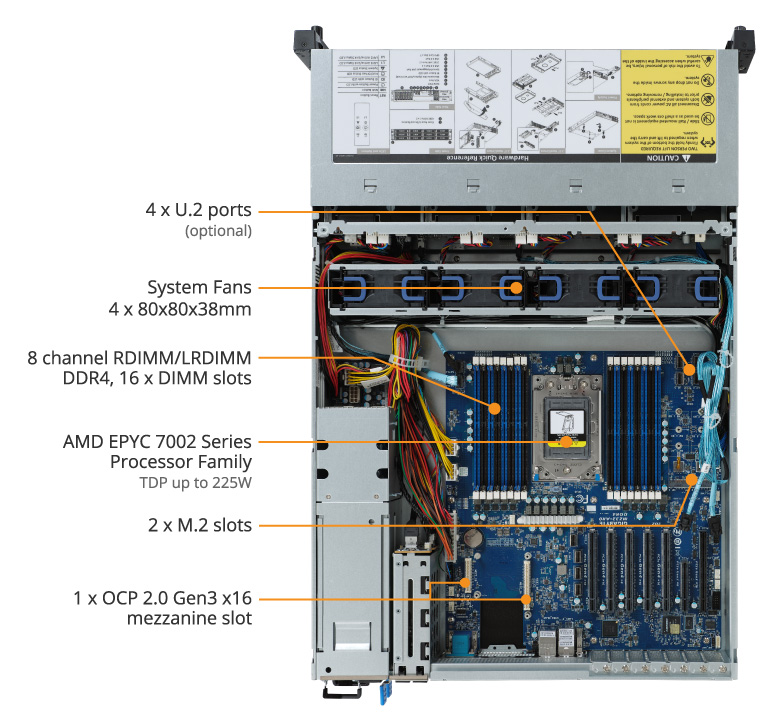

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

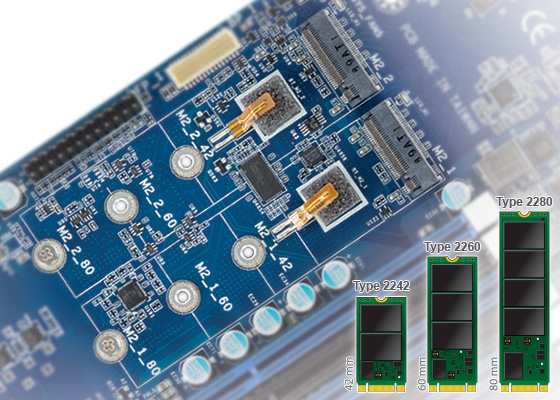

More M.2 Storage

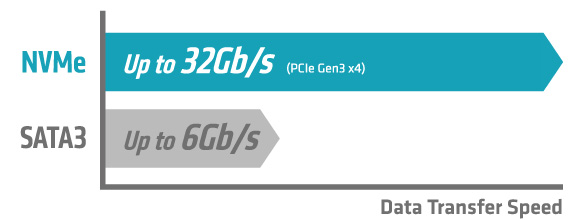

GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.

Data Security

TPM 2.0 Module - GIGABYTE’s AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

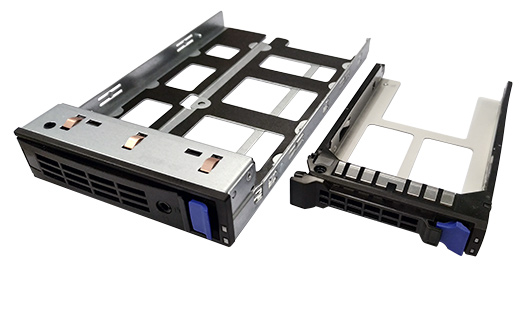

Tool-less 2.5” & 3.5” Drive Bays

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

GIGABYTE BMC Interface

GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:

• No need to install core components such as CPUs, memory, drives and OS
• No need to power on the system (NB. PSU must be connected)
• Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line)

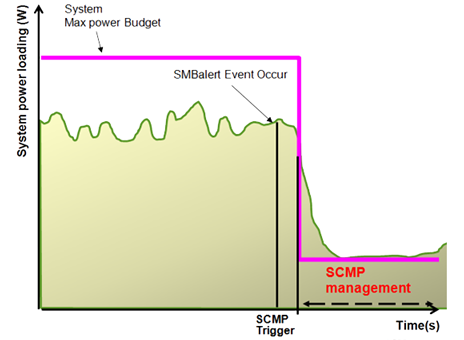

SCMP (Smart Crises Management / Protection)

SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.

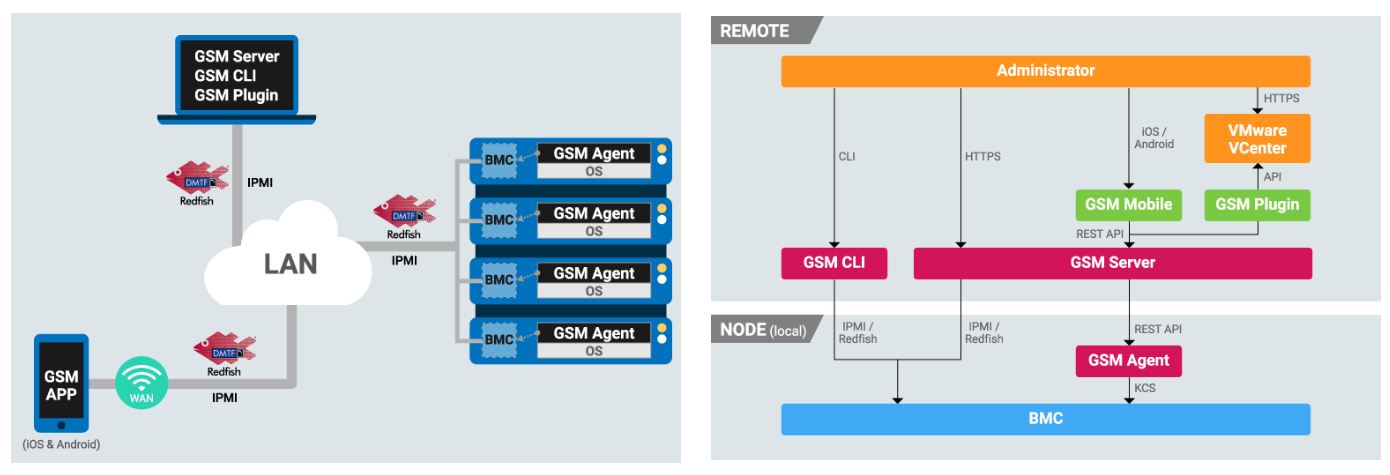

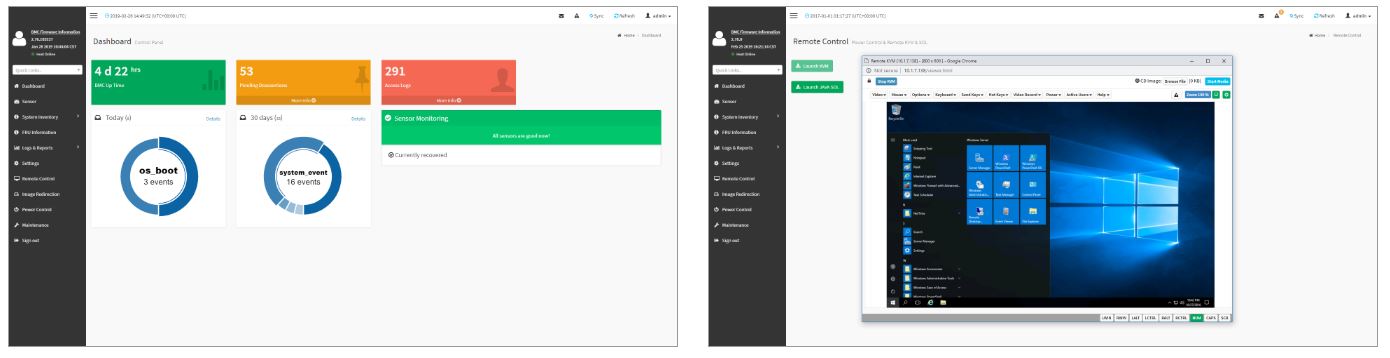

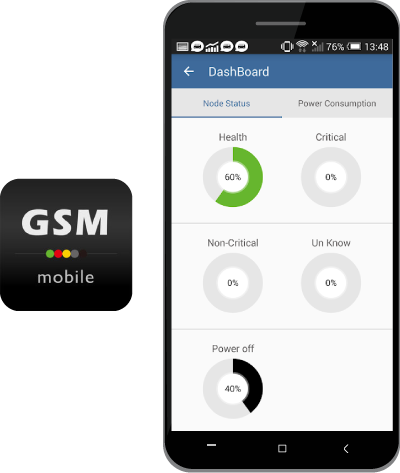

Intuitive & Informative User Interface

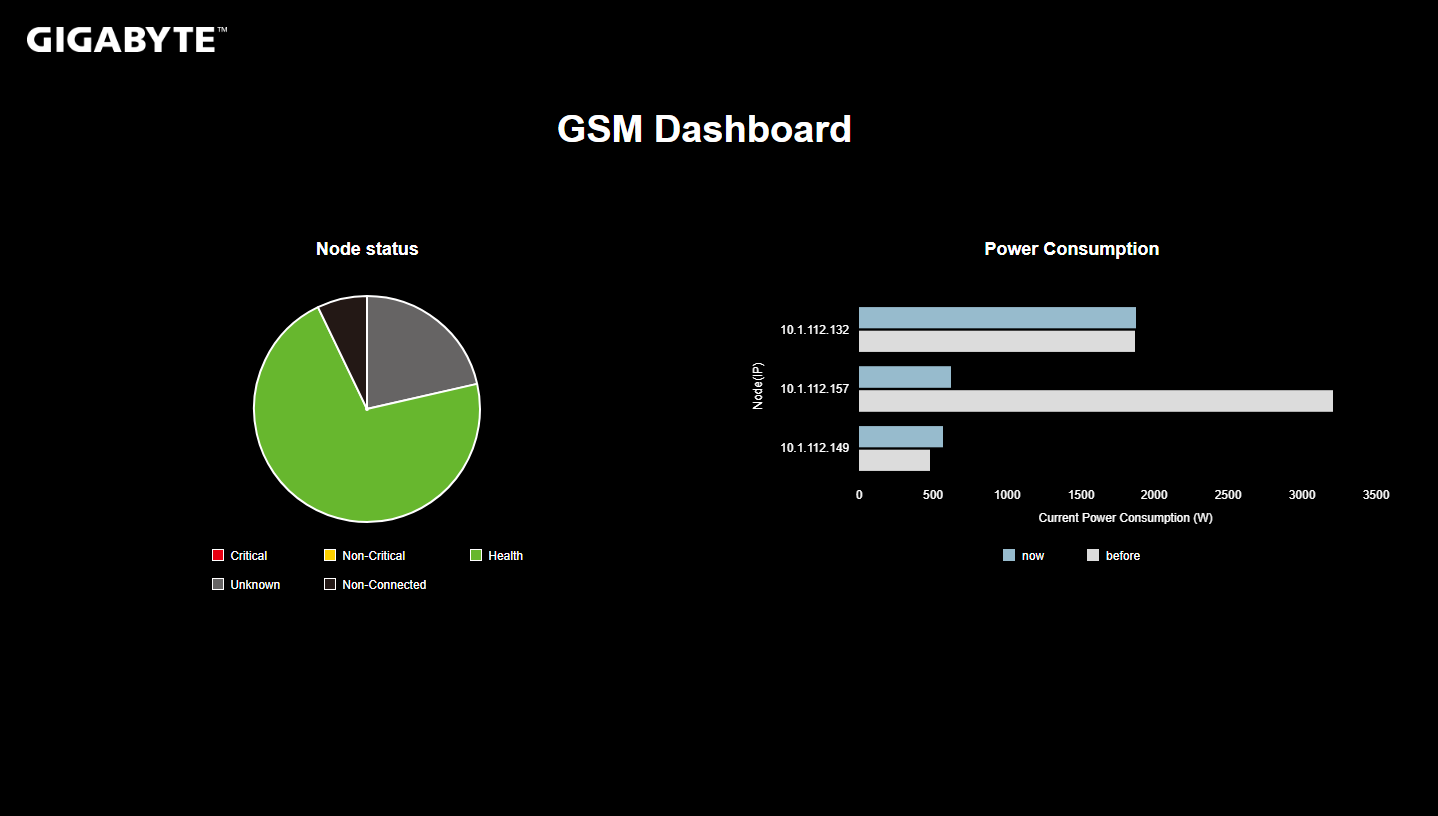

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

• Node connection status (system is online/offline)
• Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature
• Node usage rate status (allowing you to timely allocate more resources when they are needed), including:
  • Power consumption
  • Disk/RAID usage information
  • Memory usage rate
  • CPU usage rate
  • Network card / PCI information

The user can also perform various management functions, including:

• Node remote access
  • Power on / off / reset
  • Launch iKVM
  • Reboot BMC / BMC Account Configuration
• Network Configuration
  • IPv4/IPv6 setting
• Alert Management
  • SNMP trap setting
  • Platform events filters
  • Forwarding alerts by email
• BMC / BIOS / CPLD Update
• Power Consumption Limit Setting
• Group Management
  • Create groups of nodes for BMC / BIOS update or manage power consumption settings

Management through VMware vCenter

A GSM Plugin is available for VMware’s vCenter, allowing the user to perform remote monitoring and management of GIGABYTE server nodes without having to switch to a separate software platform.

AMI MegaRAC SP-X BMC Management Platform

This GIGABYTE server product utilizes a AMI MegaRAC SP-X platform for BMC server management, with a feature rich and easy to use browser-based graphical user interface. Notable features include:

• RESTful API support (including the latest DMTF standards of Redfish) allows the administrator to integrate with 3rd party applications for server management
• HTML5-based iKVM remote management client included as a standard feature, no additional add-on license required to purchase
• Detailed FRU information from SMBIOS
• Pre-event automatic video recording feature from 10 to 30 seconds
• SAS / RAID controller monitoring feature

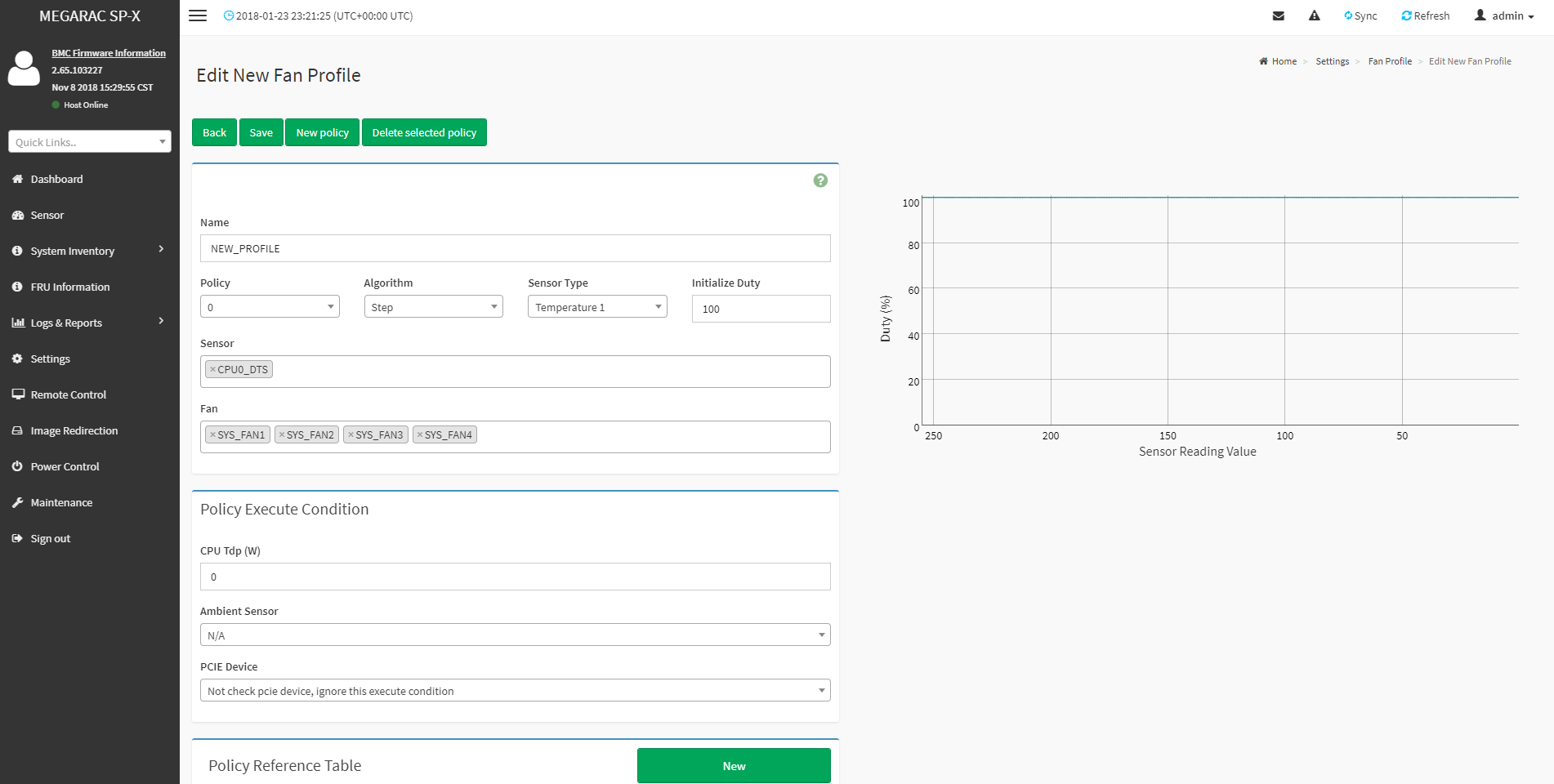

Dynamic Fan Speed Control

GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements.
