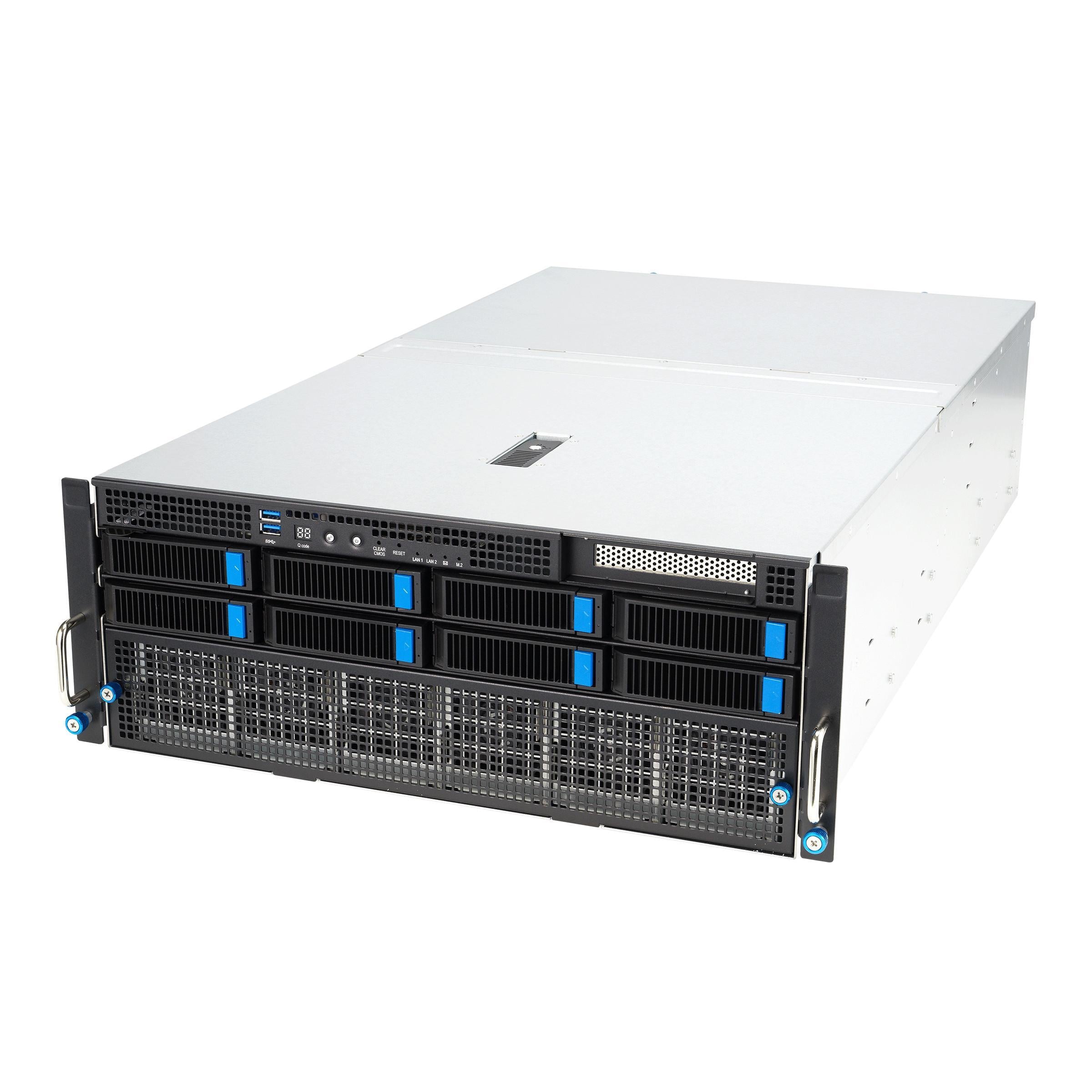

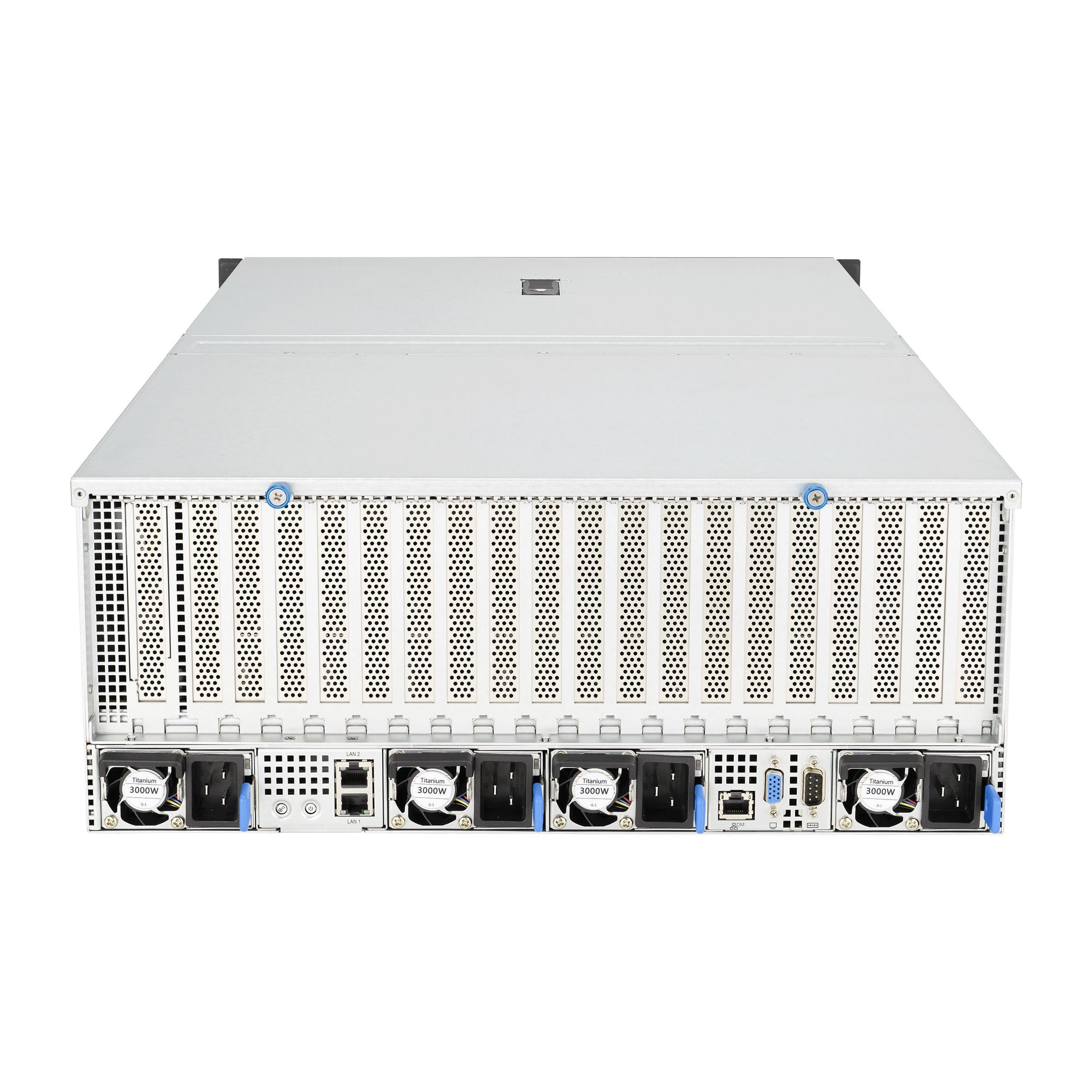

Customise your HyperServe RMEG-4U8-8G
- Dual AMD EPYC™ 9004 series processors
- 12-Channel RDIMM/3DS RDIMM DDR5 per processor, 24 x DIMMs
- 2 x 10GbE LAN ports (RJ45, X710, 1 x Management Port (RJ45)
- 8 x 3.5" Front Hot-swap Stroage Bays, 1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)
- 8 x FHFL Gen5 expansion slots for GPU cards
- 2+2 Redundant 3000W 80 PLUS Platinum Power Supply
- 4U, 800mm Depth
Configure from £11838.11 inc VAT
or
| CPU Support | AMD EPYC™ 9004 series(up to 400W) 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology |
| Socket | 2 x Socket (LGA 6096) |
| Memory | Total Slots:24 (12 channel per CPU, 12 DIMM per CPU) Capacity :Maximum up to 3TB per CPU socket Memory Type : DDR5 4800/4400 RDIMM/ 3DS RDIMM Memory Size : 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS |
| Expansion Slots | Total PCI-E Slots:8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot
GPU cards 2PCIe + 2NVMe |
| Storage | Optional Kits: -Broadcom MegaRAID 9560-16i -Broadcom MegaRAID 9540-8i -ASUS PIKE II 3008 8-port HBA Card -ASUS PIKE II 3108 8-port HW RAID Card |
| Storage Bays | 8 x 3.5"/2.5" Front Hot-swap Storage Bays (Backplane supports up to 8 x NVMe/SATA/SAS**) **SAS support requires an optional HBA/RAID card 1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link) |
| Networking | 2 x 10GbE LAN ports (RJ45, X710-AT2) + 1 x Mgmt LAN |
| Graphics | Please find the latest GPU support from https://servers.asus.com/support/gpu |
| I/O Ports | Front:1 x VGA port, 2 x USB 3.2 Gen1 ports Rear:1 x COM port, 2 x 10GbE/1GbE LAN ports, 1 x Management port (RJ45) |
| OS Support | Linux 64-bit RHEL 9.X ESXi 8.0 Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center Enterprise (in-band) ASMB11-iKVM for (out-of-band/BMC AST2600) |
| Regulatory Compliance | BSMI, CB, CE, FCC(Class A), RCM |
| Dimensions | 800mm x 440mm x 174.5mm |
| Form Factor | 4U |
| Weight | Net Weight: 27 Kg Gross Weight: 52 Kg |
| Power Supply | 2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply |
| Environment | Operation temperature: 10c ~ 35c Non operation temperature: -40c ~ 70c Non operation humidity: 20% ~ 90% ( Non condensing) |
Processor
Default part
AMD EPYC Genoa Dual Socket Processors
1
x
AMD EPYC Genoa 9124, 16 Core 32 Threads, 3.0GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9224, 24 Core 48 Threads, 2.50GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9254, 24 Core 48 Threads, 2.90GHz, 128MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9334, 32 Core 64 Threads, 2.70GHz, 128MB Cache, 210Watts.
1
x
AMD EPYC Genoa 9354, 32 Core 64 Threads, 3.25GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9454, 48 Core 96 Threads, 2.75GHz, 256MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9534, 64 Core 128 Threads, 2.45GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9554, 64 Core 128 Threads, 3.10GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9634, 84 Core 168 Threads, 2.25GHz, 384MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9654, 96 Core 192 Threads, 2.40GHz, 384MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9754, 128 Core 256 Threads,2.25GHz, 256MB Cache, 360Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Graphics
Default part
NVIDIA Blackwell Graphics Cards
1
x
PNY NVIDIA RTX PRO 4000 Blackwell 24GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 4500 Blackwell 32GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 48GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 72GB GDDR7 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB GDDR7 ECC Pro Graphics Card
NVIDIA Ada Lovelace Graphics Card
1
x
PNY NVIDIA RTX 4000 ADA 20GB GDDR6 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX 6000 ADA 48GB GDDR6 ECC Pro Graphics Card - OEM
NVIDIA Data Center Graphics Cards
1
x
PNY NVIDIA A2 16GB GDDR6 ECC Data Centre GPU
1
x
PNY NVIDIA A16 64GB GDDR6 ECC Data Centre GPU
1
x
PNY NVIDIA L4 24GB GDDR6 Data Centre GPU - Passive Cooling
1
x
PNY NVIDIA L40 48GB GDDR6 ECC Data Centre GPU - Passive Cooling
1
x
PNY NVIDIA L40S 48GB GDDR6 ECC Data Centre GPU - Passive Cooling
Raid Controller
Default part
Broadcom RAID Controllers
Broadcom MegaRAID 9361-8i 8 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9380-8I8E 8 Port Internal, 8 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom 9560-8i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4
Broadcom 9560-16i 12GB/s SAS/SATA/NVMe RAID Controller, 8Gb Cache, PCIE Gen 4
Graid SupremeRAID Cards
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1000
Graid Technology SupremeRAID Core Software Module License with full Features support 8 Native NVMe drives Bundled SR-1001
Graid Technology SupremeRAID Core Software Module License with full Features support 12 Native NVMe drives Bundled SR-1001
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1010
M.2 Storage
Samsung PM9A3 M.2 NVMe Data Centre
0
Samsung PM9A3 960GB M.2 NVME PCIE 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB M.2 NVME PCIE 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB M.2 NVME PCIE 4.0 Datacentre SSD
Harddrives
Filter by:
Micron 9400 MAX Enterprise U.3 NVMe - 3 DWPD
0
Micron 9400 MAX 6.4TB U.3 NVME SSD
0
Micron 9400 MAX 12.8TB U.3 NVME SSD
0
Micron 9400 MAX 25.6TB U.3 NVME SSD
Micron 9400 Pro Enterprise U.3 NVMe - 1 DWPD
0
Micron 9400 Pro 7.68TB U.3 NVME SSD
0
Micron 9400 Pro 15.36TB U.3 NVME SSD
0
Micron 9400 Pro 30.7TB U.3 NVME SSD
Solidigm D7 Series U.2 NVME SSD's
0
Solidigm D7 Series P1030 1.6TB U.2 NVME PCIE 5.0 2.5" SSD
0
Solidigm D7 Series P1030 3.2TB U.2 NVME PCIE 5.0 2.5" SSD
0
Solidigm D7 Series P1030 6.4TB U.2 NVME PCIE 5.0 2.5" SSD
0
Solidigm D7 Series P1030 12.8TB U.2 NVME PCIE 5.0 2.5" SSD
Samsung PM9A3 2.5" U.2 NVME Data Centre
0
Samsung PM9A3 960GB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 7.68TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
Seagate SAS 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise HArd Drive 2TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SAS
0
Seagate Exo 7E10 Enterprise Hard Drive 6TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SAS
0
Seagate Exos X24 Enterprise Hard Drive 12TB SAS
0
Seagate Exo X24 Enterprise Hard Drive 16TB SAS
0
Seagate Exo X24 Enterprise Hard Drive 20TB SAS
0
Seagate Exos X24 Enterprise Hard Drive 24TB SAS
Seagate SATA 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise Hard Drive 2TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 6TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 12TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 16TB SATA
0
Seagate Exos X24 ENterprise Hard Drive 20TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 24TB SATA
Power Supply
Networking
Rail Kit
Operating System
Default part
Open Source Linux
Open Source Linux Installed and Setup as per Customer Instructions
Standard build time 5 working days
