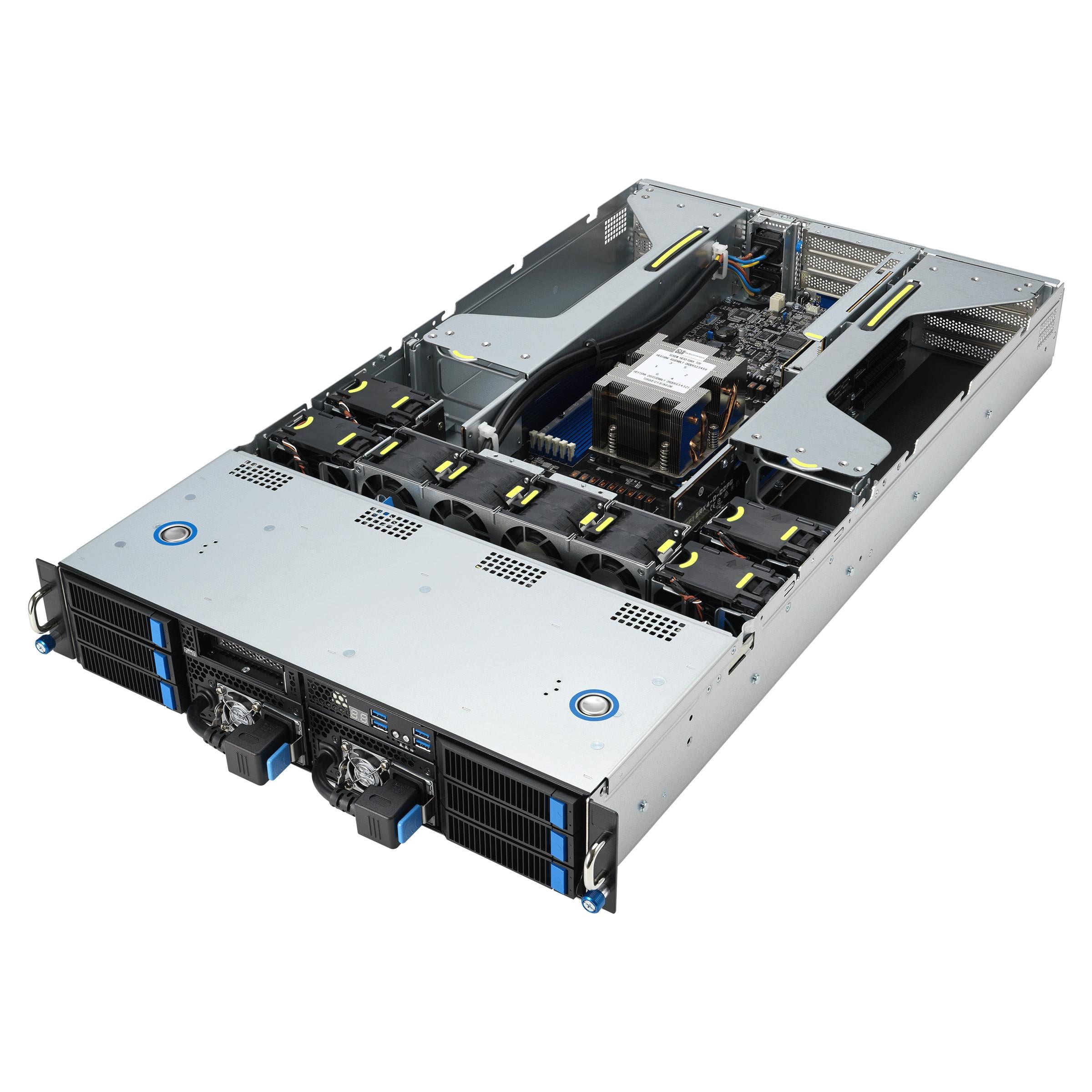

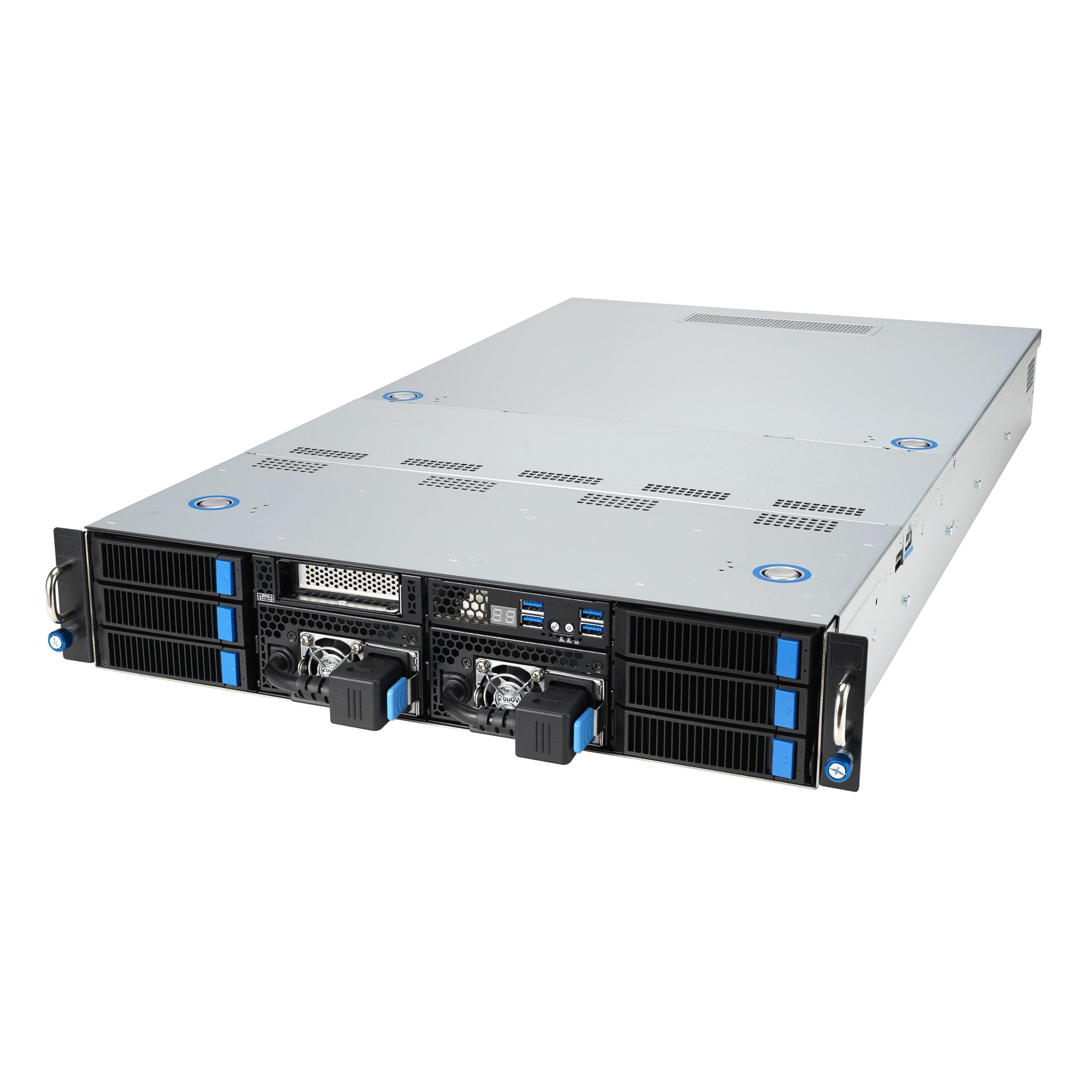

Customise your HyperServe RMEG-2U-4G
- Single AMD EPYC™ 9005 series processor
- 12-Channel RDIMM/3DS RDIMM DDR5, 12 x DIMMs
- 2 x GbE LAN ports (Intel I350 Controller), 1 x Management Port
- 2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays
- 4 x FHFL Gen5 expansion slots for GPU cards
- 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply
- 2U, 800mm Depth
Configure from £5993.62 inc VAT
or
| CPU Support | AMD EPYC™ 9004 series(up to 400W) 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology |
| Socket | 1 x Socket SP5 (LGA 6096) |
| Memory | Total Slots:12 (12-channel) Capacity :Maximum up to 3TB RDIMM Memory Type : DDR5 4800/4400 RDIMM/RDIMM 3DS Memory Size : 64GB, 32GB, 16GB RDIMM 256GB, 128GB 3DS RDIMM |
| Expansion Slots | Total PCI-E Slots:8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot
GPU cards Rear: -1 x PCIe x16 slots (Gen5 x16 link, FH, HL) Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1 |
| Storage | Storage Controller: CPU Integrated Optional kits: ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i |
| Storage Bays | 2 x 2.5” & 4 x 3.5“ Hot-swap Storage Bays 2 x 2.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS* *RAID card is required to support SAS hard drives **2 x NVMe support required a RAID card. |
| Networking | 2 x GbE LAN ports (Intel I350 Controller) + 1 x Mgmt LAN |
| Graphics | Please find the latest GPU support from https://servers.asus.com/support/gpu |
| I/O Ports | Front: 1 x Q-code/port-80 LED, 4 x USB 3.2 Gen1 ports Rear: 2 x USB 3.2 Gen1 ports, 2 x Gigabit LAN ports, 1 x Management port, 1 x VGA port |
| OS Support | RHEL 9.X ESXi 8.0 Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Dimensions | 800mm x 439.5mm x 88.9mm |
| Form Factor | 2U |
| Weight | Net Weight: 24 Kg Gross Weight: 34.8 Kg |
| Power Supply | 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply *2600W PSU supports 1+1 redundant with GPU card power consumption < 300W |
| Environment | Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) |
Case
Processor
Default part
AMD EPYC Turin Single Socket Processors
1
x
AMD EPYC Turin 9355P, 32 Core 64 Threads, 3.55GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Turin 9455P, 48 Core 96 Threads, 3.15GHz, 256MB Cache, 300Watts.
1
x
AMD EPYC Turin 9555P, 64 Core 128 Threads, 3.2GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Turin 9655P, 96 Core 192 Threads, 2.6GHz, 384MB Cache, 400Watts.
AMD EPYC Turin Dual Socket Processors
1
x
AMD EPYC Turin 9015, 8 Core 16 Threads, 3.6GHz, 64MB Cache, 125Watts.
1
x
AMD EPYC Turin 9115, 16 Core 32 Threads, 2.6GHz, 64MB Cache, 125Watts.
1
x
AMD EPYC Turin 9135, 16 Core 32 Threads, 3.65GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Turin 9175F, 16 Core 32 Threads, 4.2GHz, 512MB Cache, 320Watts.
1
x
AMD EPYC Turin 9255, 24 Core 48 Threads, 3.2GHz, 128MB Cache, 200Watts.
1
x
AMD EPYC Turin 9275F, 24 Core 48 Threads, 4.1GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Turin 9335, 32 Core 64 Threads, 3.0GHz, 128MB Cache, 210Watts.
1
x
AMD EPYC Turin 9355, 32 Core 64 Threads, 3.55GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Turin 9365, 36 Core 72 Threads, 3.4GHz, 192MB Cache, 300Watts.
1
x
AMD EPYC Turin 9375F, 32 Core 64 Threads, 3.8GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Turin 9455, 48 Core 96 Threads, 3.15GHz, 256MB Cache, 300Watts.
1
x
AMD EPYC Turin 9475F, 48 Core 96 Threads, 3.65GHz, 256MB Cache, 400Watts.
1
x
AMD EPYC Turin 9535, 64 Core 128 Threads, 2.4GHz, 256MB Cache, 300Watts.
1
x
AMD EPYC Turin 9555, 64 Core 128 Threads, 3.2GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Turin 9575F, 64 Core 128 Threads, 3.3GHz, 256MB Cache, 400Watts.
1
x
AMD EPYC Turin 9565, 72 Core 144 Threads, 3.15GHz, 384MB Cache, 400Watts.
1
x
AMD EPYC Turin 9645, 96 Core 192 Threads, 2.3GHz, 256MB Cache, 320Watts.
1
x
AMD EPYC Turin 9655, 96 Core 192 Threads, 2.6GHz, 384MB Cache, 400Watts.
1
x
AMD EPYC Turin 9745, 128 Core 256 Threads, 2.4GHz, 256MB Cache, 400Watts.
1
x
AMD EPYC Turin 9825, 144 Core 288 Threads, 2.2GHz, 384MB Cache, 390Watts.
1
x
AMD EPYC Turin 9845, 160 Core 320 Threads, 2.1GHz, 320MB Cache, 390Watts.
AMD EPYC Genoa High Frequency Processors
1
x
AMD EPYC Genoa 9174F, 16 Core 32 Threads, 4.10GHz, 256MB Cache, 320Watts.
AMD EPYC Genoa Single Socket Processors
1
x
AMD EPYC Genoa 9654P, 96 Core 192 Threads, 2.40GHz, 256MB Cache, 360Watts.
AMD EPYC Genoa Dual Socket Processors
1
x
AMD EPYC Genoa 9124, 16 Core 32 Threads, 3.0GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9224, 24 Core 48 Threads, 2.50GHz, 64MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9254, 24 Core 48 Threads, 2.90GHz, 128MB Cache, 200Watts.
1
x
AMD EPYC Genoa 9334, 32 Core 64 Threads, 2.70GHz, 128MB Cache, 210Watts.
1
x
AMD EPYC Genoa 9354, 32 Core 64 Threads, 3.25GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9454, 48 Core 96 Threads, 2.75GHz, 256MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9534, 64 Core 128 Threads, 2.45GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9554, 64 Core 128 Threads, 3.10GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9634, 84 Core 168 Threads, 2.25GHz, 384MB Cache, 290Watts.
1
x
AMD EPYC Genoa 9654, 96 Core 192 Threads, 2.40GHz, 384MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9754, 128 Core 256 Threads,2.25GHz, 256MB Cache, 360Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Graphics
Default part
NVIDIA Blackwell Graphics Cards
1
x
PNY NVIDIA RTX PRO 4000 Blackwell 24GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 4500 Blackwell 32GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 48GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 72GB GDDR7 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB GDDR7 ECC Pro Graphics Card
NVIDIA Ada Lovelace Graphics Card
1
x
PNY NVIDIA RTX 4000 ADA 20GB GDDR6 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX 6000 ADA 48GB GDDR6 ECC Pro Graphics Card - OEM
NVIDIA Data Center Graphics Cards
1
x
PNY NVIDIA A2 16GB GDDR6 ECC Data Centre GPU
1
x
PNY NVIDIA A16 64GB GDDR6 ECC Data Centre GPU
1
x
PNY NVIDIA L4 24GB GDDR6 Data Centre GPU - Passive Cooling
1
x
PNY NVIDIA L40 48GB GDDR6 ECC Data Centre GPU - Passive Cooling
1
x

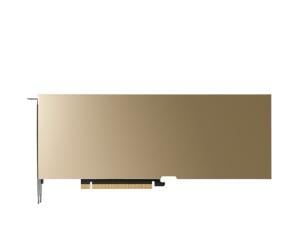

PNY NVIDIA L40S 48GB GDDR6 ECC Data Centre GPU - Passive Cooling
Raid Controller
Default part
Broadcom RAID Controllers
Broadcom MegaRAID 9361-8i 8 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9380-8I8E 8 Port Internal, 8 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom 9560-8i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4
Broadcom 9560-16i 12GB/s SAS/SATA/NVMe RAID Controller, 8Gb Cache, PCIE Gen 4
Harddrives
Filter by:
Micron 9400 MAX Enterprise U.3 NVMe - 3 DWPD
0
Micron 9400 MAX 6.4TB U.3 NVME SSD
0
Micron 9400 MAX 12.8TB U.3 NVME SSD
0
Micron 9400 MAX 25.6TB U.3 NVME SSD
Micron 9400 Pro Enterprise U.3 NVMe - 1 DWPD
0
Micron 9400 Pro 7.68TB U.3 NVME SSD
0
Micron 9400 Pro 15.36TB U.3 NVME SSD
0
Micron 9400 Pro 30.7TB U.3 NVME SSD
Solidigm D7 Series U.2 NVME SSD's
0
Solidigm D7 Series P1030 1.6TB U.2 NVME PCIE 5.0 2.5" SSD
0
Solidigm D7 Series P1030 3.2TB U.2 NVME PCIE 5.0 2.5" SSD
0
Solidigm D7 Series P1030 6.4TB U.2 NVME PCIE 5.0 2.5" SSD
0
Solidigm D7 Series P1030 12.8TB U.2 NVME PCIE 5.0 2.5" SSD
Samsung PM9A3 2.5" U.2 NVME Data Centre
0
Samsung PM9A3 960GB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 7.68TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
Seagate SAS 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise HArd Drive 2TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SAS
0
Seagate Exo 7E10 Enterprise Hard Drive 6TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SAS
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SAS
0
Seagate Exos X24 Enterprise Hard Drive 12TB SAS
0
Seagate Exo X24 Enterprise Hard Drive 16TB SAS
0
Seagate Exo X24 Enterprise Hard Drive 20TB SAS
0
Seagate Exos X24 Enterprise Hard Drive 24TB SAS
Seagate SATA 3.5" Enterprise
0
Seagate Exos 7E10 Enterprise Hard Drive 2TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 4TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 6TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 8TB SATA
0
Seagate Exos 7E10 Enterprise Hard Drive 10TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 12TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 16TB SATA
0
Seagate Exos X24 ENterprise Hard Drive 20TB SATA
0
Seagate Exos X24 Enterprise Hard Drive 24TB SATA
Seagate SATA 2.5" Enterprise
0
Seagate Exos 7E2000 2TB 2.5" SATA 6Gb/s 7200RPM Enterprise HDD
Power Supply
Networking
Rail Kit
Operating System
Default part
Open Source Linux
Open Source Linux Installed and Setup as per Customer Instructions
Standard build time 5 working days
