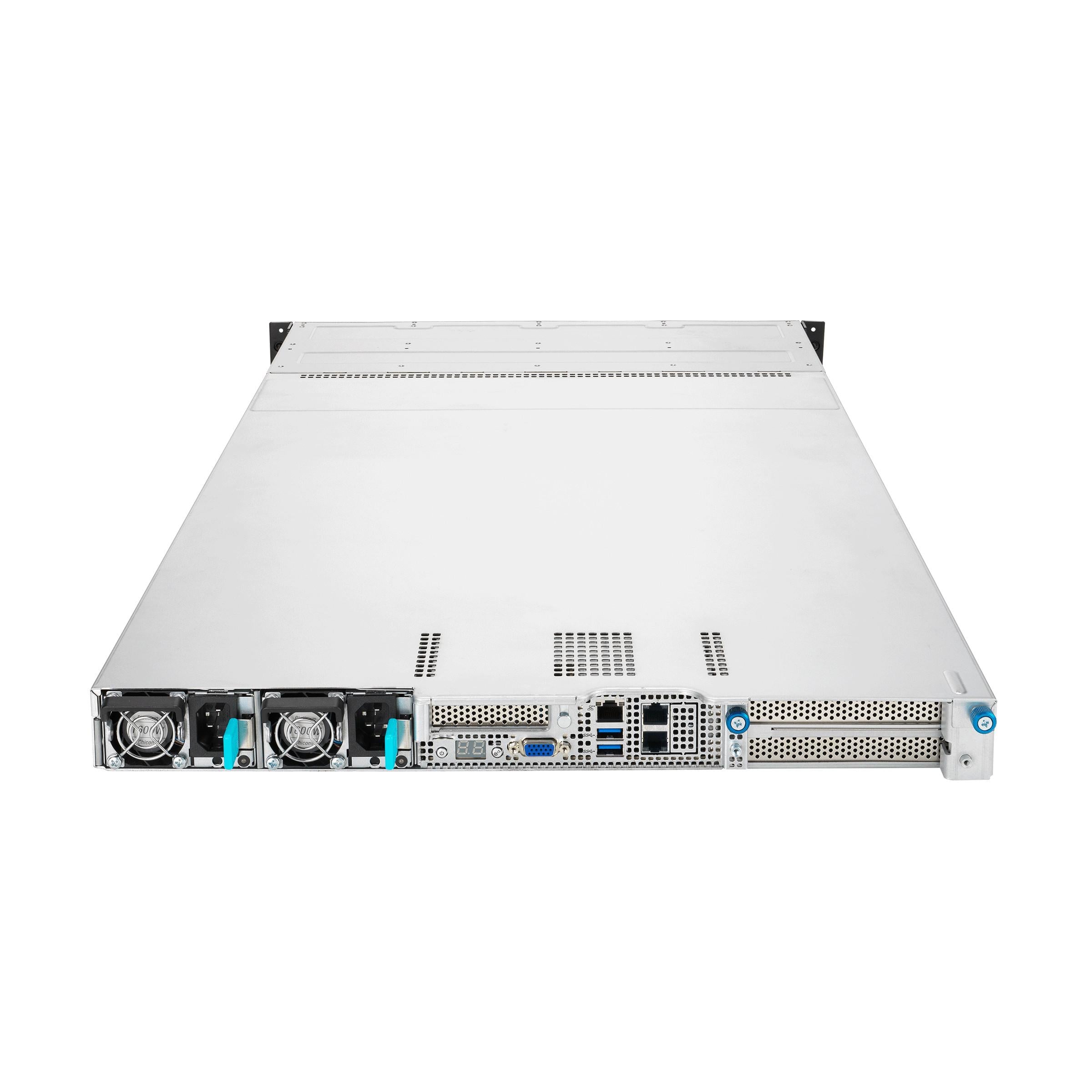

Customise your HyperServe SSDG-1U12
- Dual AMD EPYC™ 9004 series processors
- 12-Channel RDIMM/3DS RDIMM DDR5 per processor, 24 x DIMMs
- Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
- 12 x 2.5" Front Hot-swap Stroage Bays, 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
- 1 x FHFL Gen5 expansion slot for GPU
- 1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply
- 1U, 842.5mm Depth
Configure from £6512.59 inc VAT
or
| CPU Support | AMD EPYC™ 9004 Series Processors (Air cool with EVAC up to 400W) |
| Socket | 2 x Socket SP5 (LGA 6096) |
| Memory | Total Slots:24 (12-channel per CPU, 1 DIMM per CPU) Capacity :Maximum up to 3072GB per socket Memory Type :DDR5 4800/4400 RDIMM/ 3DS RDIMM Memory Size :128GB, 64GB, 32GB RDIMM 128GB, 64GB, 32GB 3DS RDIMM |
| Expansion Slots | Total Slots: Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot 1 x PCIe Gen5 x16 (FHFL) 1 x PCIe Gen5 x16 or OCP3.0 (FHFL) 1 x PCIe Gen5 x16 (LP) 1 x PCIe Gen4 x8 (LP, internal) *Installing GPU cards will occupy expansion slots *GPU SKU do not support OCP3.0 *RAID/PIKE cable kit required for internal slot support. |
| Disk Controller | SATA Controller:8 x SATA 6Gb/s ports 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link) |
| SAS Controller:Optional kits: Broadcom HBA CARD 9500-16i Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i |
|
| Storage Bays | 12 x 2.5" Hot-Swap Drive Bays up to (12 x NVMe/SATA/SAS*) 2 x M.2 (Up to 2280 from CPU1) *RAID card is required to support SAS hard drives |
| Networking | 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller 1 x Management Port |
| Graphics | Aspeed AST2600 64MB |
| I/O Ports | Front: 2 x USB 3.2 Gen 1 ports 1 x VGA port Rear: 2 x USB 3.2 Gen1 ports 1 x Management port 2 x 10GbE LAN port |
OS Support | CentOS 7.9, CentOS 8.4 Ubuntu 18.04.02 LTS, Ubuntu 22.04 LTS ESXi 8.0 RHEL 9.X Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CE, CB, C-Tick, FCC(Class A) |
| Dimensions | 842.5mm x 449mm x 43.85mm (1U) |
| Form Factor | 1U |
| Weight | Net Weight: 14.94 kg Gross Weight: 19.94 Kg |
| Power Supply | 1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply |
| Environment | Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 60? Non operation humidity: 20% ~ 90% (Non condensing) |
Case
Processor
Default part
AMD EPYC Genoa Dual Socket Processors
1
x
AMD EPYC Genoa 9354, 32 Core 64 Threads, 3.25GHz, 256MB Cache, 280Watts.
1
x
AMD EPYC Genoa 9554, 64 Core 128 Threads, 3.10GHz, 256MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9654, 96 Core 192 Threads, 2.40GHz, 384MB Cache, 360Watts.
1
x
AMD EPYC Genoa 9754, 128 Core 256 Threads,2.25GHz, 256MB Cache, 360Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Graphics
Default part
NVIDIA Blackwell Graphics Cards
1
x
PNY NVIDIA RTX PRO 4000 Blackwell 24GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 4500 Blackwell 32GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 48GB GDDR7 ECC Pro Graphics Card
1
x
PNY NVIDIA RTX PRO 5000 Blackwell 72GB GDDR7 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB GDDR7 ECC Pro Graphics Card
NVIDIA Ada Lovelace Graphics Card
1
x
PNY NVIDIA RTX 4000 ADA 20GB GDDR6 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX 6000 ADA 48GB GDDR6 ECC Pro Graphics Card - OEM
NVIDIA Data Center Graphics Cards
1
x
PNY NVIDIA A2 16GB GDDR6 ECC Data Centre GPU
1
x
PNY NVIDIA A16 64GB GDDR6 ECC Data Centre GPU
1
x
PNY NVIDIA L4 24GB GDDR6 Data Centre GPU - Passive Cooling
1
x
PNY NVIDIA L40 48GB GDDR6 ECC Data Centre GPU - Passive Cooling
1
x
PNY NVIDIA L40S 48GB GDDR6 ECC Data Centre GPU - Passive Cooling
Raid Controller
Default part
Graid SupremeRAID Cards
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1000
Graid Technology SupremeRAID Core Software Module License with full Features support 8 Native NVMe drives Bundled SR-1001
Graid Technology SupremeRAID Core Software Module License with full Features support 12 Native NVMe drives Bundled SR-1001
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1010
M.2 Storage
Kingston DC2000B Series NVME M.2 SSD's
0
Kingston DC2000B 240GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 480GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 960GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
Harddrives
Filter by:
Samsung PM9A3 2.5" U.2 NVME Data Centre
0
Samsung PM9A3 960GB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 7.68TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
Micron 7500 MAX Enterprise U.3 NVMe - Mixed Use, 3 DWPD
0
Micron 7500 MAX 800GB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 1.6TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 3.2TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 6.4TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 12.8TB U.3 2.5" NVMe SSD
Micron 7500 Pro Enterprise U.3 NVMe - Read Intensive, 1 DWPD
0
Micron 7500 PRO 960GB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 1.9TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 3.84TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 7.68TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 15.3TB U.3 2.5" NVMe SSD
Micron 9400 MAX Enterprise U.3 NVMe - 3 DWPD
0
Micron 9400 MAX 6.4TB U.3 NVME SSD
0
Micron 9400 MAX 12.8TB U.3 NVME SSD
0
Micron 9400 MAX 25.6TB U.3 NVME SSD
Micron 9400 Pro Enterprise U.3 NVMe - 1 DWPD
0
Micron 9400 Pro 7.68TB U.3 NVME SSD
0
Micron 9400 Pro 15.36TB U.3 NVME SSD
0
Micron 9400 Pro 30.7TB U.3 NVME SSD
Power Supply
Networking
Rail Kit
Operating System
Default part
Open Source Linux
Open Source Linux Installed and Setup as per Customer Instructions
Microsoft Windows Server 2022
Microsoft Windows Server 2022 Standard (16-core)
Microsoft Windows Server 2022 Standard (24-core)
Microsoft Windows Server 2022 Datacenter (16-core)
Microsoft Windows Server 2022 Datacenter (24-core)
Support Package
Default part
Proxmox Virtual Environment
Proxmox VE Community Subscription 1 CPU / year
Proxmox VE Community Subscription 2 CPUs / year
Proxmox VE Community Subscription 4 CPUs / year
Proxmox VE Basic Subscription 1 CPU/year
Proxmox VE Basic Subscription 2 CPUs/year
Proxmox VE Basic Subscription 4 CPUs/year
Proxmox VE Standard Subscription 1 CPU/year
Proxmox VE Standard Subscription 2 CPUs/year
Proxmox VE Standard Subscription 4 CPUs/year
Proxmox VE Premium Subscription 1 CPU/year
Proxmox VE Premium Subscription 2 CPUs/year
Proxmox VE Premium Subscription 4 CPUs/year
Standard build time 5 working days
