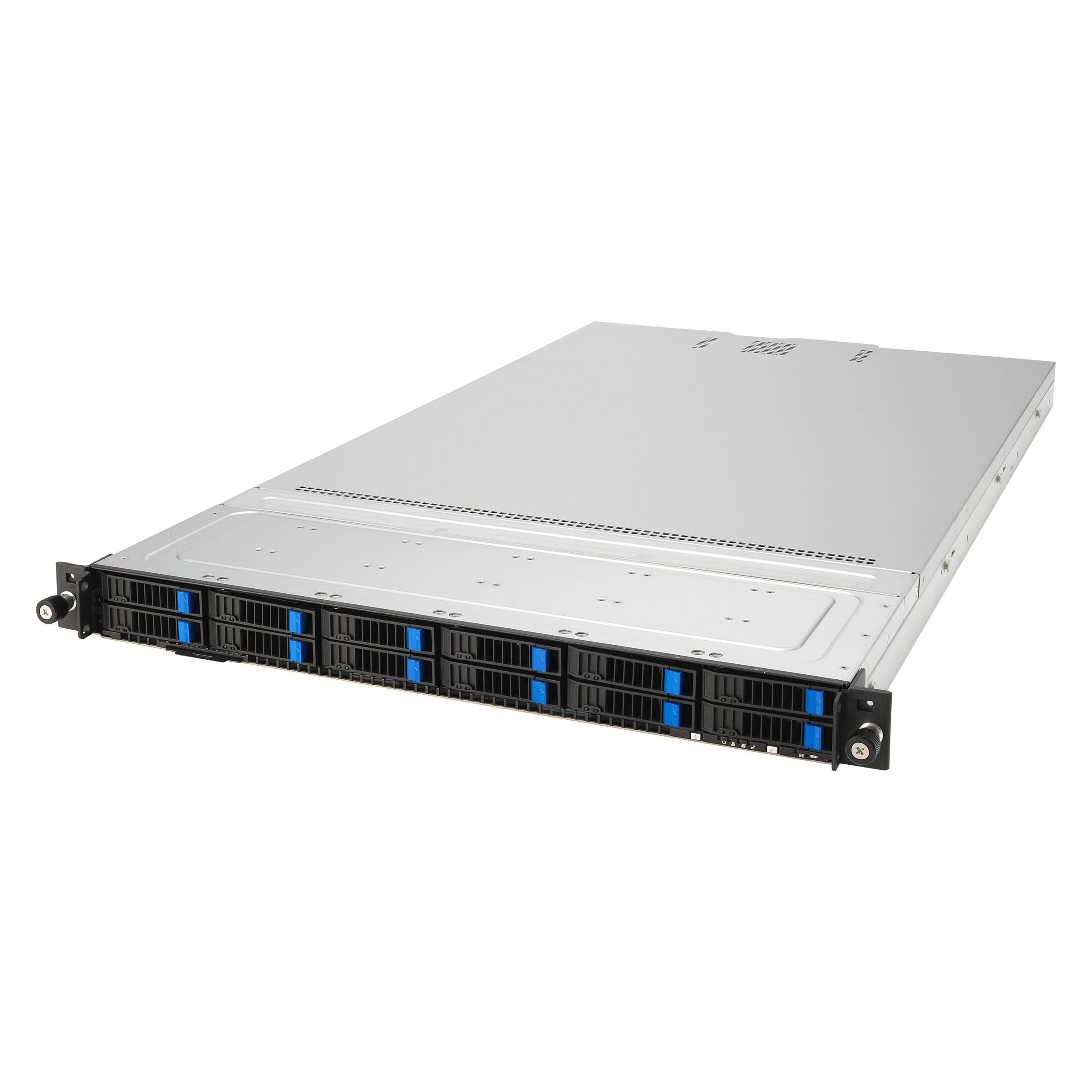

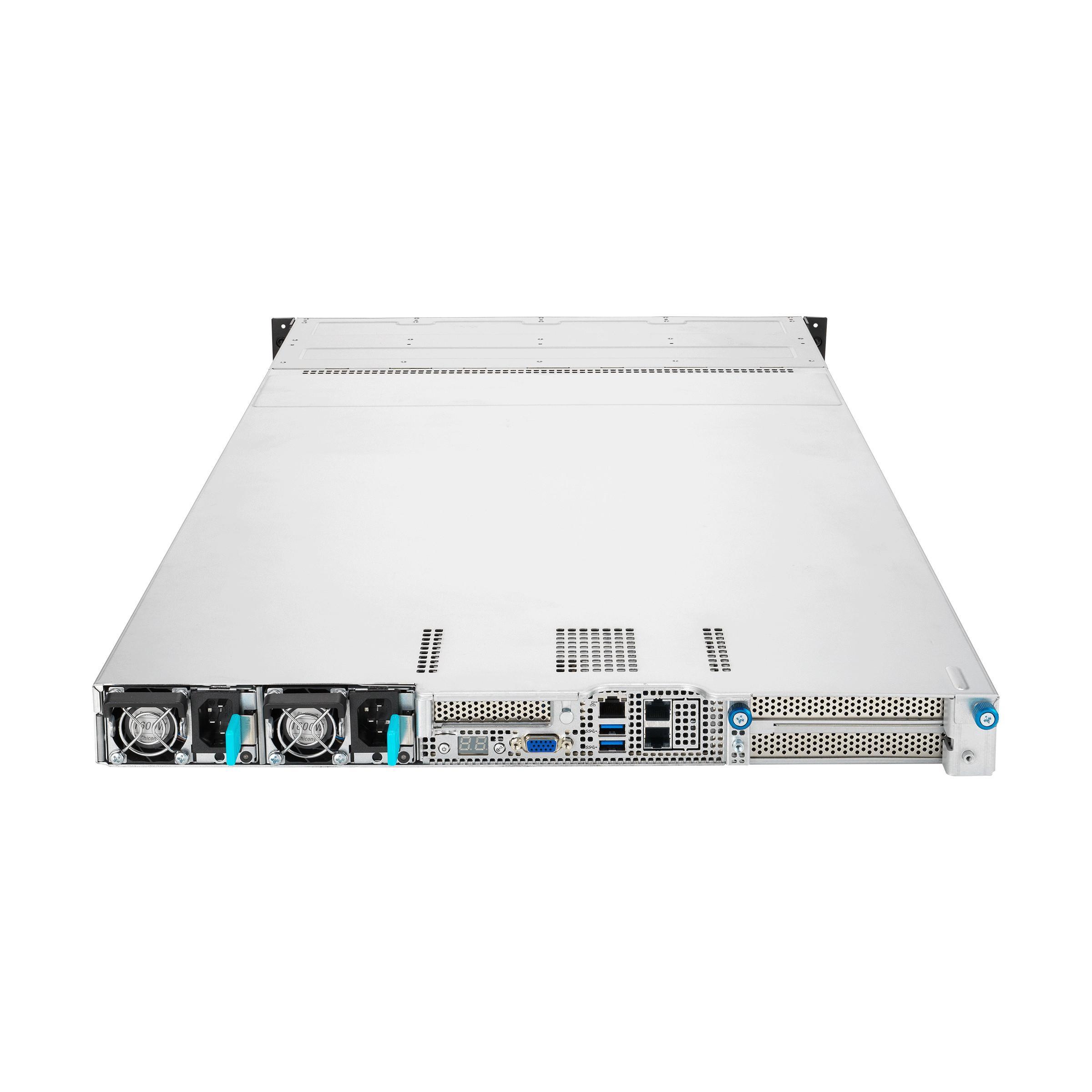

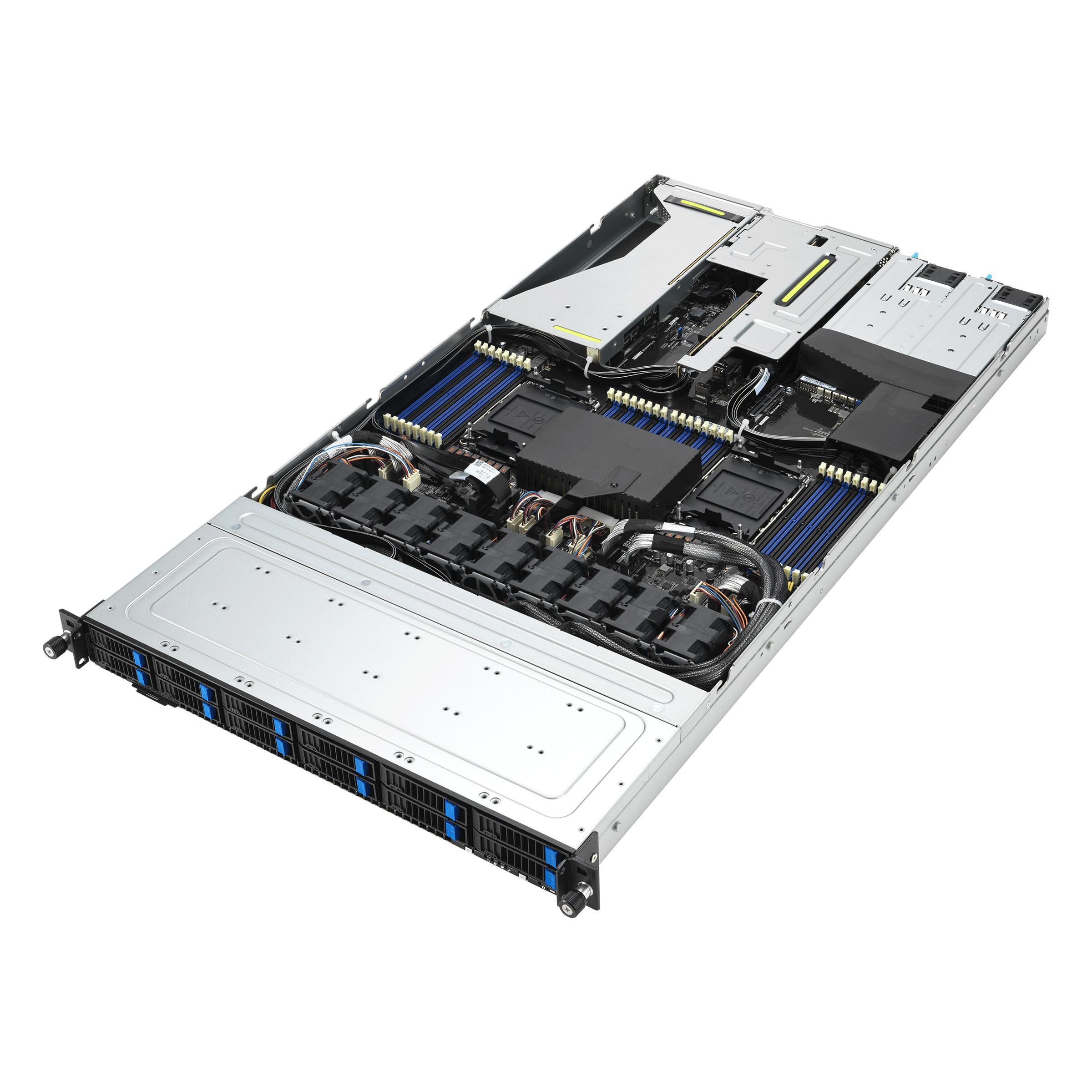

Customise your HyperServe RMX-1U12
- Dual 5th/4th Gen Intel Xeon Scalable Processors
- 8-Channel RDIMM/ 3DS RDIMM DDR5 per processor, 32 x DIMMs
- 12 x 2.5” Hot-Swap Storage Bays, 2 x M.2 sockets (PCIE Gen4 x8 link up to 2280)
- 3 x Expansion slots, 1 x Internal RAID slot
- 2 x 10GbE LAN ports (RJ45, X710-AT2), 1 x Management Port
- 1+1 Redundant 1600W 80 PLUS Titanium Power Supply
- 1U, 842.5mm Depth
Configure from £5621.16 inc VAT
or
| CPU Support | 4th Intel® Xeon® Processor Scalable Family (Up to 350W) 5th Intel® Xeon® Processor Scalable Family (Up to 350W) |
| Socket | 2 x Socket |
| Memory | Total Slots:32 (8-channel per CPU, 16 DIMM per CPU) Capacity :Maximum up to 4TB Memory Type : 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC) 5th: 5600/4800 MHz (1DPC)/4400(2DPC) Memory Size : 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS |
| Expansion Slots | Total PCI-E Slots:Up to 3+1 PCIe slot 1 x OCP 3.0 or PCIe G5 x16 FHFL 1 x PCIe G5 x16 FHFL 1 x PCIe G5 x8. LP (Internal) 1 x PCIe G5 x16, LP |
| Storage | 12x2.5” NVMe/SATA/SAS* hot-swap bay (HBA/RAID is required to support SATA/SAS hard drives) |
| Storage Bays | 12 x 2.5" hot-swap bay 2 x M.2 slot |
| Networking | 2 x 10Gbe(Intel X710-AT2) RJ45 port + 1 x Mgmt LAN |
| Graphics | Aspeed AST2600 64MB |
| I/O Ports | Front: 1 x Power Switch (w/ LED) 1 x Location Switch (w/ LED) Rear: 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Management LAN port 2 x 10G RJ-45 GbE LAN port |
| OS Support | Ubuntu 22.04 LTS Windows Server 2022 / 2025 RHEL 9.X ESXi 8.0 Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center ASUS ASMB11-iKVM (on-board) |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Dimensions | 842.5mm x 439.5mm x 44mm |
| Form Factor | 1U |
| Weight | Weight: 22.56 Kg |
| Power Supply | 1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply |
| Environment | Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) |
ProcessorMemoryGraphicsRaid ControllerBattery ProtectionM.2 StorageHarddrivesNetworkingHost Bus AdapterOperating SystemSupport Package
Case
Processor
Default part
Intel Xeon Silver 4th Gen Scalable Processors
1
x
Intel Xeon Silver 4410Y, 12 Core, 2.0GHz, 30MB Cache, 105 Watts.
1
x
Intel Xeon Silver 4416+, 20 Core, 2.0GHz, 37.5MB Cache, 165 Watts.
Intel Xeon Gold 4th Gen Scalable Processors
1
x
Intel Xeon Gold 5415+, 8 Core, 2.9GHz, 22.5MB Cache, 105 Watts.
1
x
Intel Xeon Gold 5418Y, 24 Core, 2.0GHz, 45MB Cache, 185 Watts.
1
x
Intel Xeon Gold 6426Y, 16 Core, 2.5GHz, 37.5MB Cache, 185 Watts.
1
x
Intel Xeon Gold 5420+, 28 Core, 2.0GHz, 52.5MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6430, 32 Core, 2.1GHz, 60MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6434, 8 Core, 3.7GHz, 22.5MB Cache, 195 Watts.
1
x
Intel Xeon Gold 6442Y, 24 Core, 2.6GHz, 60MB Cache, 225 Watts.
1
x
Intel Xeon Gold 6438Y+, 32 Core, 2.0GHz, 60MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6448Y, 32 Core, 2.1GHz, 60MB Cache, 225 Watts.
1
x
Intel Xeon Gold 6444Y, 16 Core, 3.6GHz, 45MB Cache, 270 Watts.
Intel Xeon Platinum 4th Gen Scalable Processors
1
x
Intel Xeon Platinum 8452Y, 36 Core, 2.0GHz, 67.5MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8470, 52 Core, 2.0GHz, 105MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8480+, 56 Core, 2.0GHz, 105MB Cache, 350 Watts.
Intel Xeon Silver 5th Gen Scalable Processors
1
x
Intel Xeon Silver 4509Y, 8 Core, 2.6GHz, 22.5MB Cache, 125 Watts.
1
x
Intel Xeon Silver 4510, 12 Core, 2.4GHz, 30MB Cache, 150 Watts.
1
x
Intel Xeon Silver 4510T, 12 Core, 2.0GHz, 30MB Cache, 115 Watts.
1
x
Intel Xeon Silver 4514Y, 16 Core, 2.0GHz, 30MB Cache, 150 Watts.
1
x
Intel Xeon Silver 4516Y+, 24 Core, 2.2GHz, 45MB Cache, 185 Watts.
Intel Xeon Gold 5th Gen Scalable Processors
1
x
Intel Xeon Gold 5512U, 28 Core, 2.1GHz, 52.5MB Cache, 185 Watts.
1
x
Intel Xeon Gold 5515+, 8 Core, 3.2GHz, 22.5MB Cache, 165 Watts.
1
x
Intel Xeon Gold 5520+, 28 Core, 2.2GHz, 52.5MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6526Y, 16 Core, 2.8GHz, 37.5MB Cache, 195 Watts.
1
x
Intel Xeon Gold 6530, 32 Core, 2.1GHz, 160MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6534, 8 Core, 3.9GHz, 22.5MB Cache, 195 Watts.
1
x
Intel Xeon Gold 6538N, 32 Core, 2.1GHz, 60MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6538Y+, 32 Core, 2.2GHz, 60MB Cache, 225 Watts.
1
x
Intel Xeon Gold 6542Y, 24 Core, 2.9GHz, 60MB Cache, 250 Watts.
1
x
Intel Xeon Gold 6544Y, 16 Core, 3.6GHz, 45MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6548N, 32 Core, 2.8GHz, 60MB Cache, 250 Watts.
1
x
Intel Xeon Gold 6548Y+, 32 Core, 2.5GHz, 60MB Cache, 250 Watts.
1
x
Intel Xeon Gold 6554S, 36 Core, 2.2GHz, 180MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6558Q, 32 Core, 3.1GHz, 60MB Cache, 350 Watts.
Intel Xeon Platinum 5th Gen Scalable Processors
1
x
Intel Xeon Platinum 8558, 48 Core, 2.1GHz, 260MB Cache, 330 Watts.
1
x
Intel Xeon Platinum 8558P, 48 Core, 2.7GHz, 260MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8558U, 48 Core, 2.0GHz, 260MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8562Y+, 32 Core, 2.8GHz, 60MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8568Y+, 48 Core, 2.3GHz, 300MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8570, 56 Core, 2.1GHz, 300MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8571N, 52 Core, 2.4GHz, 300MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8580, 60 Core, 2.0GHz, 300MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8581V, 60 Core, 2.0GHz, 300MB Cache, 270 Watts.
1
x
Intel Xeon Platinum 8592+, 64 Core, 1.9GHz, 320MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8592V, 64 Core, 2.0GHz, 320MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8593Q, 64 Core, 2.2GHz, 320MB Cache, 385 Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Graphics
Default part
AMD Professional Graphics Card
1
x
AMD Radeon Pro WX3200 4GB GDDR5 Graphics Card, 640 Stream Processors
1
x
AMD Radeon Pro W6400 4GB GDDR5 Graphics Card, 768 Stream Processors
NVIDIA Ada Lovelace Graphics Card
1
x
PNY NVIDIA RTX 4000 ADA 20GB GDDR6 ECC Pro Graphics Card - OEM
1
x
PNY NVIDIA RTX 6000 ADA 48GB GDDR6 ECC Pro Graphics Card - OEM
Raid Controller
Default part
Broadcom RAID Controllers
Broadcom MegaRAID 9361-8i 8 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9380-8I8E 8 Port Internal, 8 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom 9560-8i 12GB/s SAS/SATA/NVMe RAID Controller, 4Gb Cache, PCIE Gen 4
Broadcom 9560-16i 12GB/s SAS/SATA/NVMe RAID Controller, 8Gb Cache, PCIE Gen 4
Battery Protection
Default part
RAID Controller CacheVault Protection
Broadcom MegaRAID Cache Module LSICVM02, CacheVault Flash Cache, Supports 9361 & 9380 Series
Broadcom CacheValut Power Module, Supports 9580, 9560, 9660 and 9670 Series
M.2 Storage
Kingston DC2000B Series NVME M.2 SSD's
0
Kingston DC2000B 240GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 480GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 960GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
Harddrives
Filter by:
Samsung PM893 SATA Data Centre Series SSD's - Read
0
Samsung PM893 240GB 2.5" SATA Enterprise SSD
0
Samsung PM893 480GB 2.5" SATA Enterprise SSD
0
Samsung PM893 960GB 2.5" SATA Enterprise SSD
0
Samsung PM893 1.92TB 2.5" SATA Enterprise SSD
0
Samsung PM893 3.84TB 2.5" SATA Enterprise SSD
Samsung PM9A3 2.5" U.2 NVME Data Centre
0
Samsung PM9A3 960GB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 7.68TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
Seagate SATA 2.5" Enterprise
0
Seagate Exos 7E2000 2TB 2.5" SATA 6Gb/s 7200RPM Enterprise HDD
Power Supply
Networking
Default part
Intel 10GbE Adapters
Intel X550-T2 Dual Port 10GbE RJ45 Ethernet Adapter
Intel X520-SR2 Dual Port 10GbE SFP+ Server Adapter
Intel X710-DA2 Dual Port 10GbE SFP+ Ethernet Adapter
Intel 100GbE Adapters
Intel E810-CQDA1 Single Port 100GbE QSFP28 Ethernet Controller
Intel E810-CQDA1 Dual Port 100GbE QSFP28 Ethernet Controller
NVIDIA Mellanox ConnectX-6 High Performance Adapters
ConnectX-6 900-9X662-0073-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X662-0083-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Crypto and Secure Boot, Tall Bracket
ConnectX-6 900-9X662-0053-ST1, 25GbE, Dual-port SFP28, PCIe 4.0 x8, No Crypto, Tall Bracket
ConnectX-6 900-9X663-0073-SQ0, 25GbE, With active cooling, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AF-0058-ST1, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket
ConnectX-6 900-9X6AG-0018-ST0, 200GbE , Single-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0056-ST1, 100GbE, Dual-port QSFP56, PCIe 4.0 x16,No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0076-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0086-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
Rail Kit
Host Bus Adapter
Default part
Host Bus Adapters (HBA) (Non RAID)
Broadcom MegaRAID 9300-4i Host Bus Adapter 4 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9300-4i4E Host Bus Adapter 4 Port Internal, 4 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9300-16i Host Bus Adapter 8 Port Internal SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9300-8E Host Bus Adapter 8 Port External SAS 12Gb/s SAS/SATA Controller
Broadcom MegaRAID 9300-16E Host Bus Adapter 16 Port External SAS 12Gb/s SAS/SATA Controller
Operating System
Default part
Microsoft Windows Server 2022
Microsoft Windows Server 2022 Standard (16-core)
Microsoft Windows Server 2022 Standard (24-core)
Microsoft Windows Server 2022 Datacenter (16-core)
Microsoft Windows Server 2022 Datacenter (24-core)
Microsoft Windows Server 2025
Microsoft Windows Server 2025 Standard (16-core)
Microsoft Windows Server 2025 Standard (24-core)
Microsoft Windows Server 2025 Datacenter (16-core)
Microsoft Windows Server 2025 Datacenter (24-core)
Support Package
Default part
Proxmox Virtual Environment
Proxmox VE Community Subscription 1 CPU / year
Proxmox VE Community Subscription 2 CPUs / year
Proxmox VE Community Subscription 4 CPUs / year
Proxmox VE Basic Subscription 1 CPU/year
Proxmox VE Basic Subscription 2 CPUs/year
Proxmox VE Basic Subscription 4 CPUs/year
Proxmox VE Standard Subscription 1 CPU/year
Proxmox VE Standard Subscription 2 CPUs/year
Proxmox VE Standard Subscription 4 CPUs/year
Proxmox VE Premium Subscription 1 CPU/year
Proxmox VE Premium Subscription 2 CPUs/year
Proxmox VE Premium Subscription 4 CPUs/year
Standard build time 5 working days
