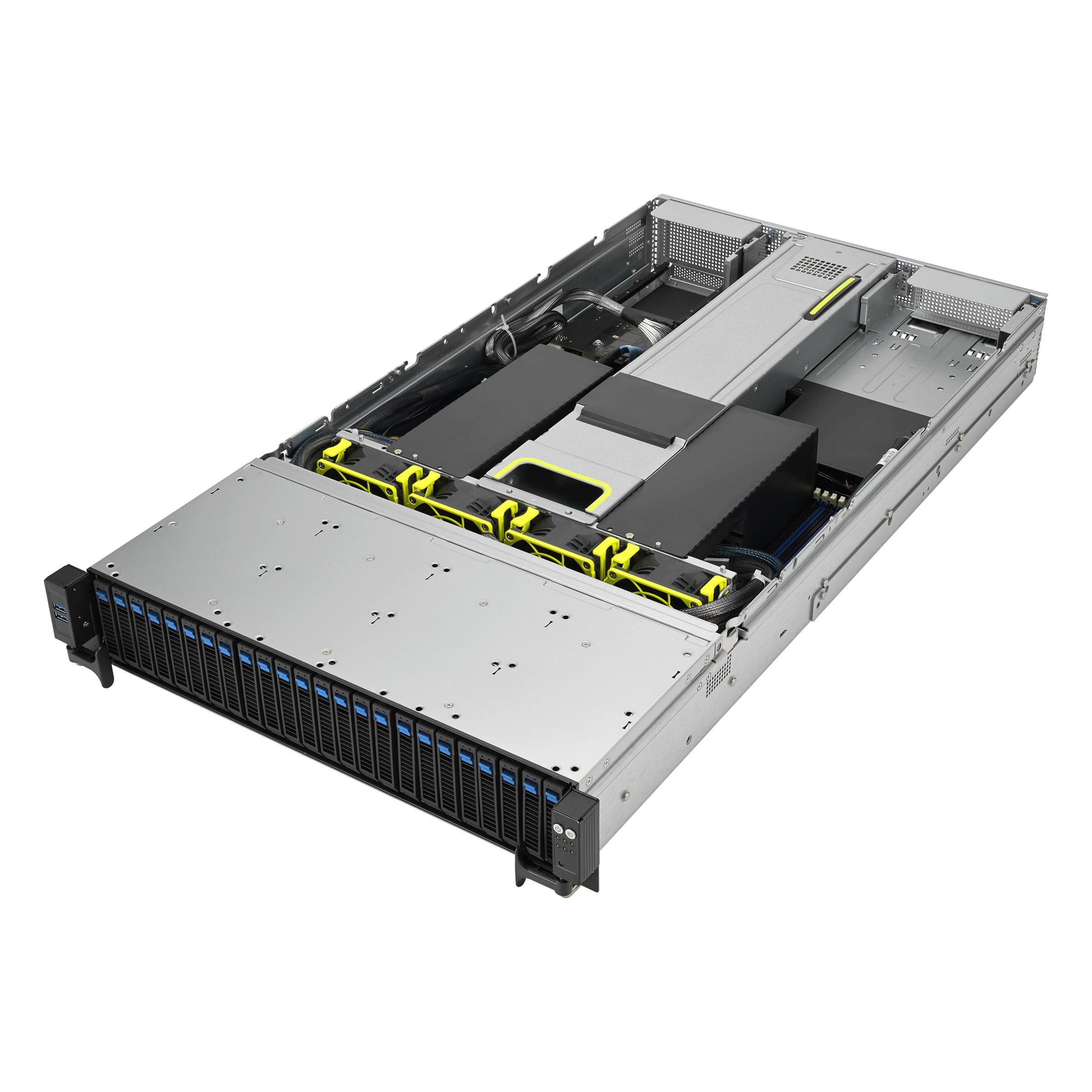

Customise your HyperServe AFX-2U24
- Dual 5th/4th Gen Intel Xeon Scalable Processors
- 8-Channel RDIMM/ 3DS RDIMM DDR5 per processor, 32 x DIMMs

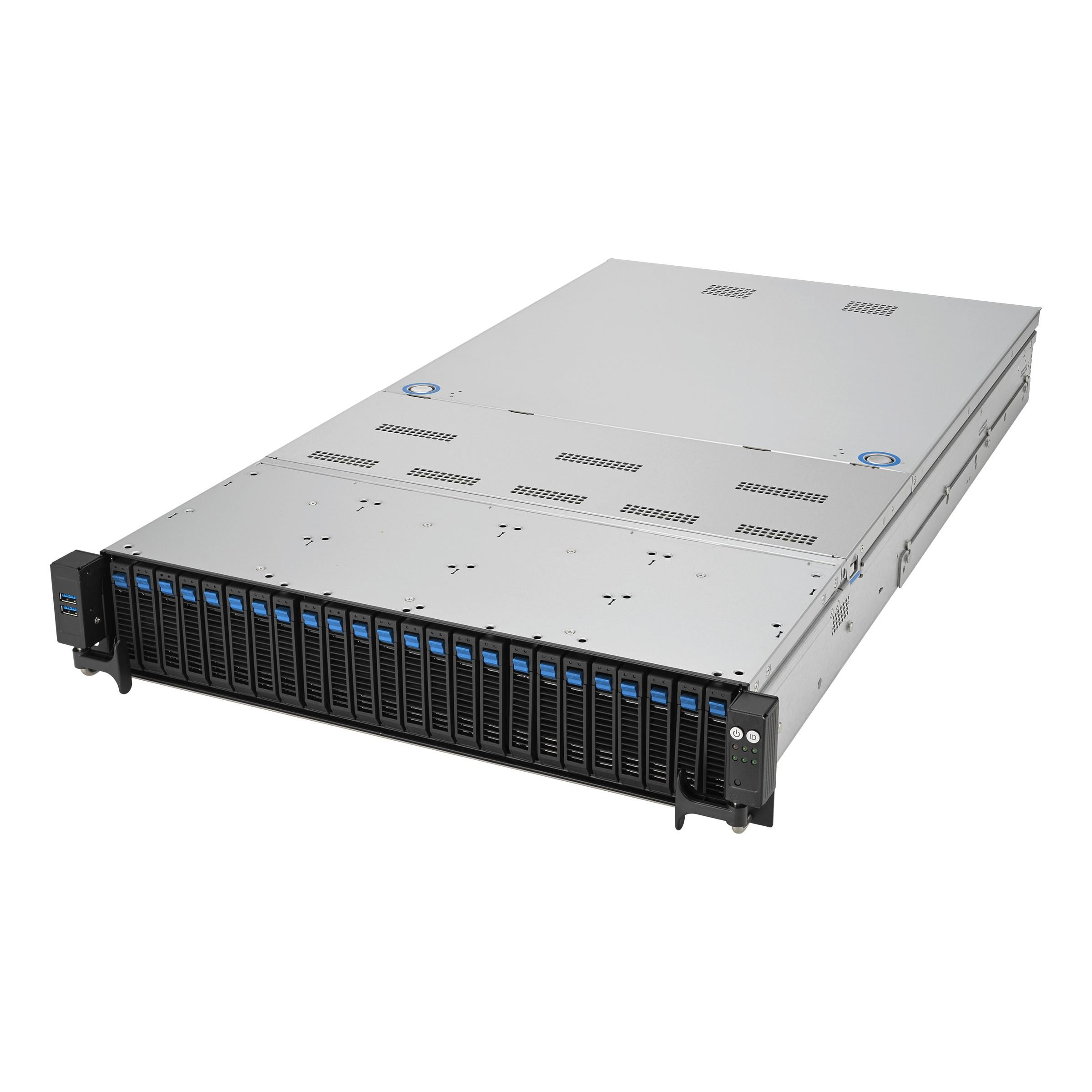

- 24 x 2.5” Hot-Swap Storage Bays 2 x M.2 sockets (Gen4 x8 link, up to 2280)
- 2 x PCIe G5 x8 link or 1 x PCIe G5 x16 link (FHFL or FHHL), 1 x PCIe G5 x16, LP
- 1 x DualPort Intel X710 AT2 Gigabit 10G LAN Controller 1 x Management Port
- 1+1 Redundant 2600W 80 PLUS Titanium Power Supply
- 2U, 840mm Depth
Configure from £7231.49 inc VAT
or
| CPU Support | Intel Xeon Scalable™Intel 4th Generation Xeon® Processors (350W) |
| Socket | 2 x LGA 4677 Socket E |
| Memory | Total Slots:32 (8-channel per CPU, 16 DIMM per CPU) Capacity :Maximum up to 4 + 8 TB (DDR5 + Crow Pass) Memory Type : DDR5 4800/4400 RDIMM/RDIMM 3DS (2DIMM per Channel) Memory Size : 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots 2 x PCIe G5 x8 link or 1 x PCIe G5 x16 link (FHFL or FHHL) 1 x PCIe G5 x16, LP 1 x OCP 3.0 |
| Disk Controller | SATA Controller:12 x SATA 6Gb/s ports 2 x M.2 connector (SATA 6Gb/s & PCI E Gen4 x8 link) |
| Storage Bays | 24 x 2 .5" Hot Swap Storage Device Bays up to (12 NVMe or SAS*/ SATA + 12 NVMe) 2 x M.2 (Up to 2280) (Support SATA/PCIe M.2) (CPU1) |
| Networking | 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller 1 x Management Port |
| Graphics | Aspeed AST2600 64MB |

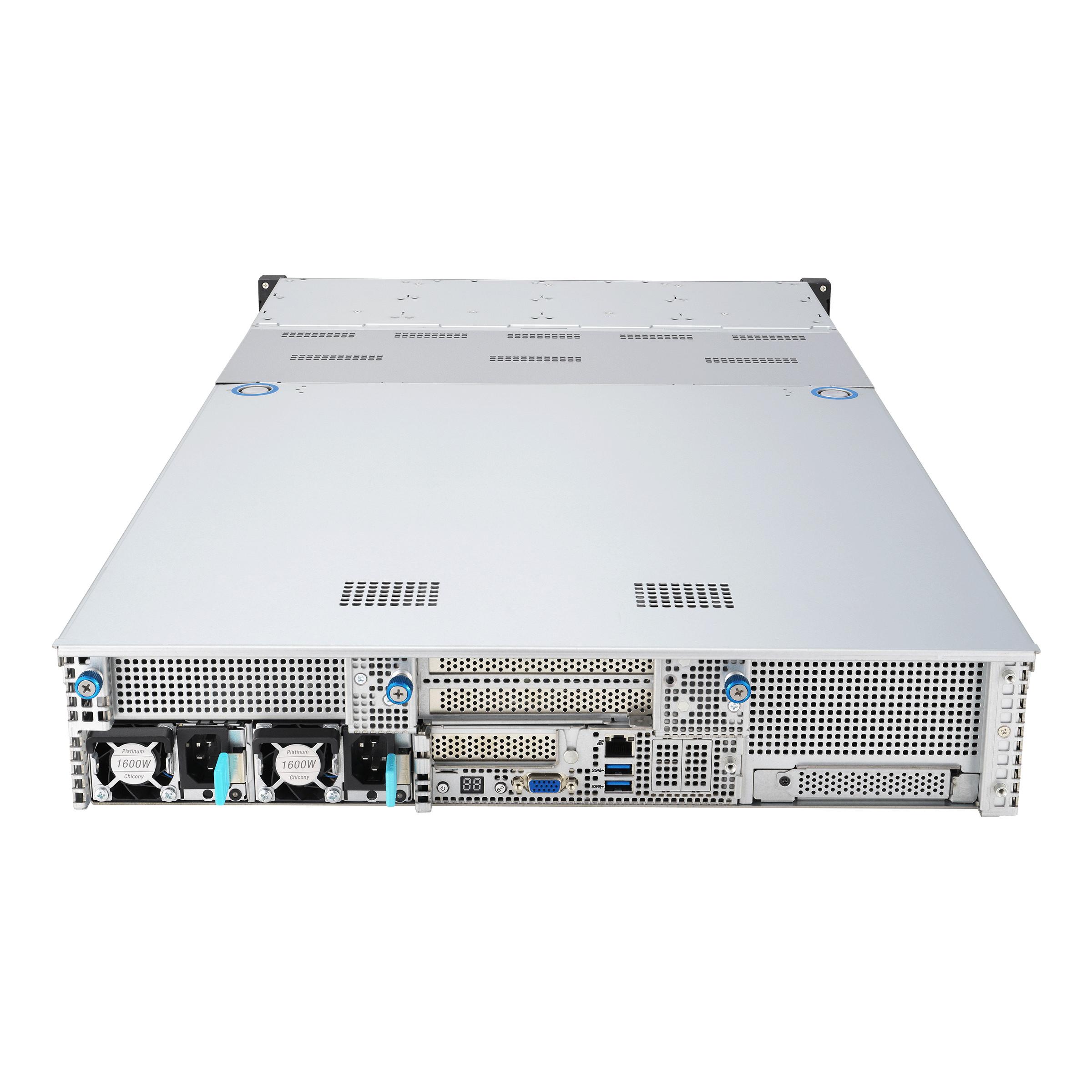

| I/O Ports | Front:2 x USB 3.2 Gen 1 ports 1 x VGA port Rear:2 x USB 3.2 Gen1 ports, 1 x VGA port , 1 x RJ 45 Management LAN port 2 x 10G RJ-45 GbE LAN port |
OS Support | Windows® Server 2019/202264bit RedHat Enterprise Linux, SuSE ® Linux Enterprise Server CentOS, Ubuntu, Vmware Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ASUS Control Center On-Board ASMB11 iKVM for KVM over IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Dimensions | 840mm x 447mm x 88mm (2U) |
| Form Factor | 2U |
| Weight | Net Weight: 25.64 kg Gross Weight: 36 Kg |
| Power Supply | 1+1 Redundant AC: 2600W/1600W 80 PLUS Platinum/Titanium Power Supply Rating: 100 127Vac/240Vac, 13.8A/16A (x2), 50/60Hz ; Rating: 100 127Vac/220 240Vac, 12A/9.5A (x2), 50/60Hz |
| Environment | Operation temperature: 10? ~ 35? Non operation temperature:40 ? ~ 60? Non operation humidity: 20% ~ 90% (Non condensing) |
Processor
Default part
Intel Xeon Silver 5th Gen Scalable Processors
1
x
Intel Xeon Silver 4509Y, 8 Core, 2.6GHz, 22.5MB Cache, 125 Watts.
1
x
Intel Xeon Silver 4510, 12 Core, 2.4GHz, 30MB Cache, 150 Watts.
1
x
Intel Xeon Silver 4510T, 12 Core, 2.0GHz, 30MB Cache, 115 Watts.
1
x
Intel Xeon Silver 4514Y, 16 Core, 2.0GHz, 30MB Cache, 150 Watts.
1
x
Intel Xeon Silver 4516Y+, 24 Core, 2.2GHz, 45MB Cache, 185 Watts.
Intel Xeon Gold 5th Gen Scalable Processors
1
x
Intel Xeon Gold 5512U, 28 Core, 2.1GHz, 52.5MB Cache, 185 Watts.
1
x
Intel Xeon Gold 5515+, 8 Core, 3.2GHz, 22.5MB Cache, 165 Watts.
1
x
Intel Xeon Gold 5520+, 28 Core, 2.2GHz, 52.5MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6526Y, 16 Core, 2.8GHz, 37.5MB Cache, 195 Watts.
1
x
Intel Xeon Gold 6530, 32 Core, 2.1GHz, 160MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6534, 8 Core, 3.9GHz, 22.5MB Cache, 195 Watts.
1
x
Intel Xeon Gold 6538N, 32 Core, 2.1GHz, 60MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6538Y+, 32 Core, 2.2GHz, 60MB Cache, 225 Watts.
1
x
Intel Xeon Gold 6542Y, 24 Core, 2.9GHz, 60MB Cache, 250 Watts.
1
x
Intel Xeon Gold 6544Y, 16 Core, 3.6GHz, 45MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6548N, 32 Core, 2.8GHz, 60MB Cache, 250 Watts.
1
x
Intel Xeon Gold 6548Y+, 32 Core, 2.5GHz, 60MB Cache, 250 Watts.
1
x
Intel Xeon Gold 6554S, 36 Core, 2.2GHz, 180MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6558Q, 32 Core, 3.1GHz, 60MB Cache, 350 Watts.
Intel Xeon Platinum 5th Gen Scalable Processors
1
x
Intel Xeon Platinum 8558, 48 Core, 2.1GHz, 260MB Cache, 330 Watts.
1
x
Intel Xeon Platinum 8558P, 48 Core, 2.7GHz, 260MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8558U, 48 Core, 2.0GHz, 260MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8562Y+, 32 Core, 2.8GHz, 60MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8568Y+, 48 Core, 2.3GHz, 300MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8570, 56 Core, 2.1GHz, 300MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8571N, 52 Core, 2.4GHz, 300MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8580, 60 Core, 2.0GHz, 300MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8581V, 60 Core, 2.0GHz, 300MB Cache, 270 Watts.
1
x
Intel Xeon Platinum 8592+, 64 Core, 1.9GHz, 320MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8592V, 64 Core, 2.0GHz, 320MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8593Q, 64 Core, 2.2GHz, 320MB Cache, 385 Watts.
Intel Xeon Silver 4th Gen Scalable Processors
1
x
Intel Xeon Silver 4410Y, 12 Core, 2.0GHz, 30MB Cache, 105 Watts.
1
x
Intel Xeon Silver 4416+, 20 Core, 2.0GHz, 37.5MB Cache, 165 Watts.
Intel Xeon Gold 4th Gen Scalable Processors
1
x
Intel Xeon Gold 5415+, 8 Core, 2.9GHz, 22.5MB Cache, 105 Watts.
1
x
Intel Xeon Gold 5418Y, 24 Core, 2.0GHz, 45MB Cache, 185 Watts.
1
x
Intel Xeon Gold 6426Y, 16 Core, 2.5GHz, 37.5MB Cache, 185 Watts.
1
x
Intel Xeon Gold 5420+, 28 Core, 2.0GHz, 52.5MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6430, 32 Core, 2.1GHz, 60MB Cache, 270 Watts.
1
x
Intel Xeon Gold 6434, 8 Core, 3.7GHz, 22.5MB Cache, 195 Watts.
1
x
Intel Xeon Gold 6442Y, 24 Core, 2.6GHz, 60MB Cache, 225 Watts.
1
x
Intel Xeon Gold 6438Y+, 32 Core, 2.0GHz, 60MB Cache, 205 Watts.
1
x
Intel Xeon Gold 6448Y, 32 Core, 2.1GHz, 60MB Cache, 225 Watts.
1
x
Intel Xeon Gold 6444Y, 16 Core, 3.6GHz, 45MB Cache, 270 Watts.
Intel Xeon Platinum 4th Gen Scalable Processors
1
x
Intel Xeon Platinum 8452Y, 36 Core, 2.0GHz, 67.5MB Cache, 300 Watts.
1
x
Intel Xeon Platinum 8470, 52 Core, 2.0GHz, 105MB Cache, 350 Watts.
1
x
Intel Xeon Platinum 8480+, 56 Core, 2.0GHz, 105MB Cache, 350 Watts.
Memory
Default part
DDR5 5600Mhz RDIMM Memory
1
x
16GB DDR5 5600Mhz RDIMM Memory
1
x
32GB DDR5 5600Mhz RDIMM Memory
1
x
64GB DDR5 5600Mhz RDIMM Memory
1
x
96GB DDR5 5600Mhz RDIMM Memory
1
x
128GB DDR5 5600Mhz RDIMM Memory
Raid Controller
Default part
Graid SupremeRAID Cards
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1000
Graid Technology SupremeRAID Core Software Module License with full Features support 8 Native NVMe drives Bundled SR-1001
Graid Technology SupremeRAID Core Software Module License with full Features support 12 Native NVMe drives Bundled SR-1001
GRAID SupremeRAID Core Software Module License with full features, supports 32 native NVMe drives bundled SR-1010
OCP 3.0
Default part
Intel OCP 3.0 Modules
Intel X710-T2L Dual Port 10GbE/5Gbe/2.5GbE/1GbE/100Mb RJ45, OCP 3.0
Intel X710-T4L Quad Port 10GbE/5GbE/2.5GbE/1GbE/100Mb RJ45, OCP 3.0
Intel X710-DA2 Dual Port 10/1GbE SFP+, OCP 3.0
Intel X710-DA4 Quad Port 10/1GbE SFP+, OCP 3.0
Intel E810-XXVDA2 Dual Port 25/10/1GbE SFP28, OCP 3.0
Intel E810-XXVDA4 Quad Port 25/10/1GbE SFP28, OCP 3.0
Intel E810-CQDA1 Single Port 100/50/25/10GbE QSFP28, OCP 3.0
Intel E810-CQDA2 Dual Port 100/50/25/10GbE QSFP28, OCP 3.0
M.2 Storage
Kingston DC2000B Series NVME M.2 SSD's
0
Kingston DC2000B 240GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 480GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
0
Kingston DC2000B 960GB M.2 (2280) NVMe Enterprise SSD (Heatsink)
Harddrives
Filter by:
Samsung PM9A3 2.5" U.2 NVME Data Centre
0
Samsung PM9A3 960GB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 1.92TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 3.84TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
0
Samsung PM9A3 7.68TB 2.5" U.2 NVME PCIE-E 4.0 Datacentre SSD
Micron 7500 MAX Enterprise U.3 NVMe - Mixed Use, 3 DWPD
0
Micron 7500 MAX 800GB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 1.6TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 3.2TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 6.4TB U.3 2.5" NVMe SSD
0
Micron 7500 MAX 12.8TB U.3 2.5" NVMe SSD
Micron 7500 Pro Enterprise U.3 NVMe - Read Intensive, 1 DWPD
0
Micron 7500 PRO 960GB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 1.9TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 3.84TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 7.68TB U.3 2.5" NVMe SSD
0
Micron 7500 PRO 15.3TB U.3 2.5" NVMe SSD
Micron 9400 MAX Enterprise U.3 NVMe - 3 DWPD
0
Micron 9400 MAX 6.4TB U.3 NVME SSD
0
Micron 9400 MAX 12.8TB U.3 NVME SSD
0
Micron 9400 MAX 25.6TB U.3 NVME SSD
Micron 9400 Pro Enterprise U.3 NVMe - 1 DWPD
0
Micron 9400 Pro 7.68TB U.3 NVME SSD
0
Micron 9400 Pro 15.36TB U.3 NVME SSD
0
Micron 9400 Pro 30.7TB U.3 NVME SSD
Power Supply
Networking
Default part
Intel 10GbE Adapters
Intel X550-T2 Dual Port 10GbE RJ45 Ethernet Adapter
Intel X520-SR2 Dual Port 10GbE SFP+ Server Adapter
Intel X710-DA2 Dual Port 10GbE SFP+ Ethernet Adapter
Intel 25/40GbE Adapters
Intel XXV710-DA2 Dual Port 25GbE SFP28 Ethernet Adapter
Intel XL710-QDA2 Dual Port 40GbE QSFP+ Ethernet Converged Adapter
Intel 100GbE Adapters
Intel E810-CQDA1 Single Port 100GbE QSFP28 Ethernet Controller
Intel E810-CQDA1 Dual Port 100GbE QSFP28 Ethernet Controller
NVIDIA Mellanox ConnectX-6 High Performance Adapters
ConnectX-6 900-9X662-0073-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X662-0083-ST0, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Crypto and Secure Boot, Tall Bracket
ConnectX-6 900-9X662-0053-ST1, 25GbE, Dual-port SFP28, PCIe 4.0 x8, No Crypto, Tall Bracket
ConnectX-6 900-9X663-0073-SQ0, 25GbE, With active cooling, Dual-port SFP28, PCIe 4.0 x8, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AF-0058-ST1, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket
ConnectX-6 900-9X6AG-0018-ST0, 200GbE , Single-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0056-ST1, 100GbE, Dual-port QSFP56, PCIe 4.0 x16,No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0076-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Secure Boot, No Crypto, Tall Bracket
ConnectX-6 900-9X6AG-0086-ST0, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
Rail Kit
Operating System
Default part
Open Source Linux
Open Source Linux Installed and Setup as per Customer Instructions
Microsoft Windows Server 2022
Microsoft Windows Server 2022 Standard (16-core)
Microsoft Windows Server 2022 Standard (24-core)
Microsoft Windows Server 2022 Datacenter (16-core)
Microsoft Windows Server 2022 Datacenter (24-core)
Support Package
Default part
Proxmox Virtual Environment
Proxmox VE Community Subscription 1 CPU / year
Proxmox VE Community Subscription 2 CPUs / year
Proxmox VE Community Subscription 4 CPUs / year
Proxmox VE Basic Subscription 1 CPU/year
Proxmox VE Basic Subscription 2 CPUs/year
Proxmox VE Basic Subscription 4 CPUs/year
Proxmox VE Standard Subscription 1 CPU/year
Proxmox VE Standard Subscription 2 CPUs/year
Proxmox VE Standard Subscription 4 CPUs/year
Proxmox VE Premium Subscription 1 CPU/year
Proxmox VE Premium Subscription 2 CPUs/year
Proxmox VE Premium Subscription 4 CPUs/year
Standard build time 5 working days
