80mm, PWM, 23.4 CFM (max), 200 - 3000RPM, 0.3 Sone (max), 1.9 mm-H2O (max), Fluid Dynamic Bearing, 4-Pin
£5.99 inc vat
£4.99 ex vat
Order Code: ARC-P8PST
During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.

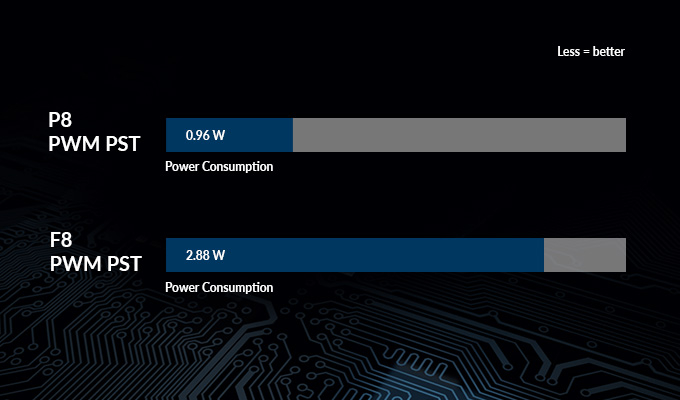

The motor is driven by a latest-generation PWM IC, which enables the new P8 PWM PST to operate much more efficiently than its predecessors. This saves energy without compromising performance.

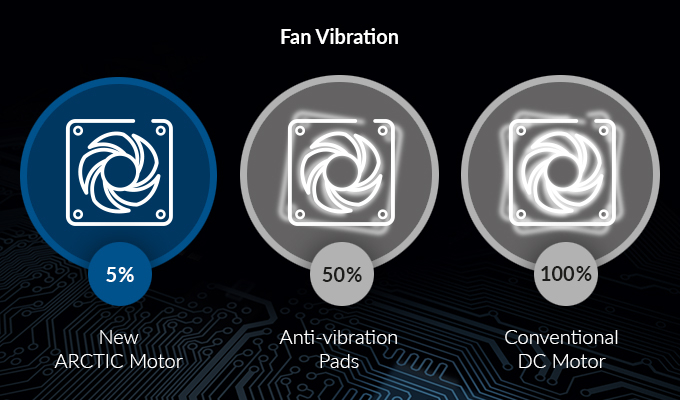

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

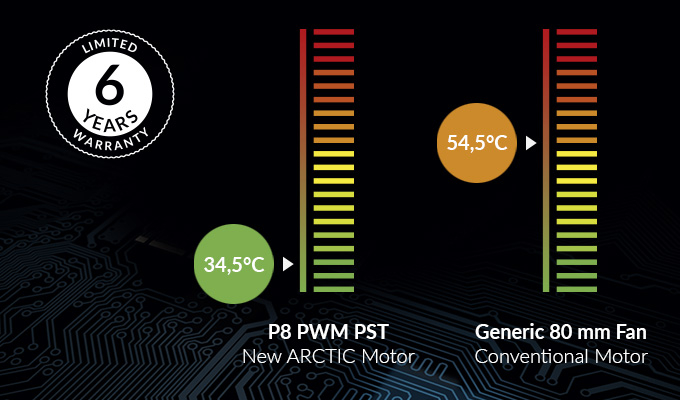

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

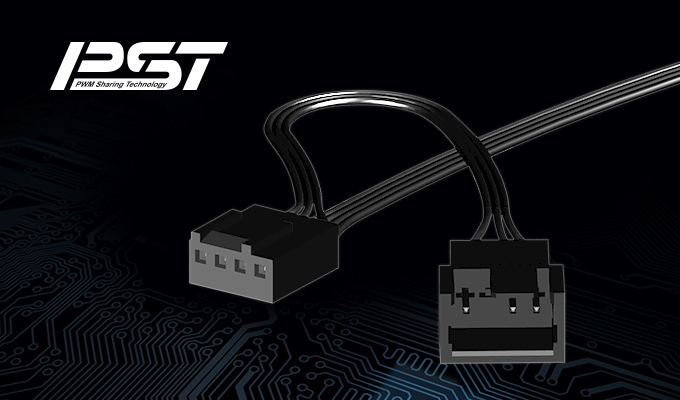

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

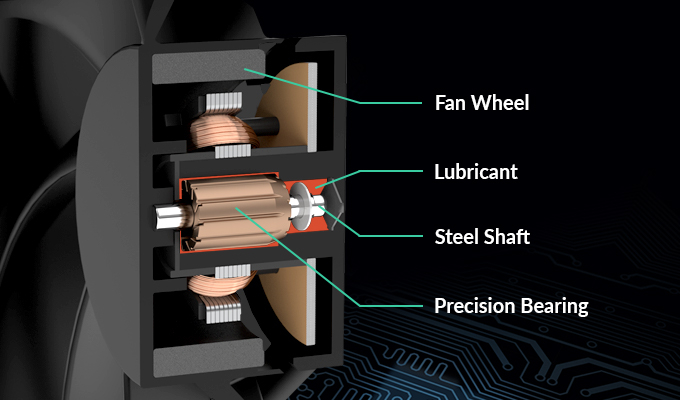

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

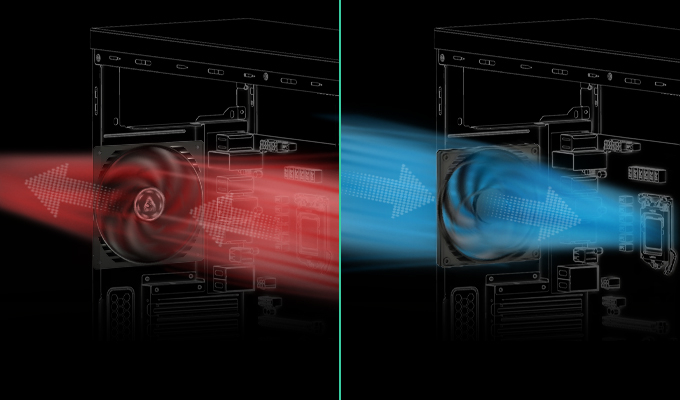

Push warm air out of the case or Pull cool air into your case
|Fan Size||80mm x 25mm|
|Fan Speed||200 - 3000 RPM|
|PWM Control||Yes (4-Pin)|
|Sound Level (Max)||0.3 Sone|
|Fan Airflow (Max)||23.4 CFM|
|Fan Airflow Type||Static Pressure|
|Static Pressure (Max)||1.9 mm-H2O|
|Fan Bearing||Fluid Dynamic Bearing|
|Package Quantity||1 x P8 PWM PST 80mm Fan|
