Micro ATX, LGA1700, DDR4, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x 1, 4 x SATA, 1 x M.2, Realtek 1Gb Ethernet, HDMI, DSub
£127.56 inc vat
£106.30 ex vat
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.

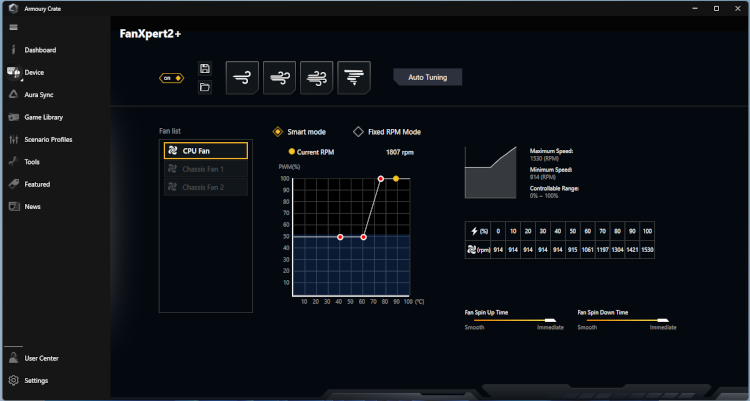

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Prime H610 series motherboards add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuative RGB lighting controls* that let you customise your system to create a uniquely personal look.
*NOTE: RGB motherboard headers not available on all PRIME Series H610 motherboards. See full specification for further details.
| CPU Support | 12th Gen Intel Core processors |
| Chipset | Intel H610 Express |
| Memory Support | 2 x DDR4 memory slots supporting up 64GB Dual Channel Technology Supports up to 3200Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 Speed) 1 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x HDMI 2.1 1 x DSub (VGA) NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 Key M, 2242/2260/2280, (PCIe 3.0 x4 Mode) |
| RAID | N/A |
| USB Rear I/O | 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A |
| USB Internal Connectors | 2 x USB 3.2 Gen 1 Type-A (2 per header) 2 x USB 2.0 Type-A (2 per header) |
| Thunderbolt | N/A |
| RGB LED Connectors | 1 x RGB Header |
| Audio | Realtek Audio Codec 7.1 HD Audio |
| LAN | 1 x Realtek GB LAN |
| WIRELESS | N/A |
| Back Panel Connectors | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI® port 1 x D-Sub port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse port |
| Internal Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Form Factor | Micro ATX 234mm x 203mm |
