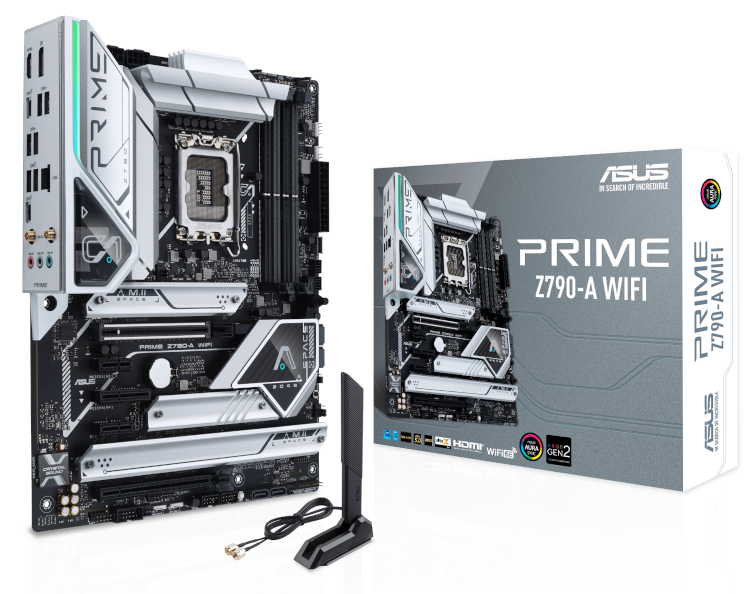

ASUS PRIME Z790-A WIFI Intel Z790 Chipset Socket 1700 ATX Motherboard - 90MB1CS0-M1EAY0

ASUS PRIME Z790-A WIFI Intel Z790 Chipset (Socket 1700) ATX Motherboard overview

PRIME Z790-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

CPU Support	13th Gen Intel Core processors 12th Gen Intel Core processors
Chipset	Intel Z790
Memory Support	4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports memory overclocking up to 7200MHz+ NOTE: Actual Memory data rate varies on CPU
Expansion Slots	1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 4.0 x4 (x4 Speed) 2 x PCIe 3.0 x1
Onboard Graphics	1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU
Storage	4 x SATA 6Gb/s 2 x M.2 Key M, 2242/2260/2280/22110, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280, (SATA & PCIe 4.0 x4 Mode)
RAID	0/1/5/10
USB Rear I/O	1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x USB 3.2 Gen 2 10Gbps Type-C 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A
USB Internal Connectors	1 x USB 3.2 Gen 2x2 20Gbps Type-C (Supports up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header)
Thunderbolt	1 x Thunderbolt header
RGB LED Connectors	3 x Addressable Gen 2 headers 1 x AURA RGB header
Audio	Realtek S1220A Codec 7.1 Surround Sound High Definition Audio
LAN	1 x Intel 2.5GbE LAN
WIRELESS	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Supports Bluetooth 5.3
Back Panel Connectors	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 3 x Audio jacks
Internal Connectors	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
Form Factor	ATX 305mm x 244mm
