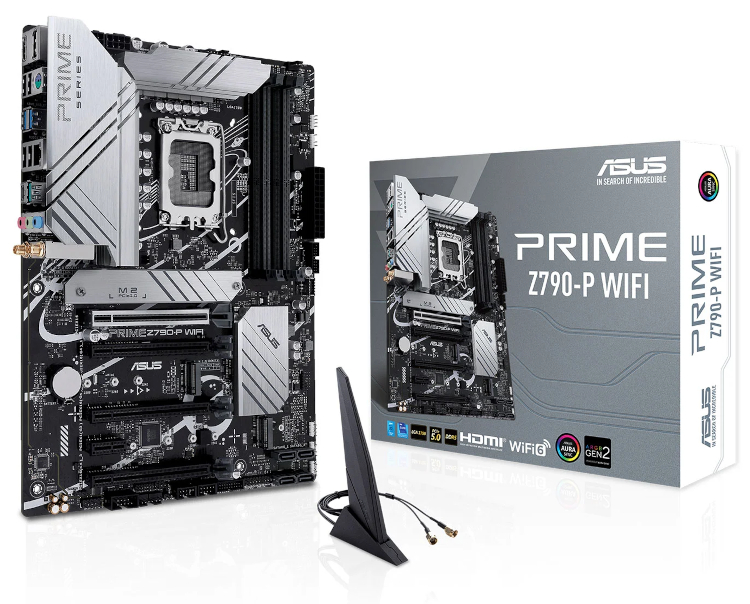

ASUS PRIME Z790-P WIFI, ATX, LGA1700, DDR5, 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 3 x M.2, 2.5GB LAN, WIFI 6
£232.99
£199.99 inc vat
£166.66 ex vat
You save £33.00
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
| CPU Support | 14th Gen Intel Core processors 13th Gen Intel Core processors 12th Gen Intel Core processors |
| Chipset | Intel Z790 |
| Memory Support | 4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports memory overclocking up to 7200MHz+ NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 3 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 Key M, 2242/2260/2280/22110, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280/22110, (SATA & PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280, (PCIe 4.0 x4 Mode) |
| RAID | 0/1/5/10 |
| USB Rear I/O | 1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 |
| USB Internal Connectors | 1 x USB 3.2 Gen 2 10Gbps Type-C 4 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header) |
| Thunderbolt | 1 x Thunderbolt header |
| RGB LED Connectors | 3 x Addressable Gen 2 headers 2 x AURA RGB header |
| Audio | Realtek Audio Codec 7.1 Surround Sound High Definition Audio |
| LAN | 1 x Realtek 2.5GbE LAN |
| WIRELESS | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Supports Bluetooth 5.2 |
| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ (USB4) Header |
| Form Factor | ATX 305mm x 244mm |
