ASUS ROG STRIX Z270E GAMING Intel Z270 (Socket 1151) ATX Motherboard

i7 / i5 / i3 (7th Gen), ATX, DDR4, 6x USB 2, 6x USB 3.0, 6x SATA 3,2x USB 3.1, 2 x M.2 Slots, 3 x PCIe 3.0x16, 2-way Nvidia SLI/3-way crossfire

ASUS ROG STRIX Z270E GAMING Intel Z270 Socket 1151 ATX Motherboard
1 in stock question tooltip

£192.25 inc vat

£160.21 ex vat

payment cards

Order Code: ASU-Z27SE

Manf.Code: STRIX Z270E GAMING

What our customers say about us

Express Delivery

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

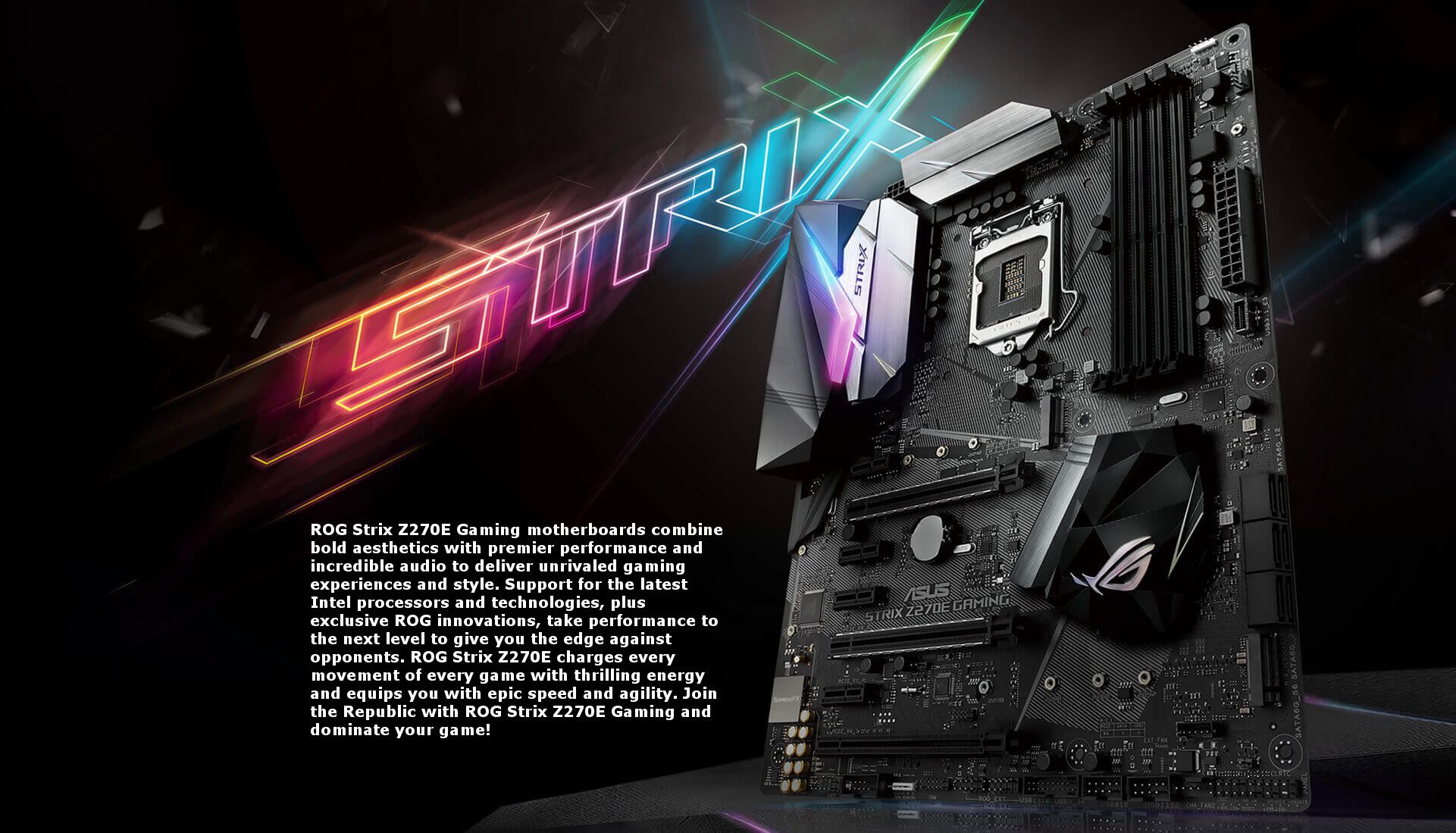

ASUS ROG STRIX Z270E GAMING Intel Z270 (Socket 1151) ATX Motherboard overview

REPUBLIC OF GAMERS

STRIX Z270E GAMING


LIGHTING

AURA LIGHTING CONTROL

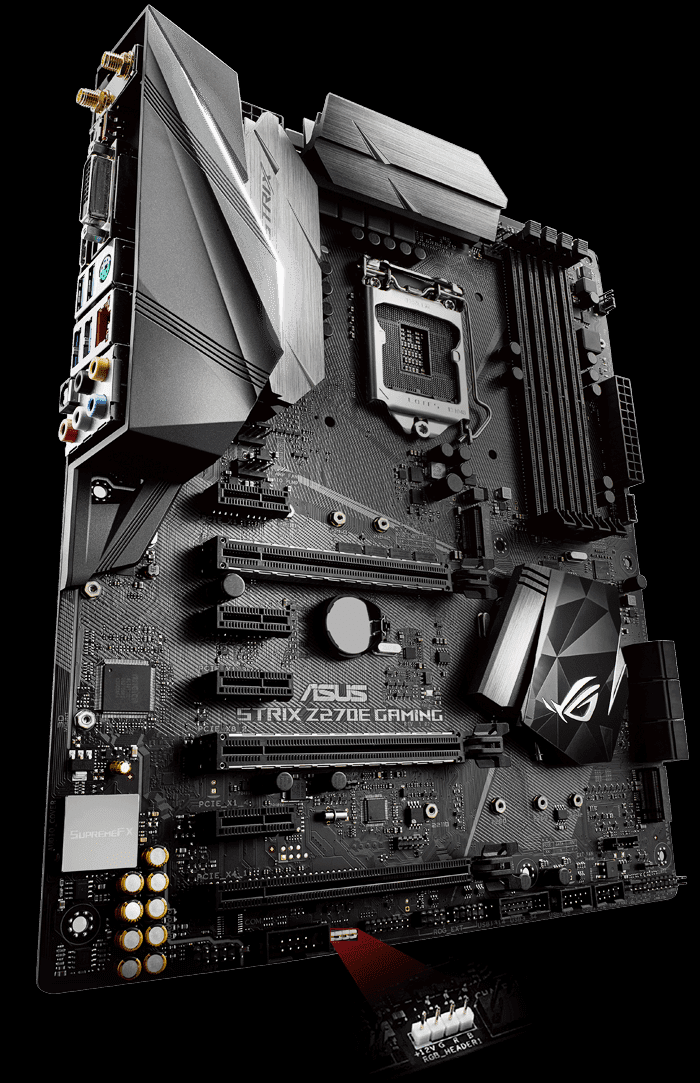

Create your own custom LED lighting effects with the intuitive Aura software. Cast a stunning multi-color glow across your build with the powerful RGB LEDs built in to ROG Strix Z270E Gaming, or attach separate RGB strips using the two onboard 4-pin headers. You can even use both at the same time and enjoy perfect lighting synchronization. Fire up Aura and enjoy the creative freedom of nine different lighting themes.

*The Aura RGB-strip header supports standard 5050 RGB LED strips with a maximum power rating of 2A (12V). For maximum brightness, strip length should not exceed 2m.
* One extension cable is included. RGB LED strips are sold separately.

OUTSHINE THE COMPETITION

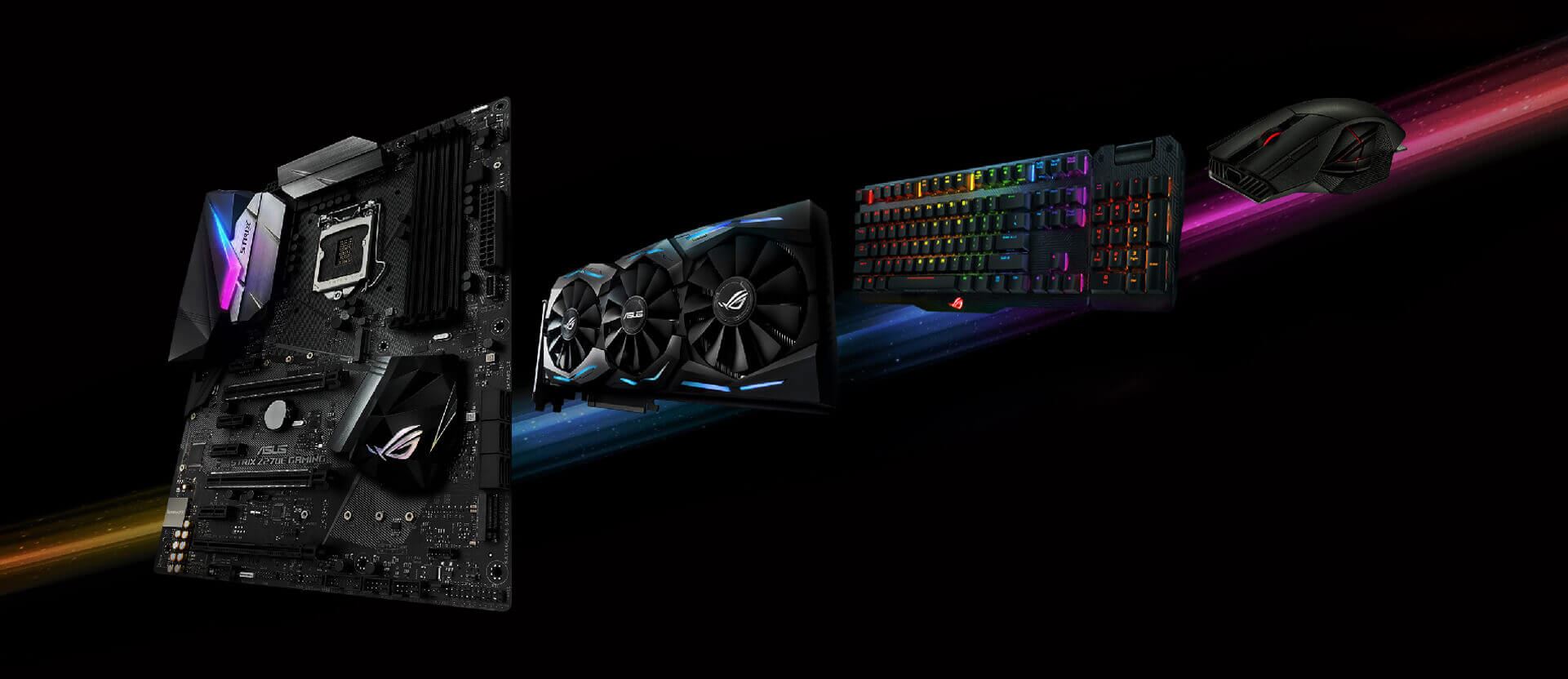

ASUS Aura Sync RGB LED technology makes ROG Strix Z270E Gaming the control hub for your illumination ambitions — so it's easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices.

SCAN AND DETECT TO DOMINATE

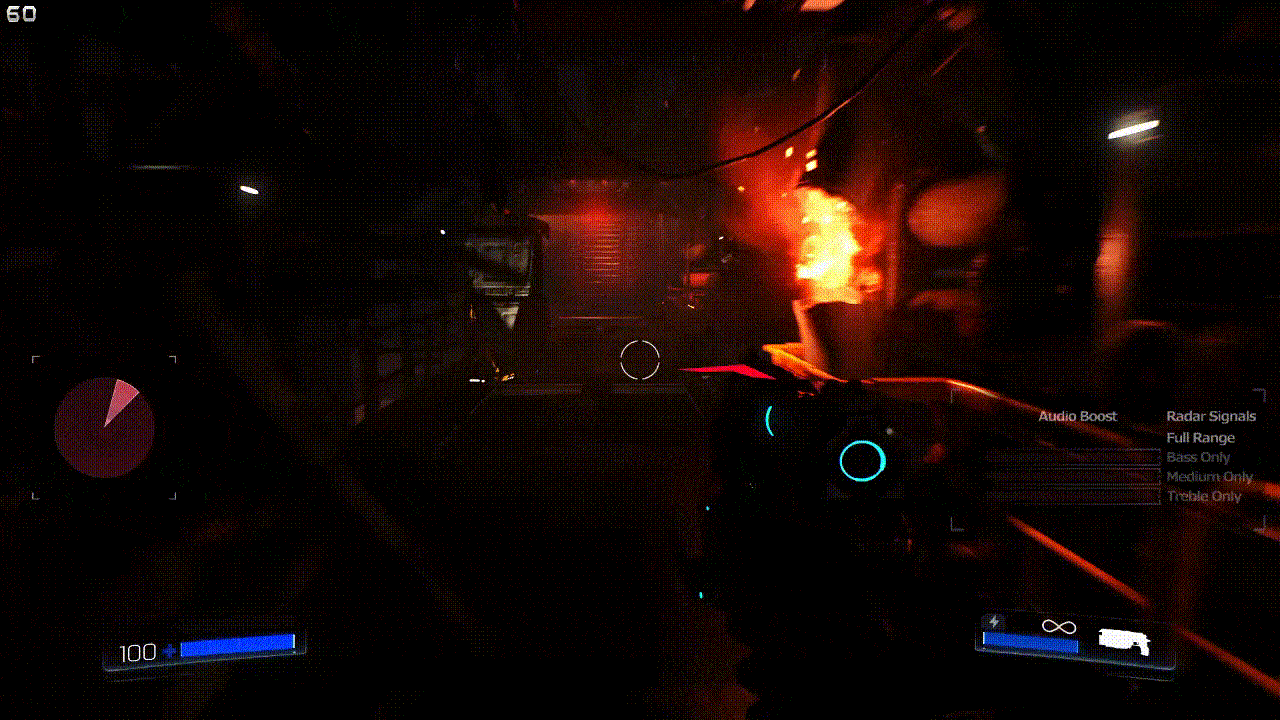

SONIC RADAR III

We've given Sonic Radar III an overhaul, evolving the audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you — and we've even added an onscreen arrow to help you pinpoint the enemy's position instantly! See the origin of key in-game sounds and hone your enemy-pinpointing skills. Plus the new audio boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!


IMPROVED AUDIO ALGORITHM

The new Sonic Radar III audio algorithm is now even more accurate to allow enemies to be pinpointed with even more accuracy.

3D ENGINE

Sonic Radar III is built around it's all new HUD with an in-game 3 dimensional arrow for a more intuitive experience.

AUDIO BOOST

The new audio boost feature now allows the boosted audio to be heard directly.

AUDIO RADAR

Sonic Radar III is effective regardless of surrounding noise and chaos.

PERFORMANCE

ASUS PRO CLOCK TECHNOLOGY

IMPROVED OVERCLOCKING FOR FASTER GAMING PERFORMANCE

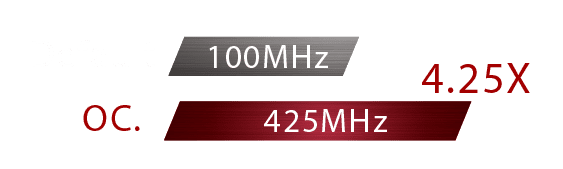

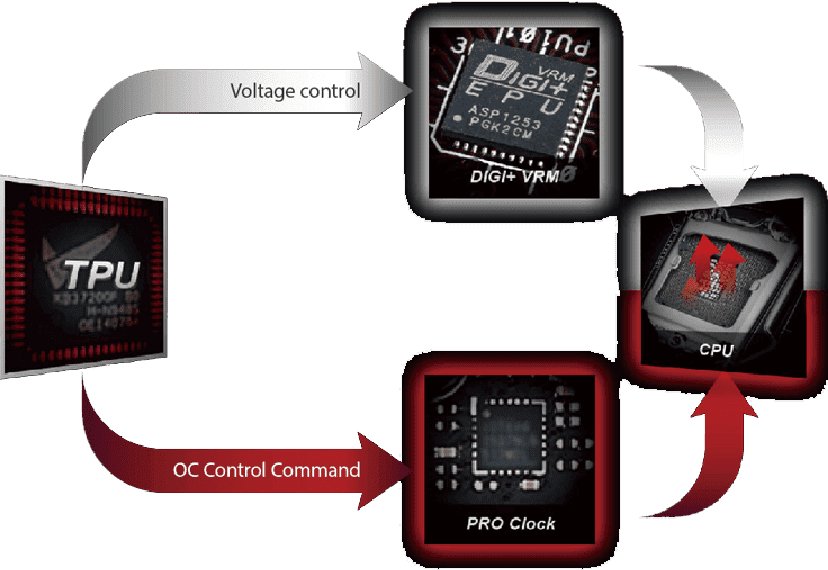

A dedicated base-clock generator designed for 7th Generation Intel© processors allows overclocked base base-clock frequencies up to or beyond 425MHz*. This custom solution works in tandem with the ASUS TurboV processing unit to enhance voltage and base-clock overclocking control, — providing an exciting new way to boost performance to extreme heights.

BCLK Range (MHz)

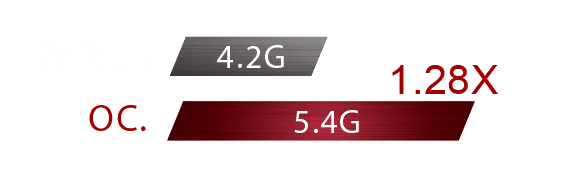

CPU Frequency

OS Support

The Asus Z270 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
  • Windows® 8.1 64-bit*
  • Windows® 7*

  • *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors

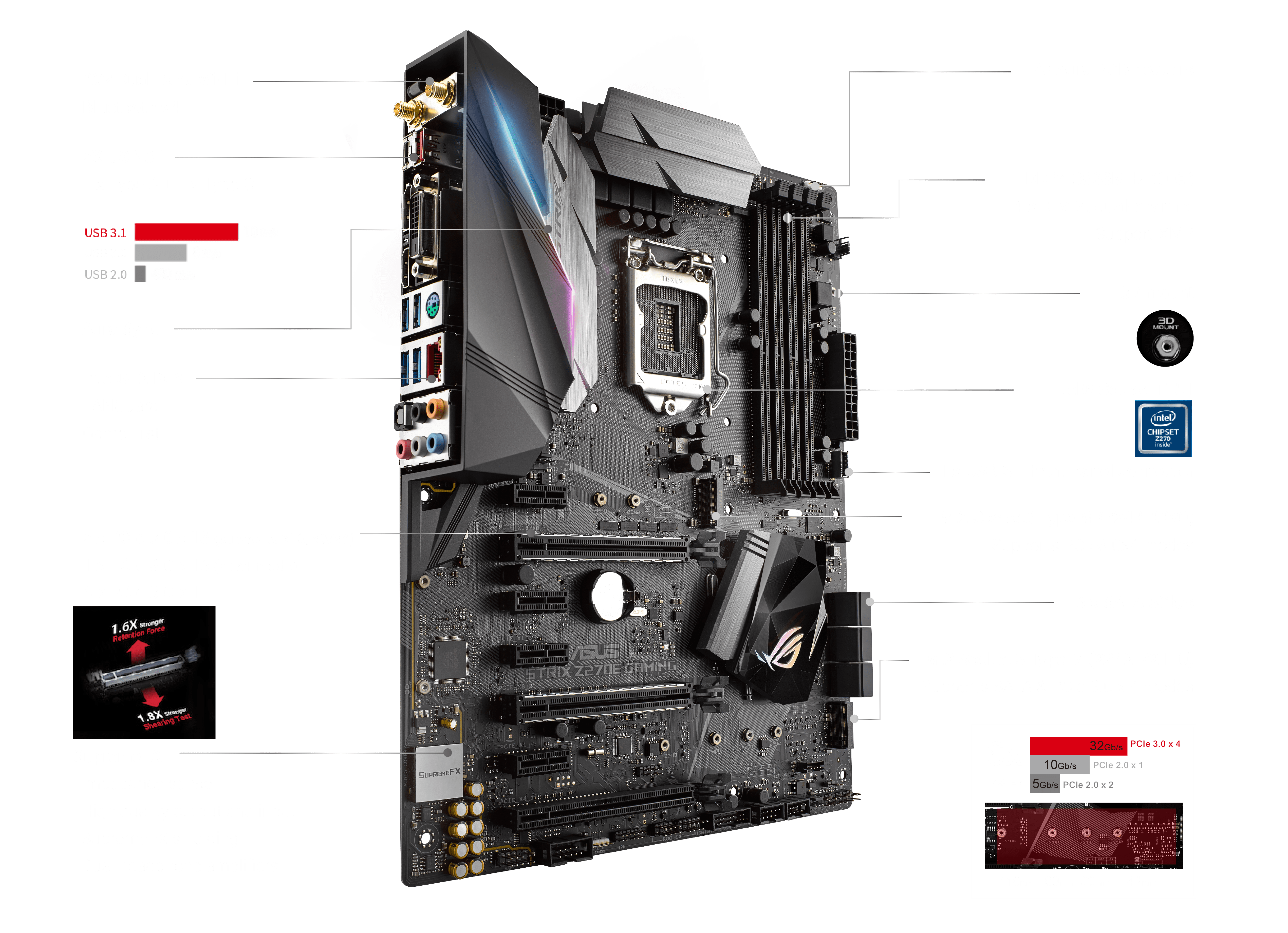

CPU
Socket Intel® 1151 for 7th / 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Architecture 14nm CPU
Intel turboboost technology 2.0 Supported (Dependent on CPU Type)
Chipset Intel Z270 Chipset

Memory
Memory Slots 4 DIMM / 64GB Max DDR4
Memory Support DDR4 2133, 2400(O.C) - 3866(O.C) Un-buffered memory
ECC No
Channels Dual Channel Architecture
XMP Support Yes

Expansion
Expansion Slots 2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8)
1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)
4 x PCIe 3.0/2.0 x1 slot

VGA
Integrated Graphics Processor Intel HD Graphics Support
Multi-VGA Output Support DisplayPort/DVI-D/HDMI ports
HDMI 1.4b Yes (With max resolution 4096 x [email protected]
DVI-D Yes (With max resolution 1920 x [email protected]
DisplayPort 1.2 Yes (With max resolution 4096 x [email protected]
Multi GPU Support 2 Way NVIDIA SLI
3 Way AMD CrossfireX
Storage Connectivity
Sata 6 x SATA 6Gb/s ports
M.2 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x4 mode)
1 x vertical M.2_2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)
Optane Memory Intel Optane Memory Support

Note: Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

Ports & Connectivity - External IO Panel
Ports Present & Quantity 1 x ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
2 x USB3.1 ports (1 x Type-A [red] and 1 x Type-C ports at back panel)
1 x DVI port
1 x HDMI port
1 x DP port
1 x PS/2 keyboard/mouse combo port
4 x USB 3.0 ports [blue]
1 x Anti-surge LAN (RJ45) port
5 x Audio jacks
1 x Optical S/PDIF out

Ports & Connectivity - Internal IO
Ports Present & Quantity 1 x USB 3.1 front panel connector
1 x USB 3.0 connectors support additional 2 x USB 3.0 ports
3 x USB 2.0 connectors support additional 6 x USB 2.0 ports [one connector via ROG_EXT header]
6 x SATA 6Gb/s connectors
1 x ROG extension (ROG_EXT) header
1 x 4-Pin H_AMP_FAN connector
1 x 4-Pin AIO_PUMP fan connector
1 x 4-Pin CPU fan connector
1 x 4-Pin CPU_OPT fan connector
2 x 4-Pin Chassis fan connectors
1 x 5-Pin Extension fan connector
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support ( Support PCIE and SATA modes)
1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Support PCIE mode only)
1 x Front panel audio connector (AAFP)
1 x COM connector
2 x RGB Headers
1 x TPM connector
1 x System panel connector
1 x Thermal sensor connector
1 x CPU_OV
1 x Clear CMOS jumper (2-pin)

Accessories
Accessories User guide
Support DVD
I/O Shield
4 x SATA 6Gb/s cables
1 x SLI HB BRIDGE (2-WAY-M)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x RGB LED extension cable
1 x CPU Installation tool
1 x ROG cable label
1 x ROG Strix sticker
1 x 3D Printing Mount
1 x M.2 Screw Package
1 x ROG Coaster

Software
Software Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)


Operating System Support
OS Windows® 10 64-bit
Windows® 8.1 64-bit*
Windows® 7*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
Physical
Form Factor ATX
Dimensions 12”x 9.6” (30.5cm x 24.4cm)
