ASUS ROG STRIX Z270H GAMING Intel Z270 (Socket 1151) ATX Motherboard

Intel Socket 7th/6th Generaton Core i7/i5/i3/Pentium/Celeron, DDR4, 2 way SLI/CrossfireX, 6 x Sata 3

ASUS ROG STRIX Z270H GAMING Intel Z270 Socket 1151 ATX Motherboard
2 in stock question tooltip

£159.98 inc vat

£133.32 ex vat

payment cards

Order Code: ASU-Z27SH

Manf.Code: STRIX Z270H GAMING

What our customers say about us

Express Delivery

Free Delivery Available

Delivered within 3-5 working days

More delivery options including Weekend, timed and European delivery are also available at the checkout.

Low Rate 14.9% Finance

Spread the cost of your purchase with a low rate 14.9% APR over 12, 24 or 36 months.

See examples and more info

In the unlikey event that you are unhappy with your purchase, simply return it to us within 14 days for a refund.*

*Excludes delivery costs. Item must be in original condition, not applicable to opened Software/Licenses or customised items.

Full details

If you are buying for work or your business we offer a range of benefits to help, such as:

  • Credit Account Facilities (subject to approval)
  • ISO 9001/14001 Certification
  • Business Leasing
  • Members of major purchasing frameworks
  • Microsoft Gold Partner
  • VMWare Education Specialist
Find out more

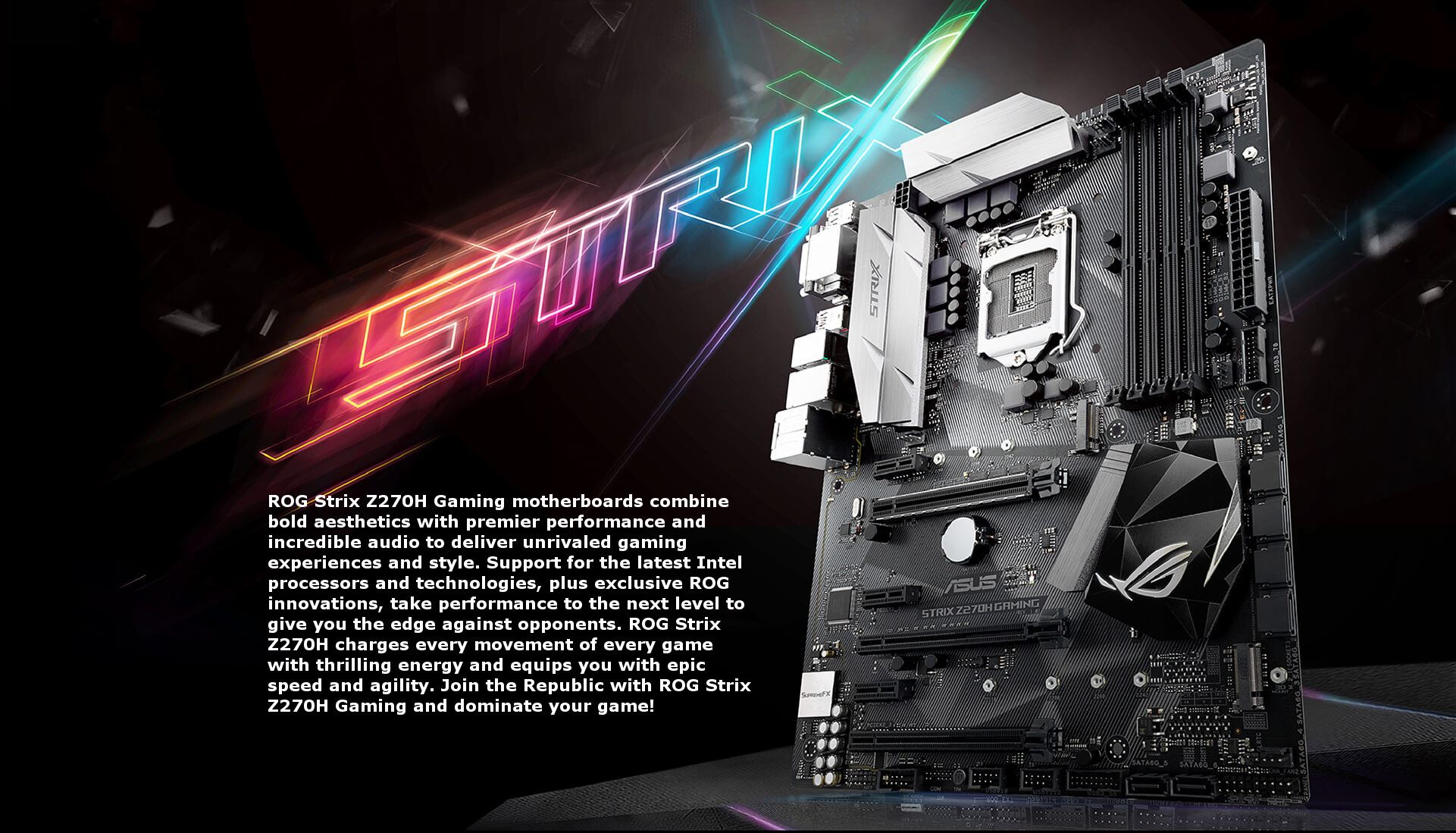

ASUS ROG STRIX Z270H GAMING Intel Z270 (Socket 1151) ATX Motherboard overview

REPUBLIC OF GAMERS

STRIX Z270H GAMING


SCAN AND DETECT TO DOMINATE

SONIC RADAR III

We've given Sonic Radar III an overhaul, evolving the audio engine to process sounds more accurately than ever, ensuring you're always aware of what's going on around you — and we've even added an onscreen arrow to help you pinpoint the enemy's position instantly! See the origin of key in-game sounds and hone your enemy-pinpointing skills. Plus the new audio boost feature provides filters that let you hear even the faintest sounds, so you can become the hunter, not the hunted!


IMPROVED AUDIO ALGORITHM

The new Sonic Radar III audio algorithm is now even more accurate to allow enemies to be pinpointed with even more accuracy.

3D ENGINE

Sonic Radar III is built around it's all new HUD with an in-game 3 dimensional arrow for a more intuitive experience.

AUDIO BOOST

The new audio boost feature now allows the boosted audio to be heard directly.

AUDIO RADAR

Sonic Radar III is effective regardless of surrounding noise and chaos.

PERFORMANCE

ASUS PRO CLOCK TECHNOLOGY

IMPROVED OVERCLOCKING FOR FASTER GAMING PERFORMANCE

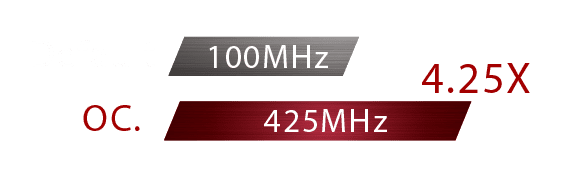

A dedicated base-clock generator designed for 7th Generation Intel© processors allows overclocked base base-clock frequencies up to or beyond 425MHz*. This custom solution works in tandem with the ASUS TurboV processing unit to enhance voltage and base-clock overclocking control, — providing an exciting new way to boost performance to extreme heights.

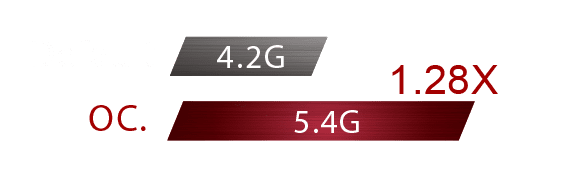

BCLK Range (MHz)

CPU Frequency

THIRD-GENERATION
ASUS T-TOPOLOGY

DDR4 OVERCLOCKING
STRENGTH IN NUMBERS

With support for DDR4 memory, ROG Strix Z270H Gaming lets you drive memory frequencies to 3866MHz and beyond when overclocked! ASUS-exclusive T-Topology circuit design provides superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. With innovative equidistant memory channels, T-Topology delivers balanced control and powerful overclocking compatibility.

BEYOND VR READY

ROG Strix Z270H Gaming isn't just VR Ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that ROG Strix Z270H Gaming has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance after you've taken off the headset. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

OS Support

The Asus Z270 Chipset Motherboards Support the following Operating Systems:

  • Windows® 10 64-bit
  • Windows® 8.1 64-bit*
  • Windows® 7*

  • *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
CPU
Socket Intel® 1151 for 7th / 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Architecture 14nm CPU
Intel turboboost technology 2.0 Supported (Dependent on CPU Type)
Chipset Intel Z270 Chipset

Memory
Memory Slots 4 DIMM / 64GB Max DDR4
Memory Support DDR4 2133, 2400(O.C) - 3866(O.C) Un-buffered memory
ECC No
Channels Dual Channel Architecture
XMP Support Yes

Expansion
Expansion Slots 2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8)
1 x PCIe 3.0/2.0 x16 slot (max at x2 mode)
3 x PCIe 3.0/2.0 x1 slot

VGA
Integrated Graphics Processor Intel HD Graphics Support
Multi-VGA Output Support HDMI/DVI-D ports
HDMI 1.4b Yes (With max resolution 4096 x [email protected] / 2560 x [email protected])
DVI-D Yes (With max resolution 1920 x [email protected])
Maximum Display Support 3
Multi GPU Support 2 Way NVIDIA SLI/AMD CrossfireX
Storage Connectivity
Sata 6 x SATA 6Gb/s ports
M.2 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280/21100 storage devices support (both SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Optane Memory Intel Optane Memory Support

Note: Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

Ports & Connectivity - External IO Panel
Ports Present & Quantity 2 x USB 2.0 ports [black]
4 x USB 3.0 ports [blue]
1 x DVI Port
1 x HDMI port
1 x PS/2 keyboard/mouse combo port
2 x USB 3.1 Port (Type-A)
5 x audio jacks
1 x optical S/PDIF Out
1 x Anti-surge LAN (RJ45) port

Ports & Connectivity - Internal IO
Ports Present & Quantity 2 x USB 3.0 connector supports additional 4 x USB 3.0 ports
2 x USB 2.0 connectors support additional 4 x USB 2.0 ports
6 x SATA 6Gb/s connectors
1 x 4-Pin CPU_FAN connector
1 x 4-Pin CPU_OPT fan connector
1 x 4-Pin AIO_PUMP connector
2 x 4-Pin CHA_FAN connectors
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x Front panel audio connector (AAFP)
1 x COM connector
1 x TPM connector
1 x Clear CMOS jumper
1 x System panel connector
1 x CPU_OV jumper

Storage Interfaces & Controllers
Intel Z270 Express 6 x SATA 6Gb/s (RAID 0,1,5,10)
3 x SATA Express 10Gb/s
1 x M.2 32Gb/s (2242/2260/2280/22110) (PCIe & SATA Mode)
1 x M.2 32Gb/s (2242/2260/2280) (PCIe & SATA Mode)
2 x U.2 32Gb/s
ASMedia Controller 2 x SATA 6Gb/s

Note: 6 SATA 6Gb/s Ports Reserved for SATA Express

Accessories
Accessories User guide
ROG motherboard support DVD
1 x I/O Shield
1 x 2-in-1 SATA 6Gb/s cables
1 x SLI HB BRIDGE (2-WAY-M)
1 x CPU Installation tool
1 x ROG cable label set
1 x ROG Strix sticker
1 x M.2 Screw Package

Software
Software Drivers
ROG GameFirst IV
ROG RAMCache II
ROG Clone Drive
ROG CPU-Z
Anti-virus software (OEM version)
ASUS WebStorage
ASUS Utilities

Operating System Support
OS Windows® 10 64-bit
Windows® 8.1 64-bit*
Windows® 7*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.

Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.

Delivery Options

Next Working Day Delivery

Get your order delivered the next working day for £5.99, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared.

Pre 12 Next Working Day Delivery

Get your order delivered the next working day before 12:00pm for £8.38, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared. Some orders if via PayPal and the first customer order may not clear in time.

Weekend Delivery - Saturday & Sunday

If you need your order at the weekend, for £9.98, you can specify the day you wish to have it delivered to you, Saturday or Sunday providing your order has been placed by 17:00 on the Friday before.

Economy Delivery

Economy delivery is available on all orders of any value being shipped within the UK.

About Asus

Asus are a top brand in the field of NVIDIA GeForce and AMD Graphics Cards, as well as Motherboards, Monitors and Networking products. Their Gaming brand ROG (Republic of Gamers) features products highly rated by gamers around the world.

Reviews of the ASUS ROG STRIX Z270H GAMING Intel Z270 (Socket 1151) ATX Motherboard
