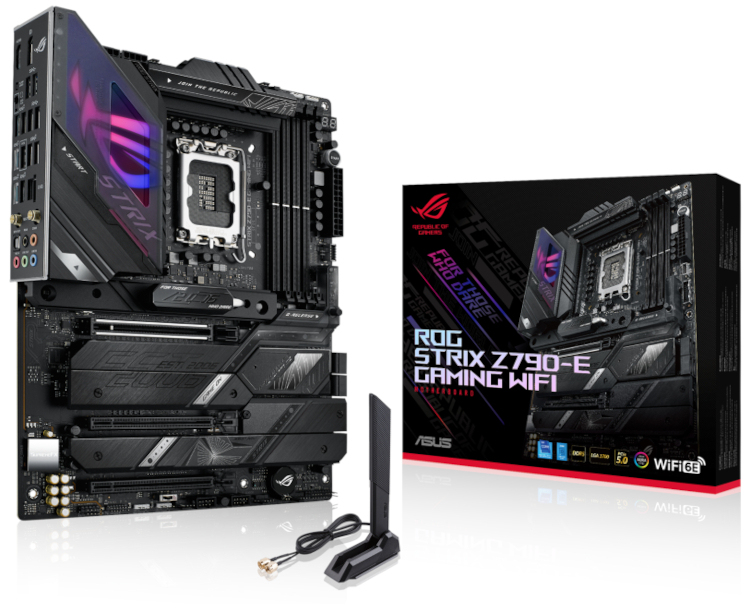

ROG STRIX Z790-E GAMING WIFI, ATX, LGA1700, DDR5, 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 5 x M.2, 4 x SATA, 2.5G LAN, WIFI 6E, A-RGB
£487.99
£399.98 inc vat
£333.32 ex vat
You save £88.01
Or £17.28 for 24 monthswith 10% deposit of £40.00
Slash the 6GHz barrier in style with the Strix Z790-E. Translucent shrouds outline its RGB ignition panel, alluding to its ability to jump into lightspeed under the guidance of AI Overclocking and a hyper-reactive VRM. DDR5 enhancements and an assortment of PCIe 5.0 options ramp up velocity even further, and setup is a breeze thanks to its unique Q-Design feature set.
| CPU Support | 14th Gen Intel Core processors 13th Gen Intel Core processors 12th Gen Intel Core processors |
| Chipset | Intel Z790 |
| Memory Support | 4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports memory overclocking up to 7800MHz+ NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 2 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 Key M, 2242/2260/2280/25110, (PCIe 5.0 x4 Mode) 3 x M.2 Key M, 2242/2260/2280, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280, (SATA & PCIe 4.0 x4 Mode) |
| RAID | 0/1/5/10 |
| USB Rear I/O | 1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x USB 3.2 Gen 2 10Gbps Type-C 6 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A |
| USB Internal Connectors | 1 x USB 3.2 Gen 2x2 20Gbps Type-C (Supports up to 30W PD Fast-charge) 4 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header) |
| Thunderbolt | 1 x Thunderbolt (USB4) header |
| RGB LED Connectors | 3 x Addressable Gen 2 headers 1 x AURA RGB header |
| Audio | ROG SupremeFX 7.1 Surround Sound Realtek ALC4080 Codec Savitech SV3H712 AMP Support for S/PDIF Out |
| LAN | 1 x Intel 2.5GbE LAN |
| WIRELESS | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Supports Bluetooth 5.3 |
| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Alternative PCIe Mode Switch 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Start button 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| Form Factor | ATX 305mm x 244mm |
