ASUS TUF GAMING X570-PLUS WI-FI AMD X570 Chipset Socket AM4 ATX Motherboard - 90MB1170-M0EAY0

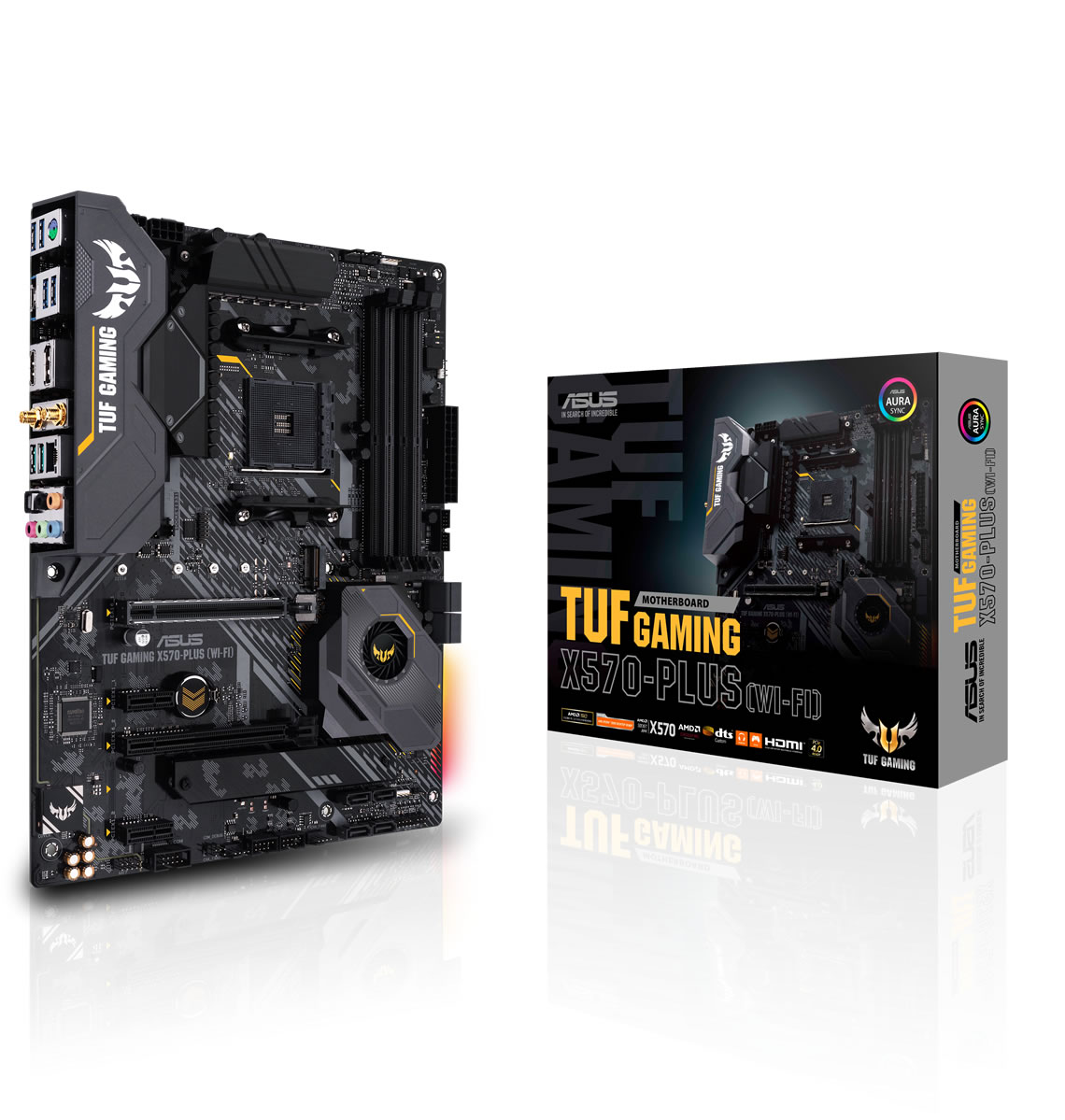

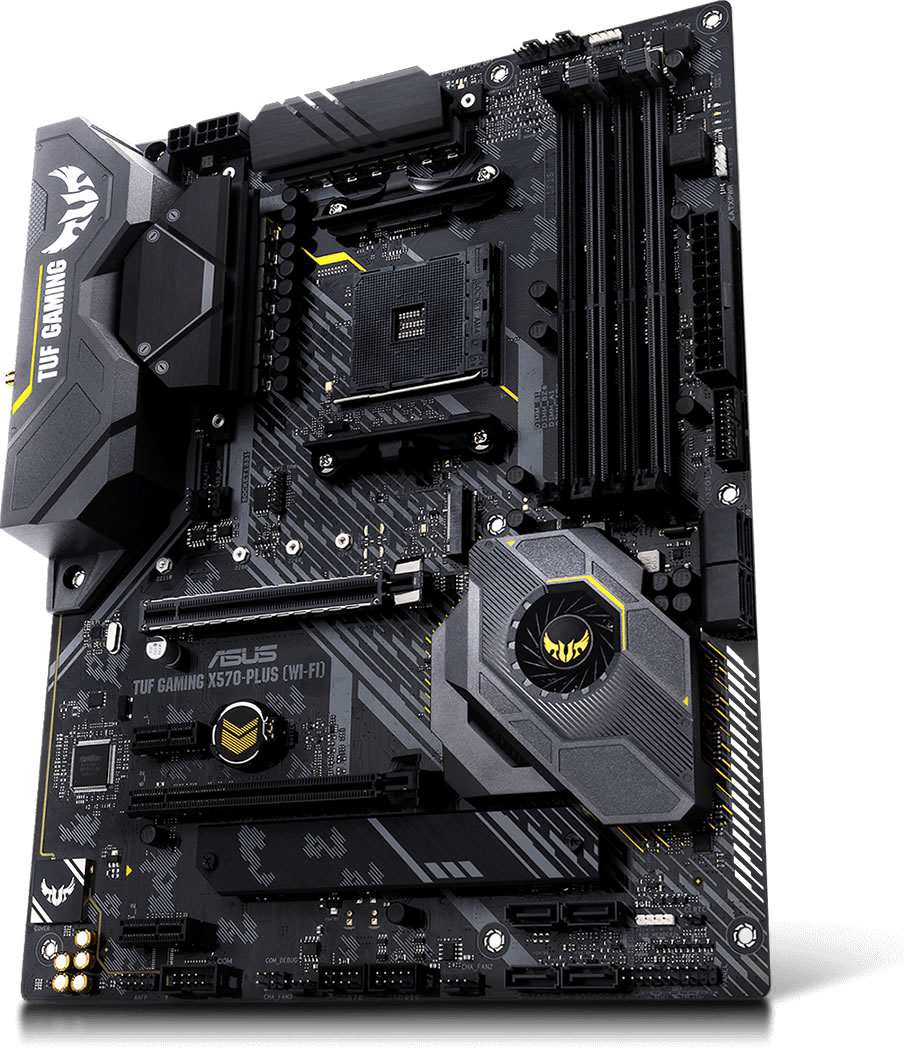

ASUS TUF GAMING X570-PLUS (WI-FI) AMD X570 Chipset (Socket AM4) ATX Motherboard overview

DURABLE. STABLE. RELIABLE

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

Dr. MOS

The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

Dual PCIe 4.0 m.2

Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

ASUS OPTIMEM

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.

TUF gaming alliance

TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

EXCLUSIVE GIGABIT ETHERNET

Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.

Intel Wireless-AC 9260

TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

CPU Support
1st, 2nd and 3rd Generation AMD AM4 Ryzen Series CPUs
Chipset
AMD X570
Memory Support
4x DDR4 memory slots supporting up 128GB
Dual Channel Technology
Supports up to 4400 MHz ECC & non-ECC, un-buffered memory (3rd Gen Ryzen)
Supports up to 3600 MHz ECC & non-ECC, un-buffered memory (2nd Gen Ryzen)
Supports up to 3200 MHz ECC & non-ECC, un-buffered memory (1st Gen Ryzen)
Expansion Slots
1 x PCIe 4.0 x16 (3rd Gen Ryzen)
1 x PCIe 3.0 x16 (2nd Gen Ryzen)
1 x PCIe 3.0 x16 (1st/2nd Gen Ryzen with Vega Graphics)
1 x PCIe 4.0 x16 (X570 Chipset)
3 x PCIe 4.0 x1 (X570 Chipset)
Onboard Graphics
1 x HDMI
1 x DisplayPort
Storage
8 x SATA 6Gb/s (Supports RAID 0,1,10)
1 x M.2 Key M, 2242/2260/2280/21100, (SATA & PCIe 4.0 x4 Mode) (3rd Gen Ryzen)
1 x M.2 Key M, 2242/2260/2280/21100, (SATA & PCIe 3.0 x4 Mode) (2nd Gen Ryzen)
1 x M.2 Key M, 2242/2260/2280/21100, (SATA & PCIe 4.0 x4 Mode) (X570 Chipset)
USB
4 x USB 3.2 Gen1 Type A on Rear IO
2 x USB 3.2 Gen2 Type A on Rear IO
1 x USB 3.2 Gen2 Type C on Rear IO
4 x USB 2.0 available through USB headers
2 x USB 3.2 Gen 1 available through USB 3.2 Header
Audio
Realtek ALC S1200A 8-Channel High Definition Audio CODEC
LAN
1 x Realtek L8200A LAN
WIRELESS
Intel® Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports 2x2 MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Back Panel Connectors
1 x PS/2 Combo
4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 2 Type C
1 x RJ45
5 x Audio Jacks
1 x Optical S/PDIF
1 x HDMI
1 x DisplayPort
WIFI Antenna Connectors
Internal Connectors
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Form Factor
ATX
305mm x 244mm
