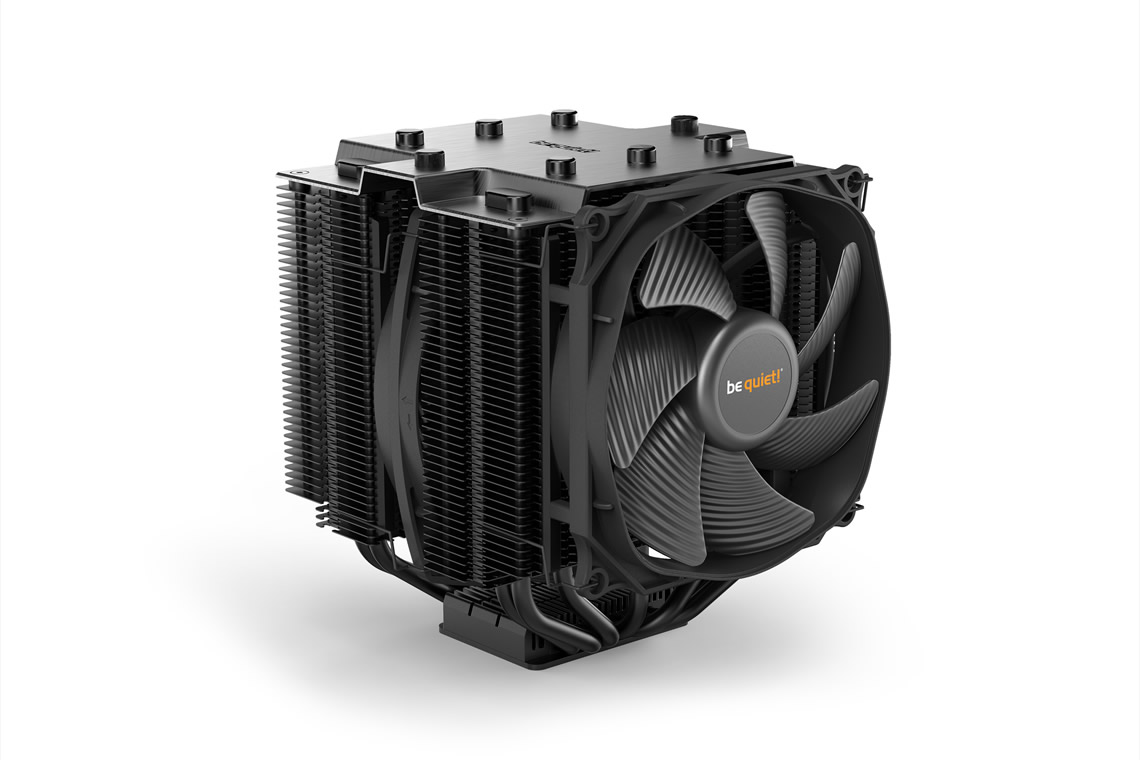

BeQuiet! Dark Rock Pro TR4 CPU Air Cooler
AMD TR4, 1 x 135mm Fan, 1 x 120mm Fan, 250W TDP, up to 1500 RPM, up 24.3dBA, 4-Pin PWM, 3 year Warranty
Only 1 left in stock
£83.52 inc vat
£69.60 ex vat
AMD TR4, 1 x 135mm Fan, 1 x 120mm Fan, 250W TDP, up to 1500 RPM, up 24.3dBA, 4-Pin PWM, 3 year Warranty
£83.52 inc vat
£69.60 ex vat
No compromise in silence and performance for overclocked systems and demanding graphics applications! Dark Rock Pro TR4 is designed for AMD TR4 only and provides an impressive rating of 250W TDP.

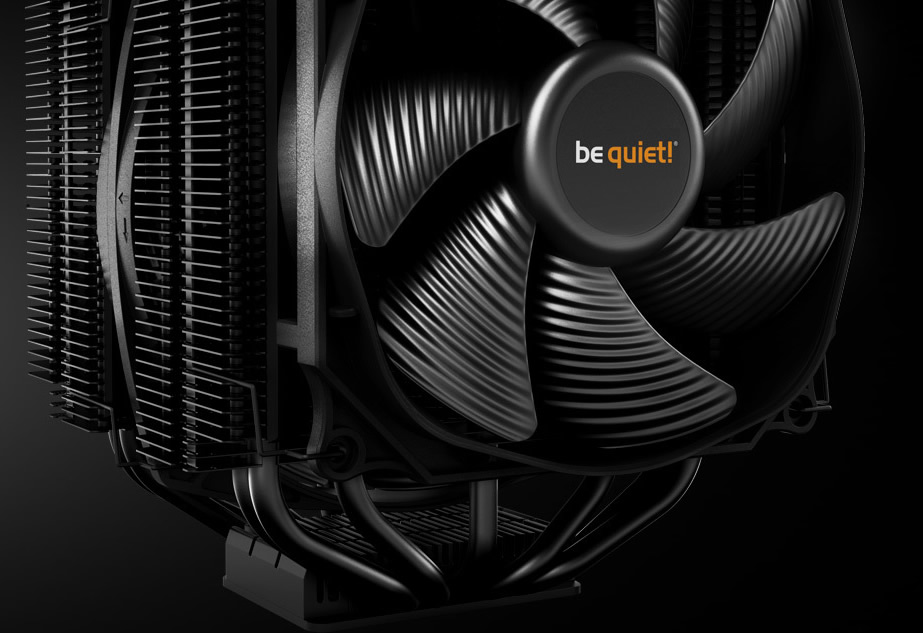

The two Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth six-pole motors and airflow-optimized fan blades. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. Decoupled fan mounting with vibration-isolating elements on the heat sink.

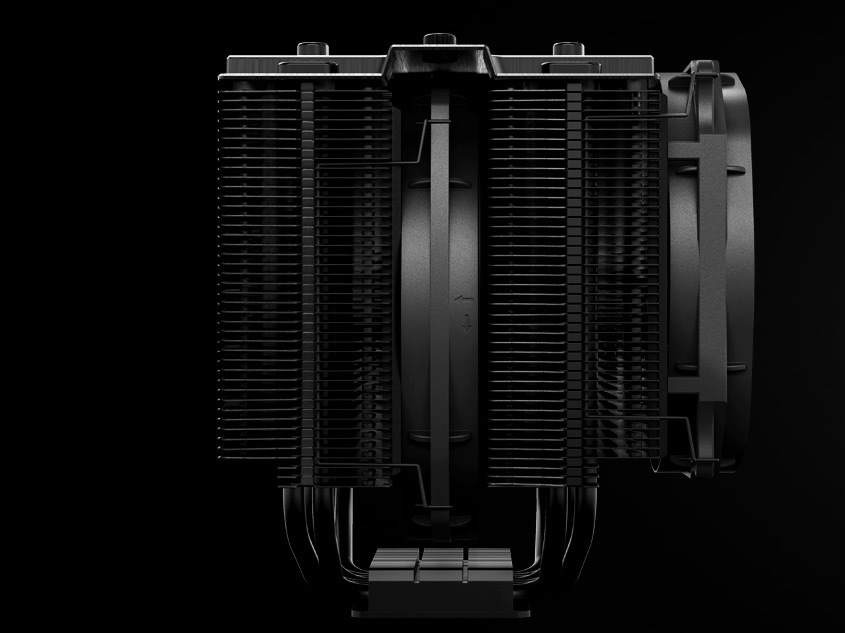

Dark Rock Pro TR4 is equipped with seven advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.

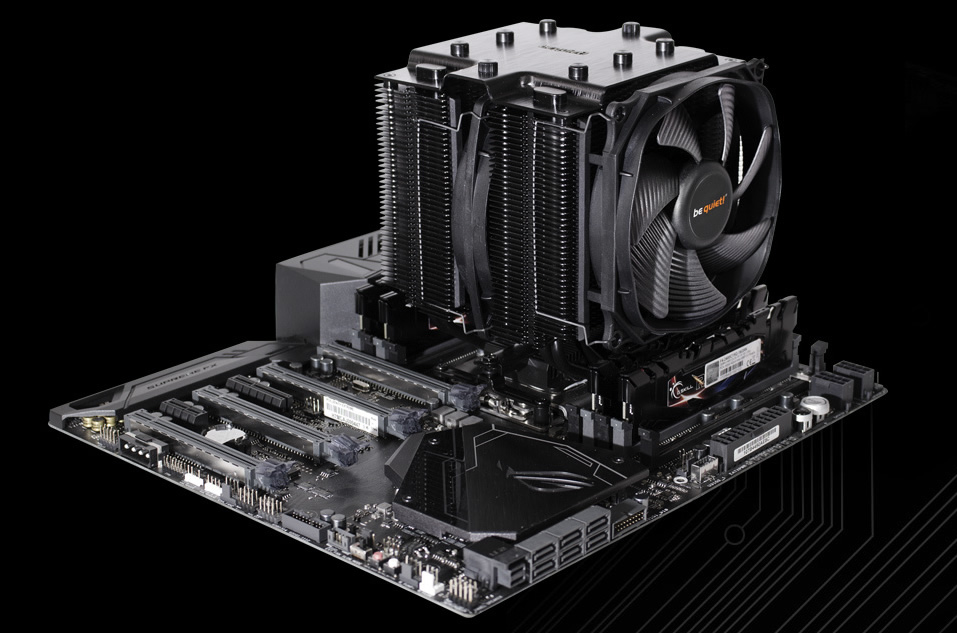

Dark Rock Pro TR4 contains two aluminum heat sinks. The cutouts provided enhance its RAM compatibility. Two fans are pre-installed. It is also possible to add another 120mm fan for even better cooling.

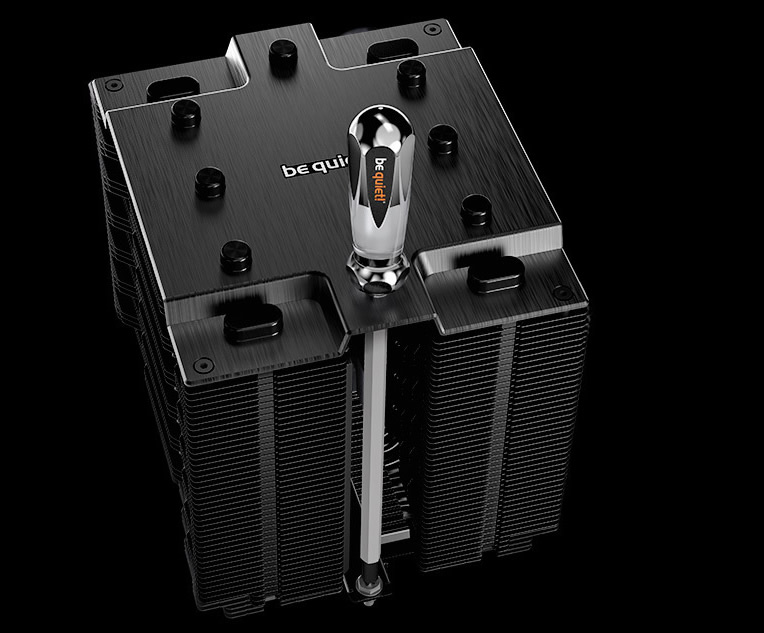

The mounting kit for the Dark Rock Pro TR4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminum top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.
| Model | Dark Rock Pro TR4 |
| Overall dimensions without mounting material (L x W x H), (mm) | 145.7 x 136 x 162.8 |
| Total weight (kg) | 1,18 |
| TDP (W) | 250 |
| Socket compatibility | AMD: TR4 |
| Fan model, number | 1x Silent Wings 3 120mm PWM, 1x Silent Wings 135mm PWM |
| Decoupled fan mounting | Yes |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 12.8 / 17.9 / 24.3 |
| Dimensions (L x W x H), (mm) | 162.8 x 136 x 120.7 |
| Number of fins | 90 |
| Fin material | Aluminum |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 7 / 6 |
| Surface treatment | Aluminum / black ceramic spray painted |
| Fan dimensions (mm) | 135 x 135 x 22 / 120 x 120 x 25 |
| +SilentWings | Yes |
| Speed @ 100% PWM /12V (rpm) | 1,200 / 1,500 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.08 / 0.08 |
| Input power (W) | 0.96 / 0.96 |
| Connector | 4-pin PWM |
| Cable length (mm) | 220 / 220 |
| Lifespan (h / 25°C) | 300,000 |
| Thermal grease (g) | Corning TC-5121C / 2 |
| Mounting set | AMD TR4 |
| Y-Cable | Yes |
| User manual languages | DE, EN, FR, ES, PL, RU |
| Warranty (Years) | 3 |
| International hotline / free of charge | Yes / DE, FR |
| Article number | BK023 |
| EAN code | 4260052186985 |
| Dimensions, package (L x W x H), (mm) | 181 x 205 x 212 |
| Gross weight, package (kg) | 1.58 |
| Pieces per packaging unit | 12 |
| Dimensions, shipping box (L x W x H), (mm) | 427 x 561 x 459 |
| Gross weight, shipping box (kg) | 20.75 |
