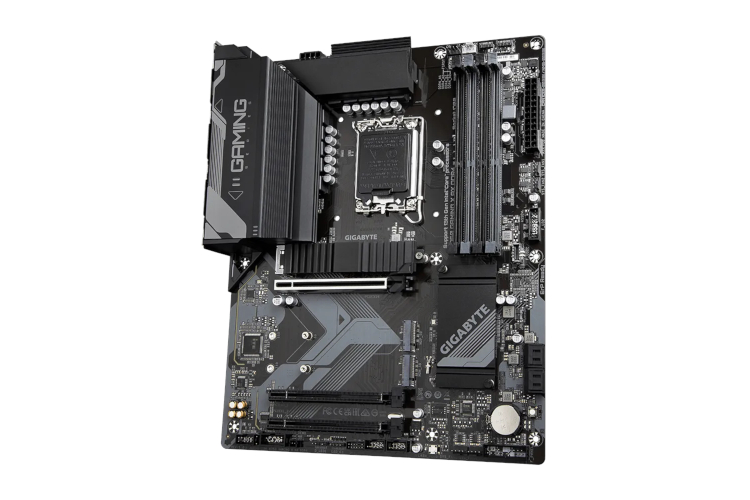

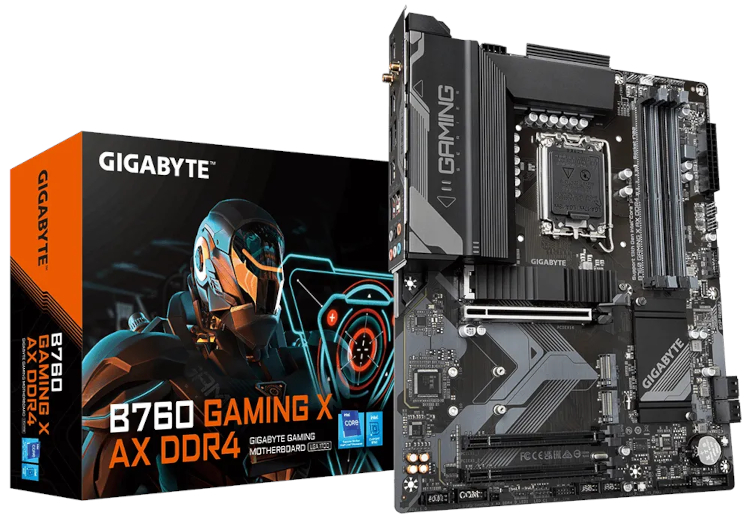

B760 GAMING X AX DDR4, ATX, LGA1700, DDR4, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16, 3 x M.2, 2.5GB LAN, WIFI 6E
£179.99 inc vat
£149.99 ex vat
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
| CPU Support | 13th Gen Intel Core processors 12th Gen Intel Core processors |
| Chipset | Intel B760 |
| Memory Support | 4 x DDR4 memory slots supporting up 128GB Dual Channel Technology Supports up to 3200Mhz non-ECC, un-buffered memory Supports memory overclocking up to 5333MHz+ NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 Speed) 2 x PCIe 3.0 x16 (x1 Speed) |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 3 x M.2 Key M, 2280/22110 (PCIe 4.0 x4 Mode) |
| RAID | 0/1/5/10 |
| USB Rear I/O | 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 5 x USB 2.0 Type-A |
| USB Internal Connectors | 1 x USB 3.2 Gen 2 Type-C header (Supports 1 x USB 3.2 Gen 2 Type-C) 1 x USB 3.2 Gen 1 header (Supports up to 2 x USB 3.2 Gen 1 Type-A) 2 x USB 2.0 headers (Supports up to 4 x USB 2.0) |
| Thunderbolt | N/A |
| RGB LED Connectors | 2 x addressable LED strip header 2 x RGB LED strip header |
| Audio | Realtek HD Audio Codec 8-Channel (7.1) HD Audio |
| LAN | 1 x Realtek 2.5GB LAN |
| WIRELESS | Wi-Fi 6E WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Back Panel Connectors | 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks |
| Internal Connectors | Fan and Cooling Connectors 1 x CPU Fan 1 x CPU fan/water cooling pump header 3 x System Fan 1 x system fan/water cooling pump header Power Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector Storage Connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB Headers 1 x USB 3.2 Gen 2 Type-C header (Supports 1 x USB 3.2 Gen 2 Type-C) 1 x USB 3.2 Gen 1 header (Supports up to 2 x USB 3.2 Gen 1 Type-A) 2 x USB 2.0 headers (Supports up to 4 x USB 2.0) Miscellaneous 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX 305mm x 244mm |
