X670E AORUS XTREME, E-ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x16, 4 x M.2, 6 x SATA, 1 x 10Gb LAN, WiFi 6E, HDMI, ARGB
£793.55 inc vat
£661.29 ex vatOr £34.28 for 24 months
with 10% deposit of £79.36
Order Code: GIG-X67EAX
Manf.Code: X670E AORUS XTREME

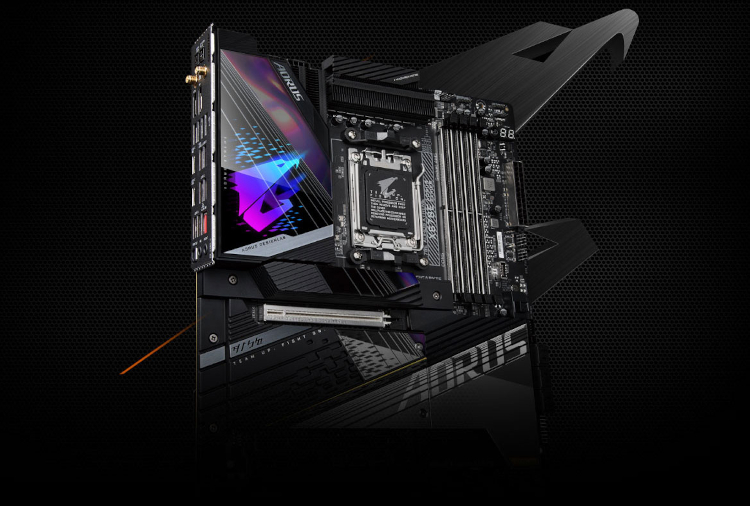

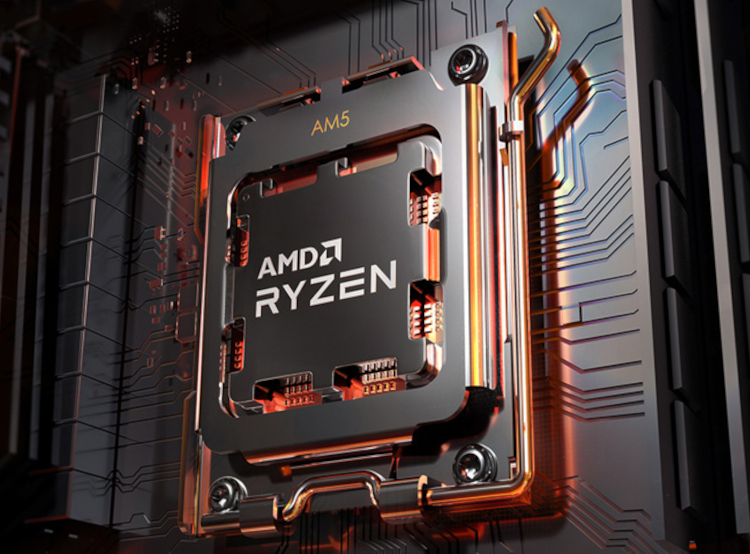

Get ready to usher in the new age of AM5 overclocking with AMD X670 motherboards and AMD Ryzen 7000 Series processors
With the fast pace of technology changes, GIGABYTE follows with the latest trends and provides customers with advanced features and the latest technologies. GIGABYTE motherboards come with an upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming needs.
To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboards equip the best VRM design ever built with the highest quality components.
PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge SSDs and GPUs released in the next few years to their full capability.

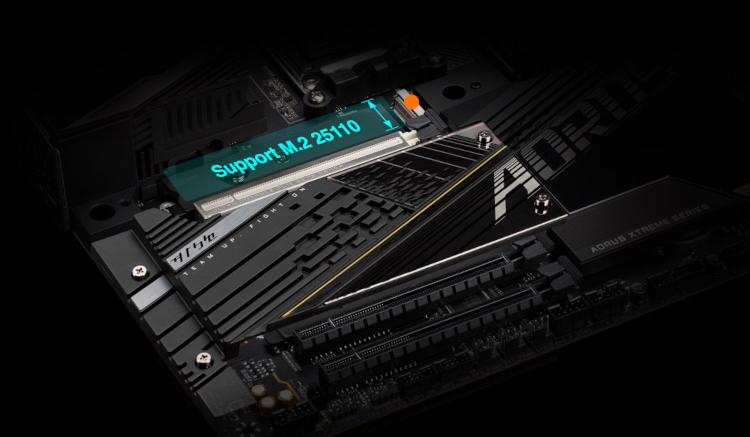

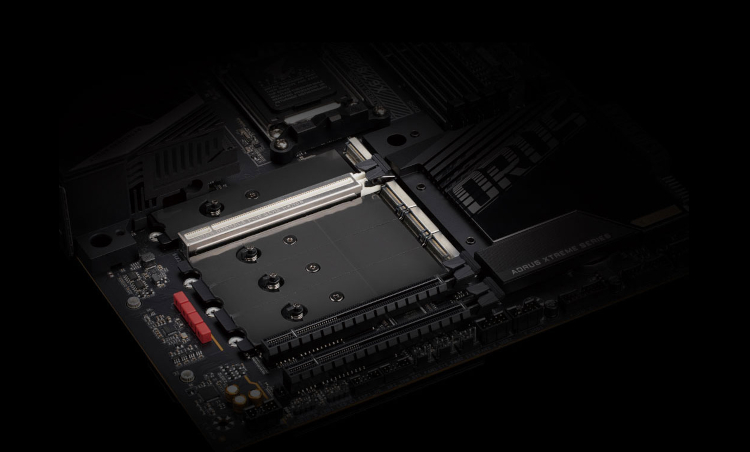

PCIe 5.0 x4 M.2 Slot supports the latest M.2 25110 form factor. Reinforced PCIe 5.0 M.2 connectors with metal shielding to provide higher strength.
The new generation, GIGABYTE's exclusive stainless-steel PCI-e shielding becomes 20% wider providing reinforced tensile strength.

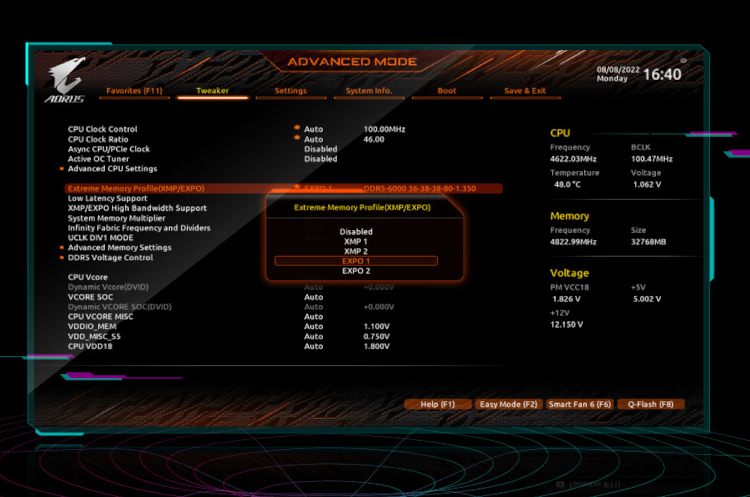

GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.

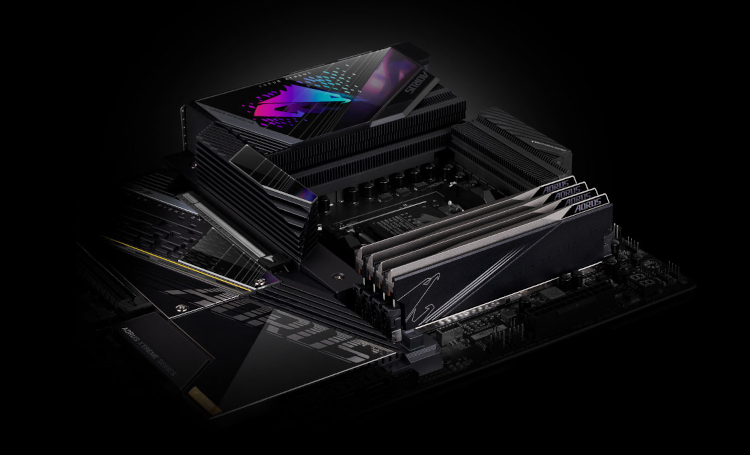

GIGABYTE Motherboards Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
GIGABYTE's new generation Fins-Array III delivers the ultimate thermal performance by using Extended Irregular fins to fill all available space and vastly increases surface area. A piece of Fins-Array III heatsink surface area is larger than 2 full size ATX motherboard PCB, therefore it tremendously boost thermal efficiency and heat exchange performance.

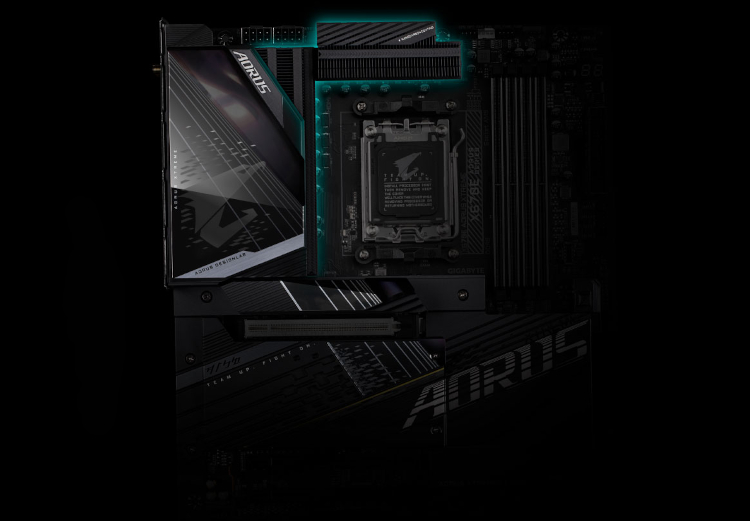

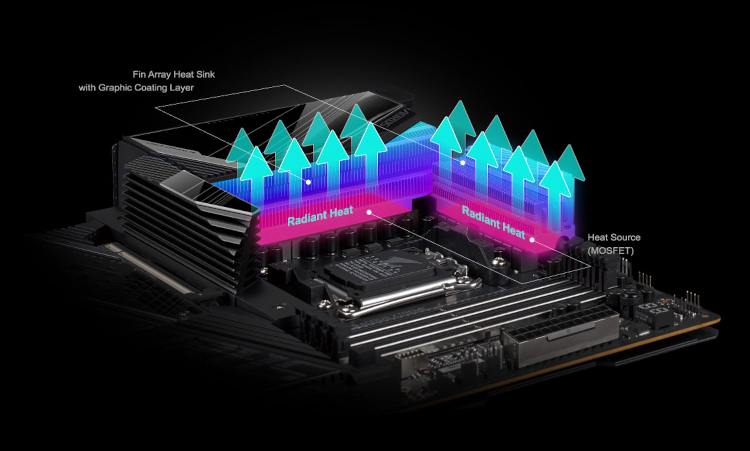

As CPUs get more powerful, VRM modules get hotter under ultra high performance. Being the first adopters among industry using NanoCarbon as coating material to enhance thermal radiation speed up heat dissipation. Nanocarbon is coated onto the heatsink through electrostatic adhesion. The coating material covers the entire finned heatsink with 200µm in thickness. In that way, heat is dissipated more quickly. The tests show 10% cooler with the NanoCarbon coating.

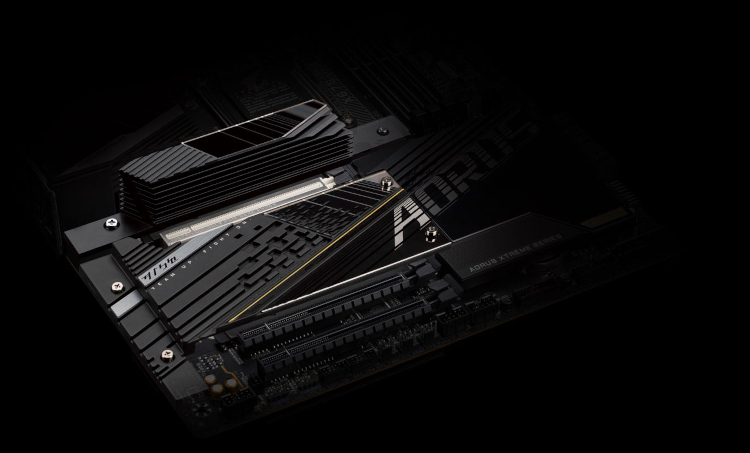

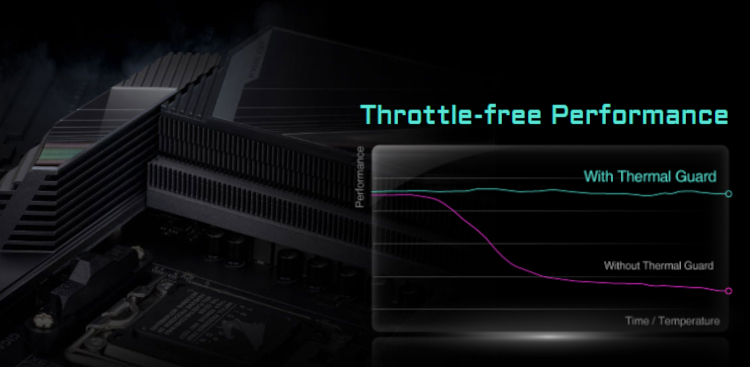

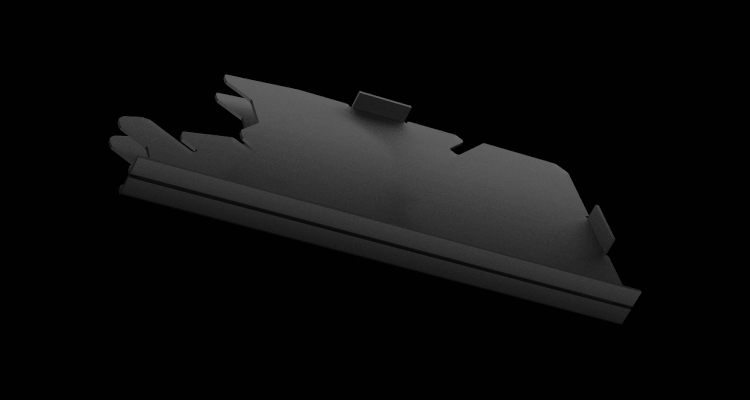

M.2 Thermal Guard III constructed with 9X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under heavy workload.The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency.

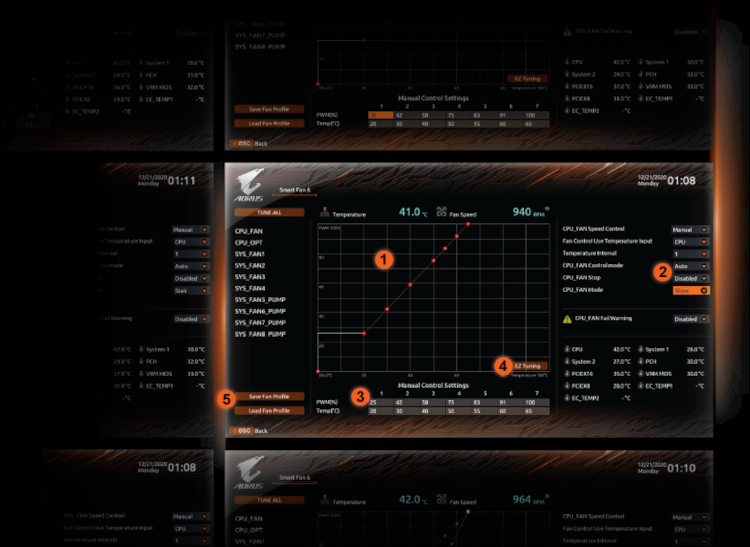

Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.

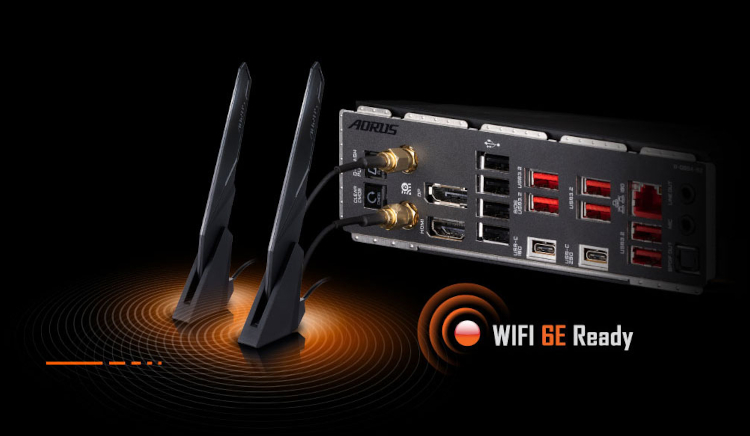

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

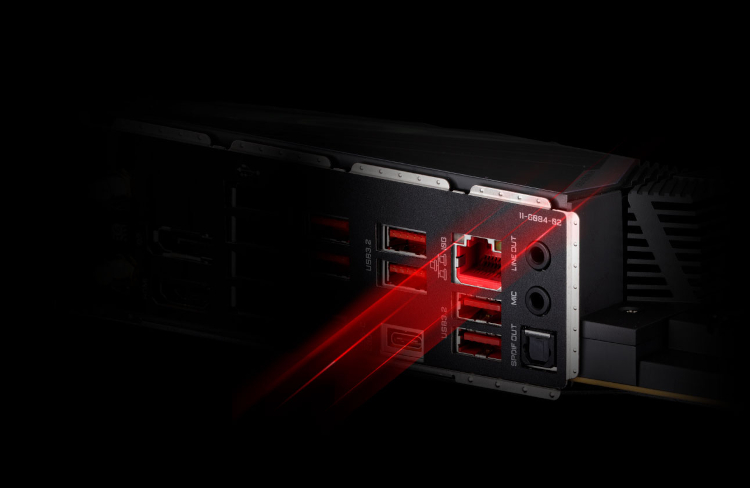

The Marvell® AQtion AQC113C is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.

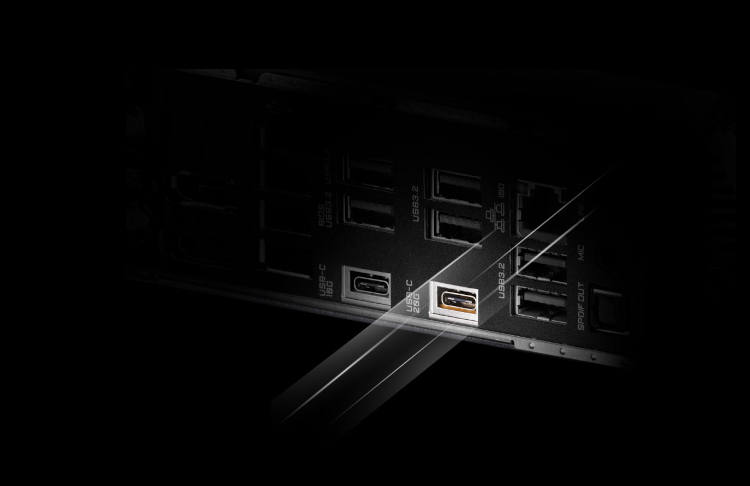

Featuring USB 3.2 Gen 2x2 design which is double the performance of the previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

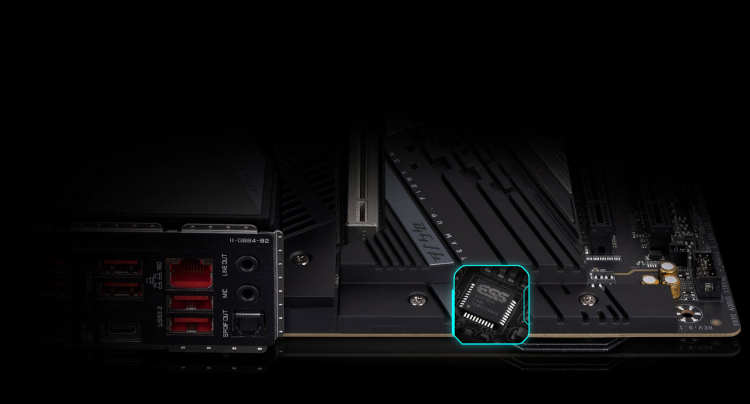

Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever. ESS SABRE reference DAC (ESS 9118). Hyperstream Dynamic Range (SNR 125dB). High-Res music (32bit, 192KHz PCM). Super low THD+N (THD+N -112db). To ensure a studio-quality experience, WIMA and Fine Gold capacitors are used to provide power to the overall system. Precision Audio Stream (TXC OSCILLATOR) provides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation. Includes ESSential USB DAC
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

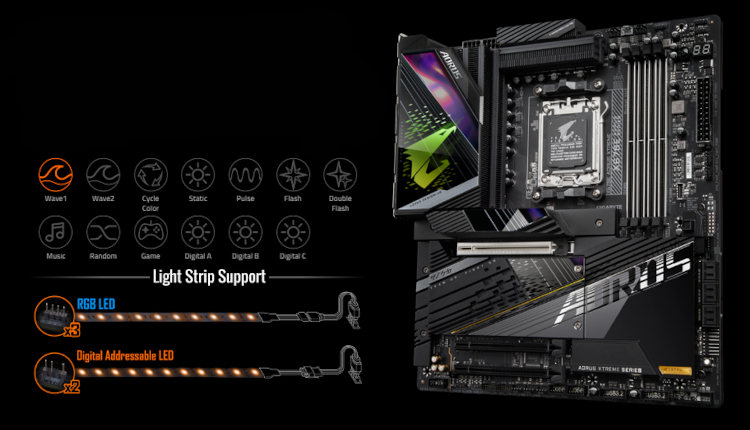

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

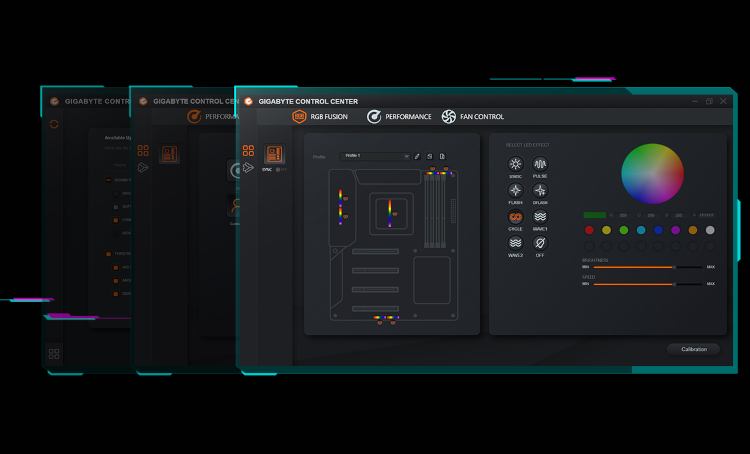

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

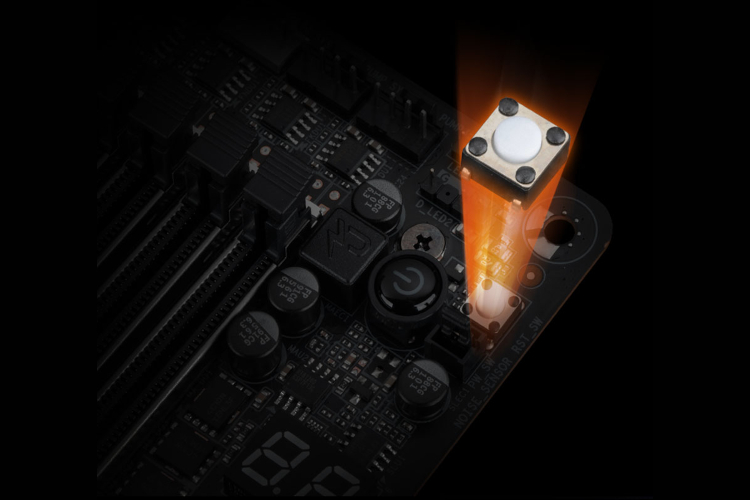

A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

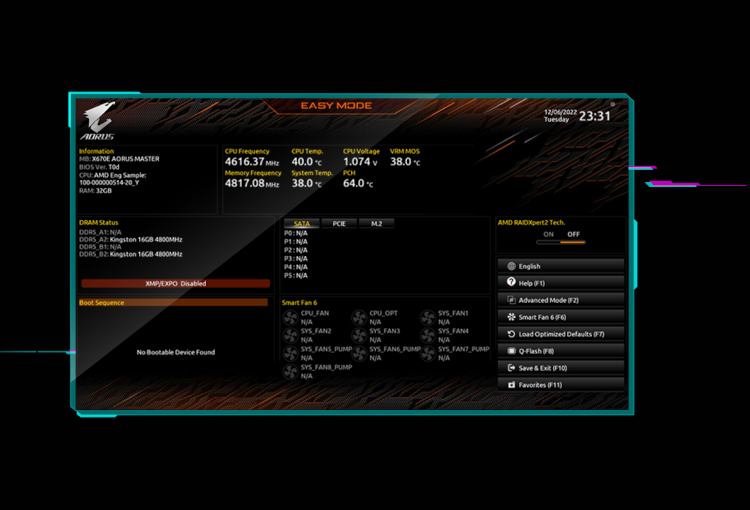

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

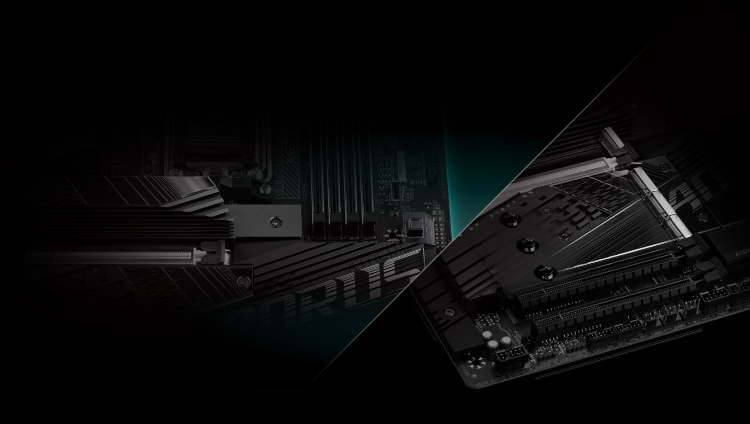

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable.
With PCIe EZ-Latch Plus you can use the latch mechanism to detach the graphics card from the PCIe slot easily!
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
|CPU Support||Supports AMD Ryzen 7000 Series Desktop Processors|
|Chipset||AMD X670E Chipset|
|Memory Support||4 x DDR5 memory slots supporting up 256GB
Dual Channel Technology
Supports up to 5200Mhz ECC/non-ECC, un-buffered memory
NOTE: Actual Memory data rate varies on CPU
|Expansion Slots||1 x PCIe 5.0 (x16 Speed)
1 x PCIe 4.0 x16 (x4 Speed)
1 x PCIe 3.0 x16 (x2 Speed)
|Onboard Graphics||1 x HDMI
1 x DisplayPort 1.4
1 x USB Type-C port
NOTE: Display support varies on CPU
|Storage||6 x SATA 6Gb/s
1 x M.2 Key M, 25110/2280, (PCIe 5.0 x4 Mode)
3 x M.2 Key M, 22110/2280, (PCIe 5.0 x4 Mode)
|RAID||SATA Devices: RAID 0/1/10
NVMe Devices: RAID 0/1/10
|USB Rear I/O||1 x USB 3.2 Gen2x2 Type-C|
1 x USB 3.2 Gen2 Type-C
6 x USB 3.2 Gen2 Type-A
4 x USB 2.0 Type-A
|USB Internal Connectors||1 x USB 3.2 Gen2x2 Type-C
4 x USB 3.2 Gen 1 Type-A (2 per header)
4 x USB 2.0 Type-A (2 per header)
|Thunderbolt||1 x THB_U4 add-in card connector|
|RGB LED Connectors||1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
|Audio||Realtek ALC1220-VB Codec
ESS ES9118 DAC chip
8-Channel (7.1) HD Audio
Support for DTS:X® Ultra
Support for S/PDIF Out
|LAN||1 x Marvell AQtion AQC113C 10Gbps LAN controller|
|WIRELESS||Intel Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

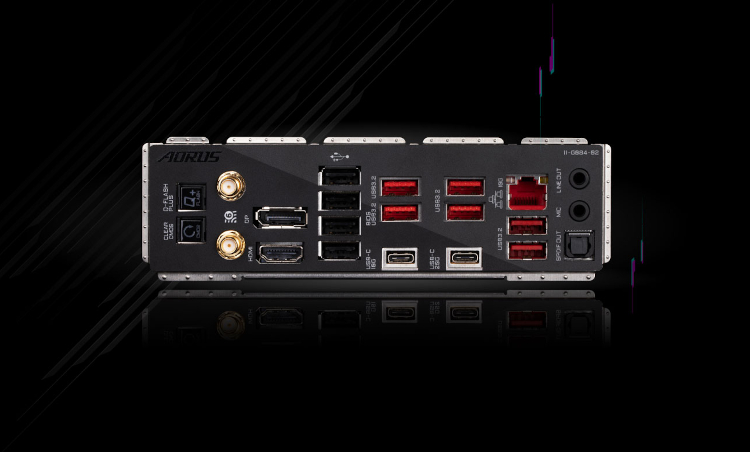

|Back Panel Connectors||1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI 2.0 port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 2 support
6 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
|Internal Connectors||1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Voltage Measurement Points
305mm x 269mm
