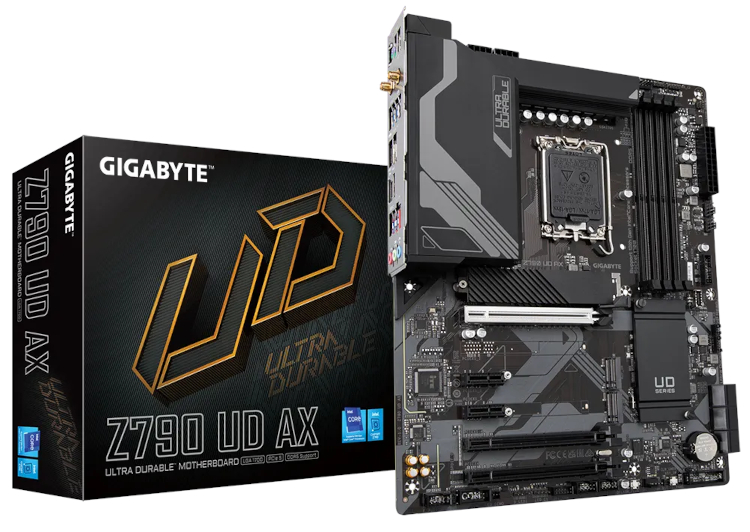

GIGABYTE Z790 UD AX Intel Z790 Chipset Socket 1700 ATX Motherboard - Z790 UD AX

GIGABYTE Z790 UD AX Intel Z790 Chipset (Socket 1700) ATX Motherboard overview

Z790 UD AX

Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel Core processors

Unparalleled Performance: Twin 16+1+1 Phases Digital VRM Solution

Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors with M.2 Thermal Guard

Advanced Thermal Design: To Ensure VRM Power Stability

Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity: DP, HDMI, Front USB-C 5Gb/s, Rear USB-C 20Gb/s

Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

DIY Features: EZ-Latch Plus PCIe 5.0 connector, Q-Flash Plus

CPU Support	13th Gen Intel Core processors 12th Gen Intel Core processors
Chipset	Intel Z790
Memory Support	4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 4800Mhz non-ECC, un-buffered memory Supports memory overclocking up to 7600MHz+ NOTE: Actual Memory data rate varies on CPU
Expansion Slots	1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 3.0 x16 (x1 Speed) 2 x PCIe 3.0 x1
Onboard Graphics	1 x HDMI 1 x DisplayPort NOTE: Display support varies on CPU
Storage	6 x SATA 6Gb/s 1 x M.2 Key M, 2280/22110, (PCIe 4.0 x4 Mode) 2 x M.2 Key M, 2280, (PCIe 4.0 x4 Mode)
RAID	0/1/5/10
USB Rear I/O	1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A
USB Internal Connectors	1 x USB 3.2 Gen 1 5Gbps Type-C 2 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header)
Thunderbolt	2 x Thunderbolt add-in card connectors
RGB LED Connectors	2 x addressable LED strip headers 2 x RGB LED strip headers
Audio	Realtek Audio Codec 8-Channel (7.1) HD Audio Support for S/PDIF Out
LAN	1 x Realtek 2.5GB LAN
WIRELESS	AMD Wi-Fi 6E WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Supports Bluetooth 5.2
Back Panel Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Internal Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor	ATX 305mm x 244mm
