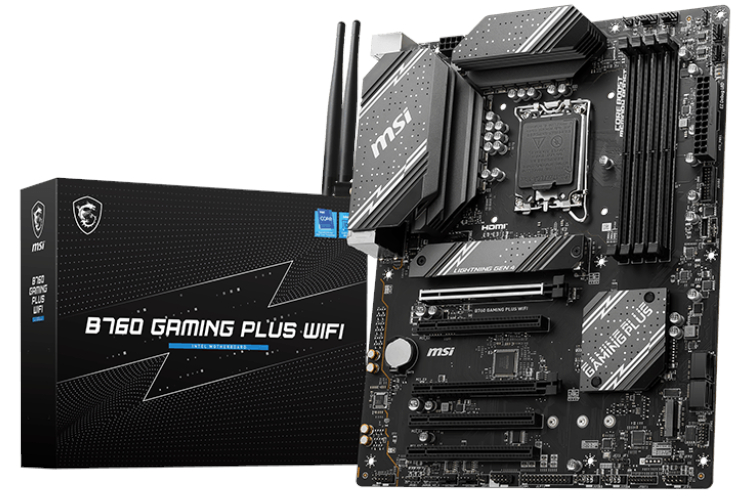

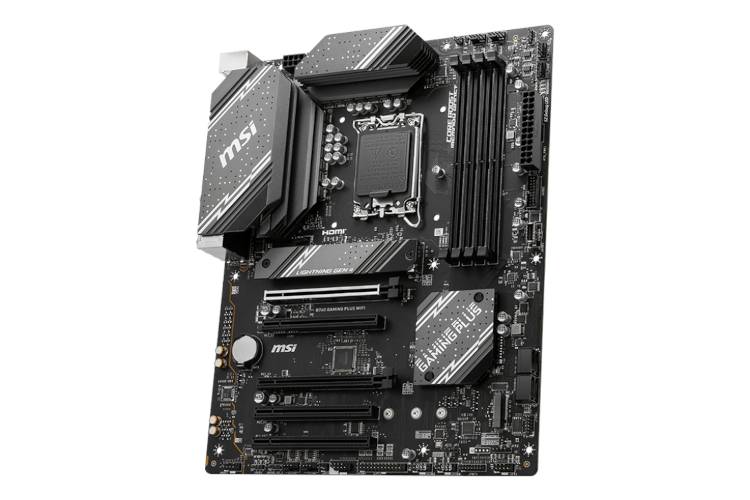

B760 GAMING PLUS WIFI, ATX, LGA1700, DDR5, 5 x PCIe 4.0 x16, 2 x M.2, 2.5GB LAN, WIFI 6E
£159.98
£139.99 inc vat
£116.66 ex vat
You save £19.99
B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
| CPU Support | 13th Gen Intel Core processors 12th Gen Intel Core processors |
| Chipset | Intel B760 |
| Memory Support | 4 x DDR5 memory slots supporting up 192GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports memory overclocking up to 6800MHz NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) 3 x PCIe 3.0 x16 (x1 Speed) |
| Onboard Graphics | 1 x HDMI 1 x DisplayPort NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 Key M, 2242/2260/2280/22110, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280, (SATA & PCIe 4.0 x4 Mode) |
| RAID | 0/1/5/10 |
| USB Rear I/O | 1 x USB 3.2 Gen 2 10Gbps Type-C 2 x USB 3.2 Gen 2 Type-A 4 x USB 2.0 Type-A |
| USB Internal Connectors | 1 x USB 3.2 Gen 1 5Gbps Type-C 2 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header) |
| Thunderbolt | 1 x TBT connector (JTBT, supports RTD3) |
| RGB LED Connectors | 2 x Addressable Gen 2 headers 1 x RGB LED header |
| Audio | Realtek ALC897 Codec 8-Channel (7.1) HD Audio Optical S/PDIF Out |
| LAN | 1 x Realtek 2.5Gbps LAN |
| WIRELESS | Intel Wi-Fi 6E Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Bluetooth v5.3 |
| Back Panel Connectors | 1 x DisplayPort 1.4 4 x USB 2.0 Type-A 2 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN Port 5 x HD Audio Connectors 1 x HDMI 2.1 Port 1 x USB 3.2 Gen 2 10Gbps Type-C 2 x Wi-Fi / Bluetooth Antenna 1 x Optical S/PDIF OUT 1 x Keyboard / Mouse Port |
| Internal Connectors | Fan and Cooling 1 x CPU Fan 1 x Pump Fan 5 x System Fan Power 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen1 Type C ports Miscellaneous 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 1x TPM pin header(Support TPM 2.0) 4x EZ Debug LED |
| Form Factor | ATX 305mm x 244mm |
