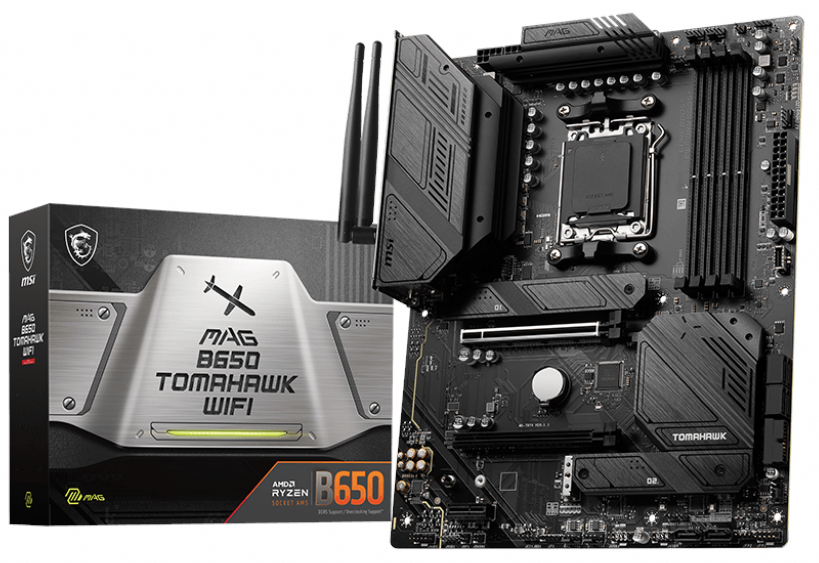

MAG B650 TOMAHAWK WIFI, ATX, AM5, DDR5, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 3 x M.2, 6 x SATA, 1 x 2.5 Gb LAN, Wi-Fi 6E, HDMI, Dport
£199.99
£189.98 inc vat
£158.32 ex vat
You save £10.01
| CPU Support | Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 4800Mhz ECC/non-ECC, un-buffered memory Supports Memoru Overclocking to 6600Mhz+ NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x HDMI 1 x DisplayPort NOTE: Display support varies on CPU |
| Storage | 6 x SATA 6Gb/s 3 x M.2 Key M, 2280/2260, (PCIe 4.0 x4 Mode) |
| RAID | SATA Devices: RAID 0/1/10 NVMe Devices: RAID 0/1 |
| USB Rear I/O | 1 x USB 3.2 Gen2x2 Type-C 3 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A |
| USB Internal Connectors | 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header) |
| Thunderbolt | N/A |
| RGB LED Connectors | 2 x Addressable V2 RGB LED connector 2 x RGB LED connector |
| Audio | Realtek ALC4080 Codec 8-Channel (7.1) HD Audio Support for S/PDIF Out |
| LAN | 1 x Realtek 2.5Gbps LAN controller |
| WIRELESS | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Back Panel Connectors | 1 x DisplayPort 1.4 1 x 2.5G LAN Port 2 x USB 2.0 Port 4 x USB 3.2 Gen 1 5Gbps Type-A 2 x Wi-Fi / Bluetooth Antenna 5 x HD Audio Connectors 1 x Flash BIOS Button 1 x HDMI™ 2.1 Port 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x Optical S/PDIF OUT |
| Internal Connectors | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 2 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2 Type C 4 x EZ Debug LED |
| Form Factor | ATX 304mm x 243mm |
