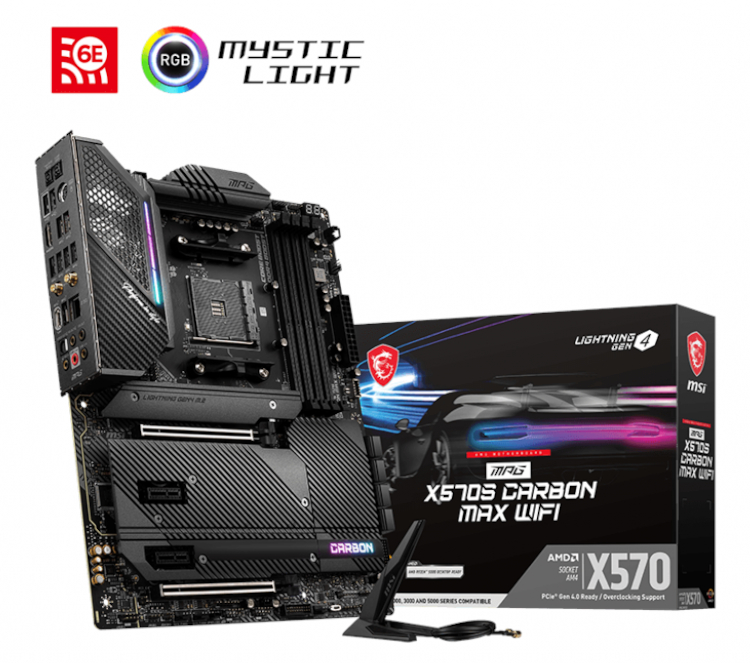

ATX, AM4, DDR4, 2 x PCIe 4.0/3.0 x16, 2 x PCIe x1, 4 x M.2, 6 x SATA, 1 x 2.5 Gb LAN, Intel Wi-Fi 6E, HDMI, Mystic Light ARGB
£231.41 inc vat
£192.84 ex vat
| CPU Support | Supports AMD Ryzen 5000 Series AMD Ryzen 5000 G-Series AMD Ryzen 4000 G-Series AMD Ryzen 3000 Series AMD Ryzen 3000 G-Series AMD Ryzen 2000 Series AMD Ryzen 2000 G-Series |
| CPU Socket | AM4 |
| Chipset | AMD X570 |
| Memory Support | 4 x DDR4 memory slots supporting up 128GB Supports up to 3200Mhz Supports Memory Overclock up to 5300Mhz Support Dual-Channel mode Support non-ECC, un-buffered memory Supports A-XMP OC Mode |
| Expansion Slots | 1 x PCIe 3.0/4.0 x16* (x16 Speed) 1 x PCIe 3.0/4.0 x16* (x4 Speed) 2 x PCIe 3.0 x 1 *NOTE: PCIe 4.0 only supported by AMD Ryzen 5000 & 3000 Series |
| Onboard Graphics | 1 x HDMI |
| Storage | 6 x SATA 6Gb/s 2 x M.2 Key M, 2242/2260/2280/22110 (SATA & PCIe 4.0/3.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280 (SATA & PCIe 4.0/3.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280 (PCIe 4.0/3.0 x4 Mode) NOTE: PCIe 4.0 only supported by AMD Ryzen 5000 & 3000 Series |
| RAID | RAID 0 RAID 1 RAID 10 |
| USB Rear I/O | 1 x USB 3.2 Gen 2 Type-C 3 x USB 3.2 Gen2 Type-A 4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A |
| USB Internal Connectors | 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header) |
| Thunderbolt | NA |
| RGB LED Connectors | 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR LED connector |
| Audio | Realtek ALC4080 Codec |
| LAN | 1 x Realtek RTL8125B 2.5GB LAN |
| WIRELESS | Intel Wi-Fi 6E AX210
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA |
| Back Panel Connectors | 1 x Clear CMOS Button 1 x Keyboard / Mouse 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN 5 x Audio Connectors 1 x Flash BIOS Button 2 x USB 2.0 1 x HDMI 4 x USB 3.2 Gen 1 5Gbps Type-A 2 x Wi-Fi / Bluetooth 1 x USB 3.2 Gen 2 10Gbps Type-C 1 x Optical S/PDIF Out |
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 8 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 2-pin Thermal sensor connector 1 x TPM module connector 1 x Clear CMOS jumper 4 x EZ Debug LED 1 x 2-Digit Debug Code LED 1 x EZ LED Control switch |
| Form Factor | ATX 305mm x 244mm |
Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.
Get your order delivered the next working day for £5.99, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared.
Get your order delivered the next working day before 12:00pm for £10.98, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared. Some orders if via PayPal and the first customer order may not clear in time.
If you need your order at the weekend, for £12.58, you can specify the day you wish to have it delivered to you, Saturday or Sunday providing your order has been placed by 17:00 on the Friday before.
Economy delivery is available on all orders of any value being shipped within the UK.
Order Code: MSI-X57CMW
£231.41 inc vat
£192.84 ex vat
