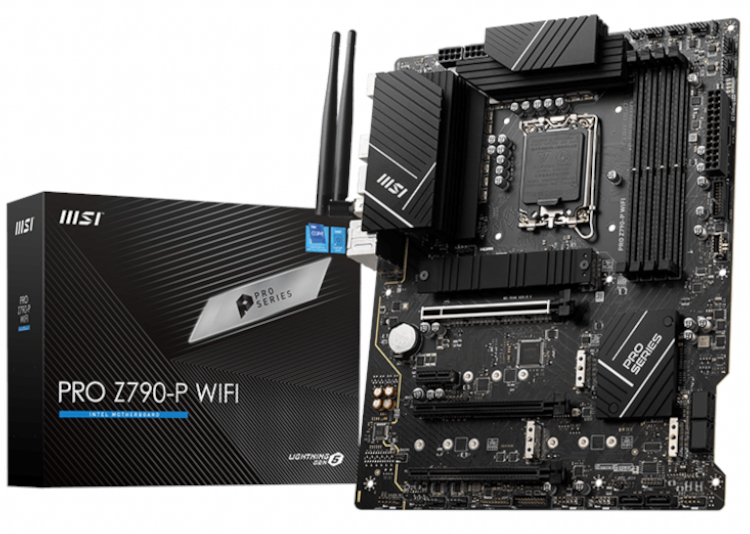

PRO Z790-P WIFI, ATX, LGA1700, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, 4 x M.2, 2.5GB LAN, WIFI 6E
£219.98 inc vat
£183.32 ex vat
| CPU Support | 14th Gen Intel Core processors 13th Gen Intel Core processors 12th Gen Intel Core processors |
| Socket | Intel LGA 1700 |
| Chipset | Intel Z790 |
| Memory Support | 4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports memory overclocking up to 7000MHz+ NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 3.0 x16 (x1 Speed) 1 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x HDMI 1 x DisplayPort NOTE: Display support varies on CPU |
| Storage | 6 x SATA 6Gb/s 1 x M.2 Key M, 2242/2260/2280/22110, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280, (PCIe 4.0 x4 Mode) 2 x M.2 Key M, 2242/2260/2280, (SATA & PCIe 4.0 x4 Mode) |
| RAID | 0/1/5/10 |
| USB Rear I/O | 1 x USB 3.2 Gen 2x2 20Gbps Type-C 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A |
| USB Internal Connectors | 1 x USB 3.2 Gen 2 10Gbps Type-C 4 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header) |
| Thunderbolt | 1 x TBT connector (JTBT, supports RTD3) |
| RGB LED Connectors | 2 x Addressable V2 LED headers 1 x RGB LED header |
| Audio | Realtek ALC897 Codec 8-Channel (7.1) HD Audio |
| LAN | 1 x Intel 2.5GB LAN |
| WIRELESS | Intel Wi-Fi 6E Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Back Panel Connectors | 1 x Keyboard / Mouse 1 x DisplayPort 4 x USB 2.0 1 x 2.5G LAN 2 x Wi-Fi / Bluetooth Antenna 6 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI 2 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 1 x USB 3.2 Gen 2 10Gbps (Type-A) |
| Internal Connectors | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x TBT connector (JTBT, supports RTD3) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 4 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2 Type C 4 x EZ Debug LED |
| Form Factor | ATX 305mm x 244mm |
